Pinout Values and Diagnostic Parameters




ECU Diagnosis Information: IPDM E/R

Reference Value

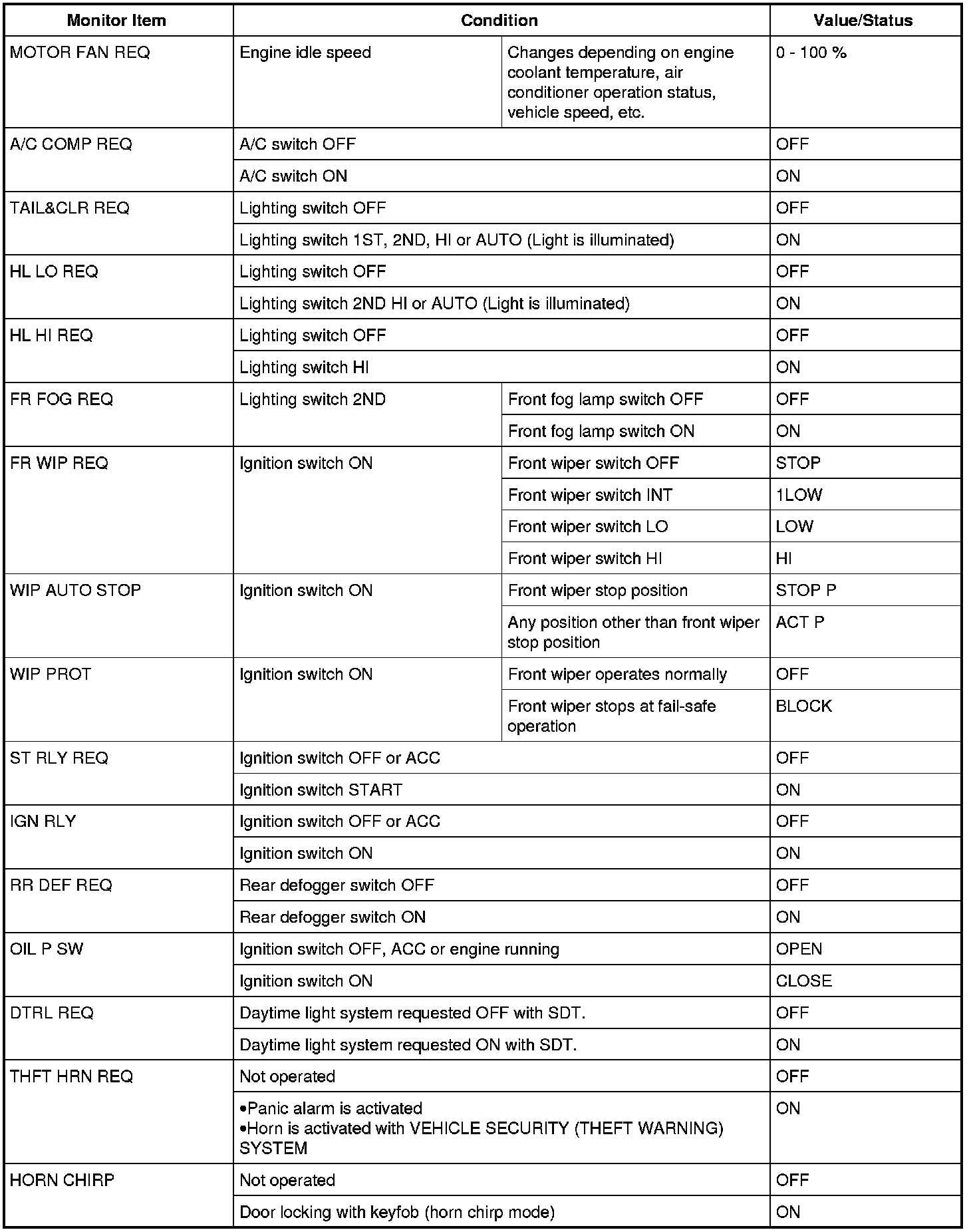

Values On the Diagnosis Tool

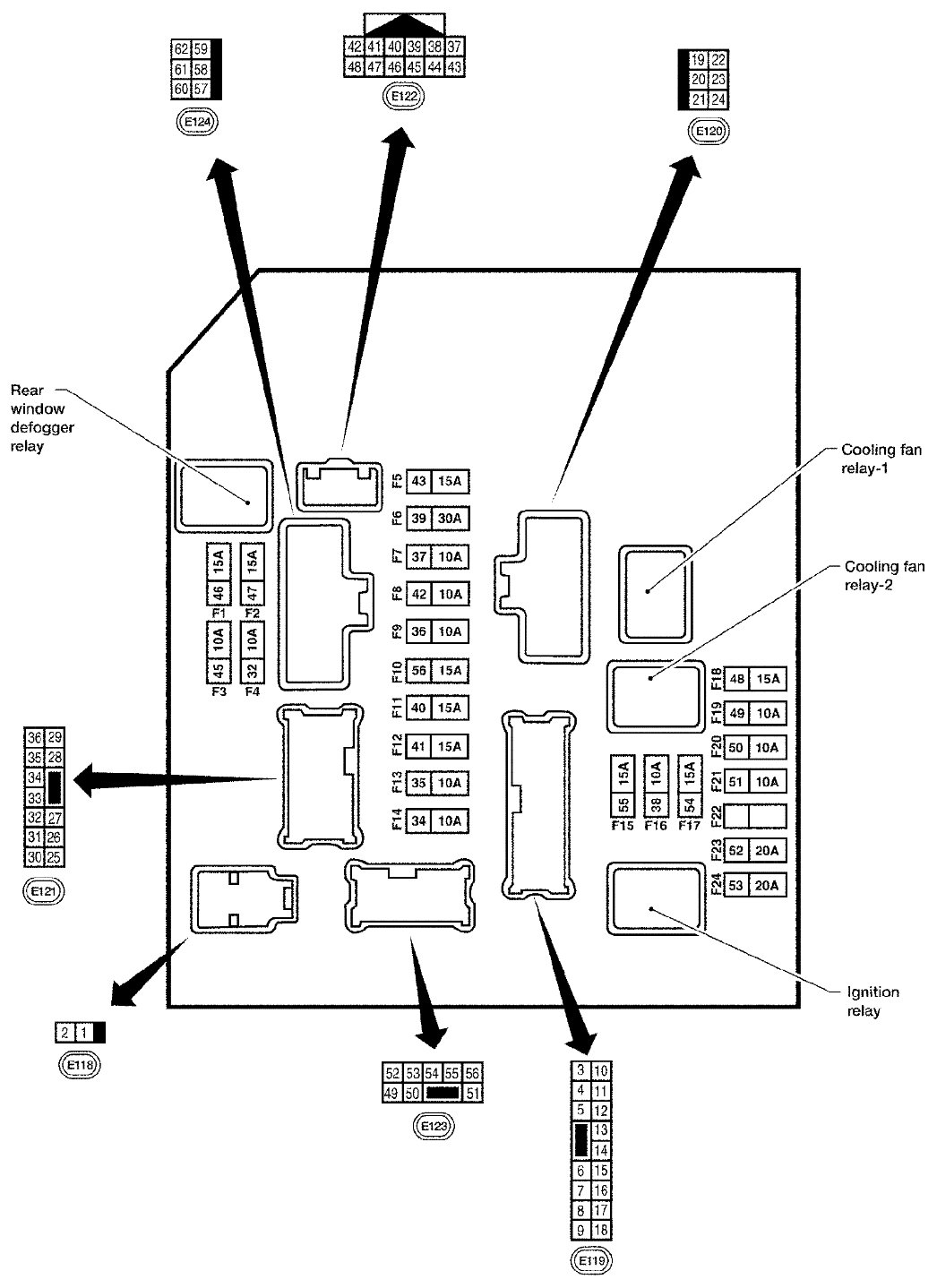

Terminal Layout

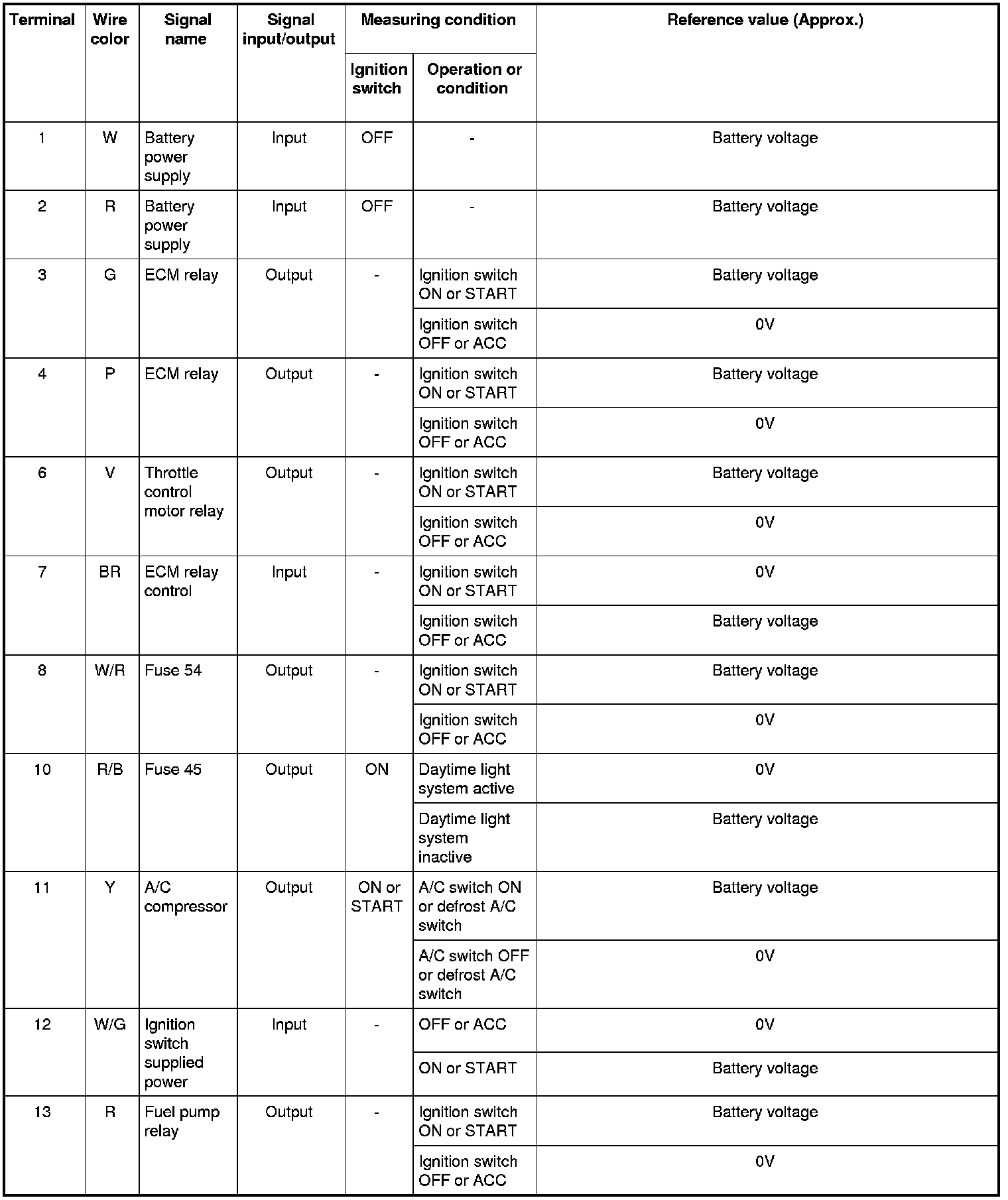

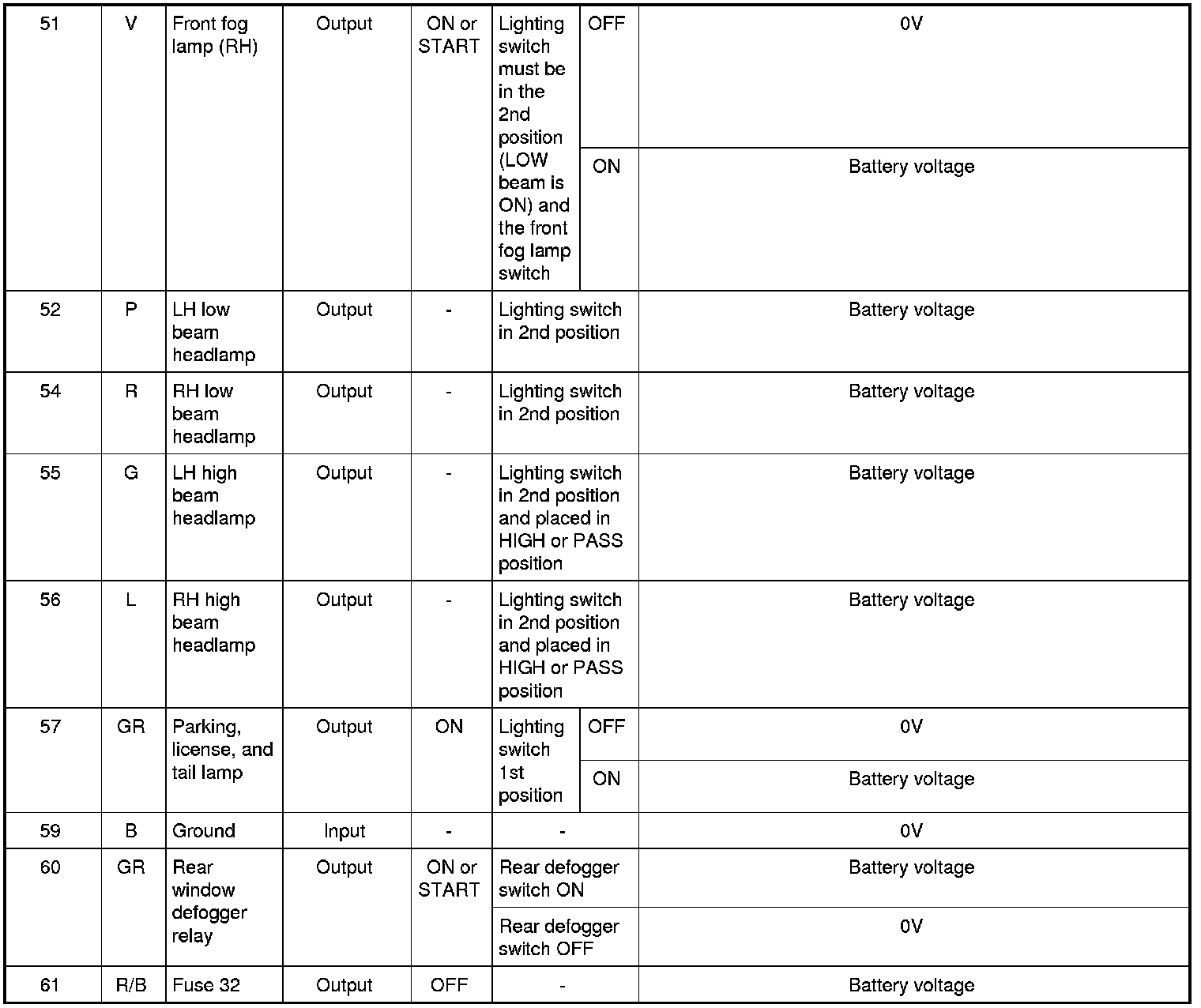

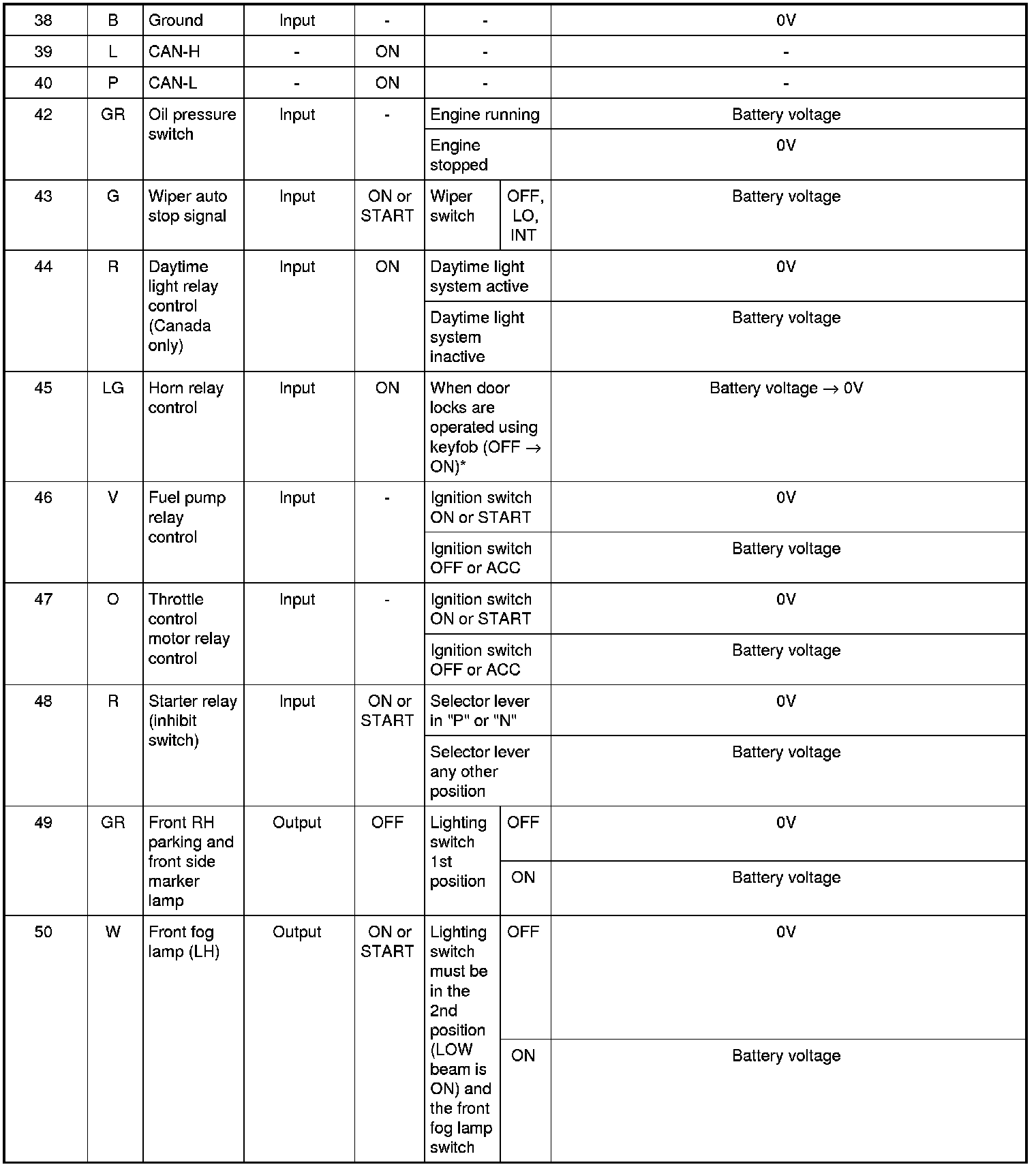

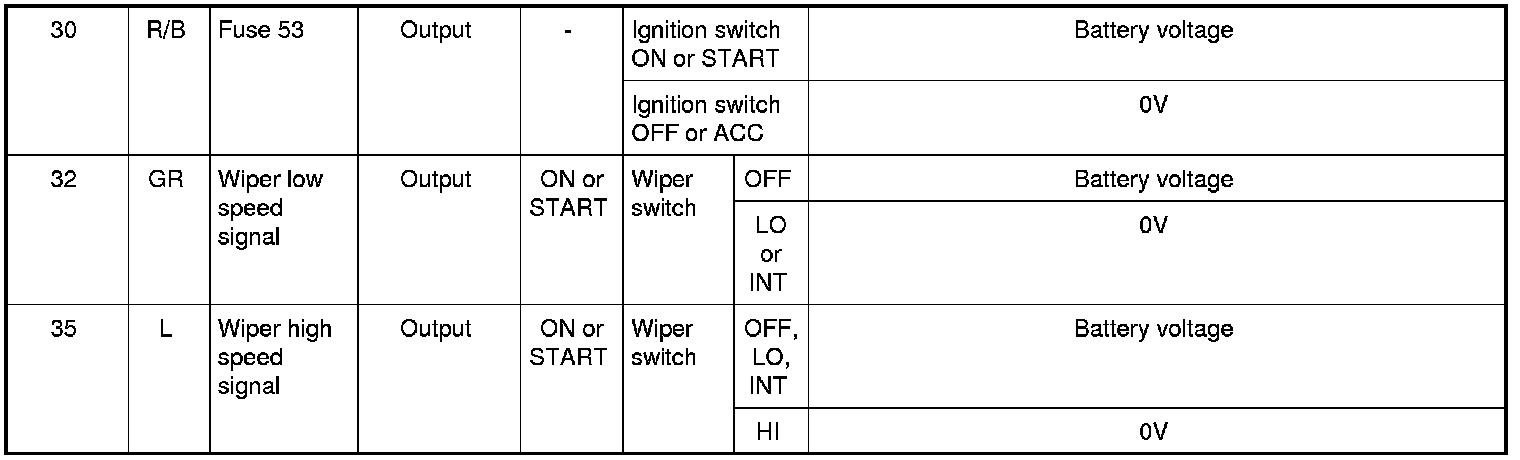

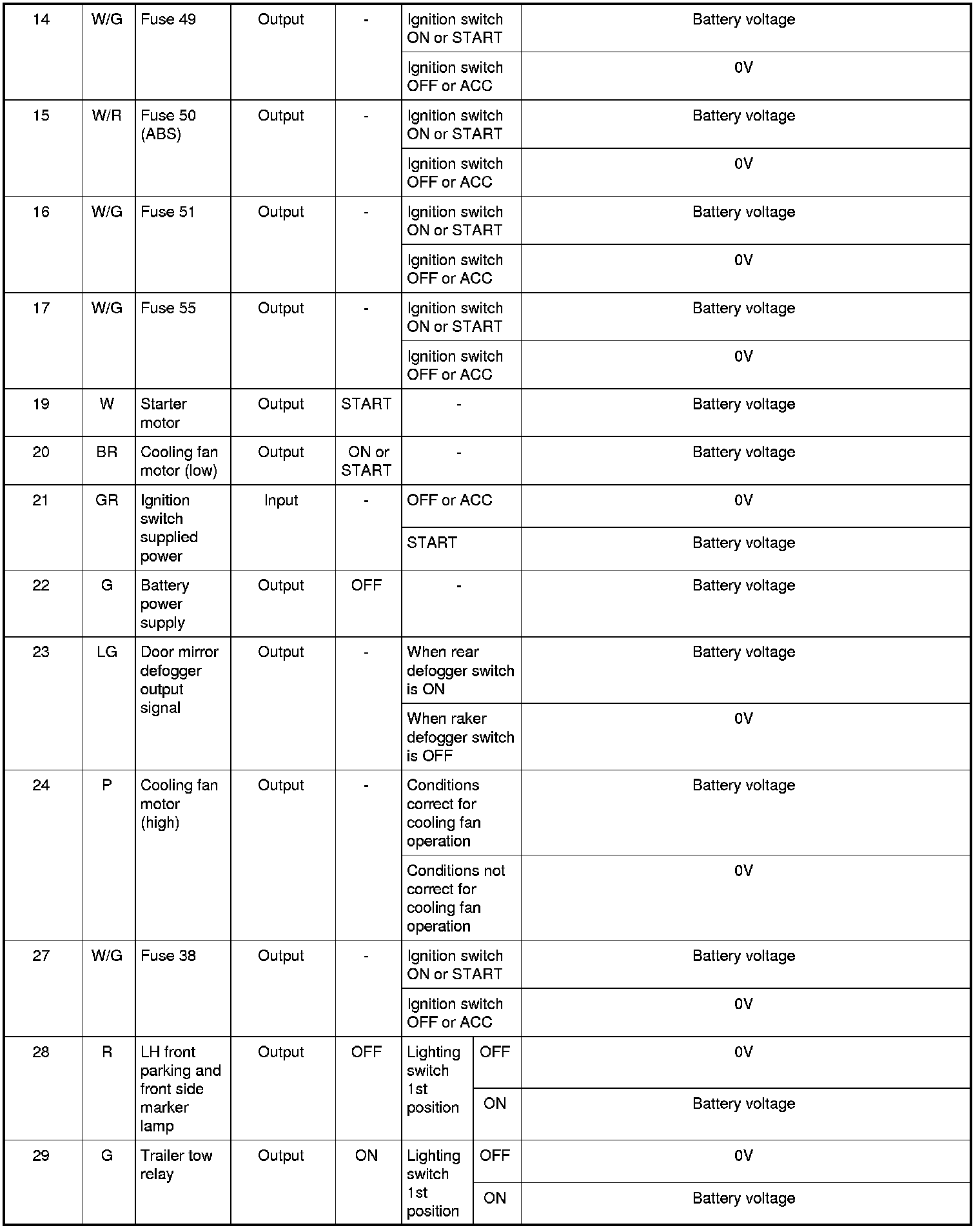

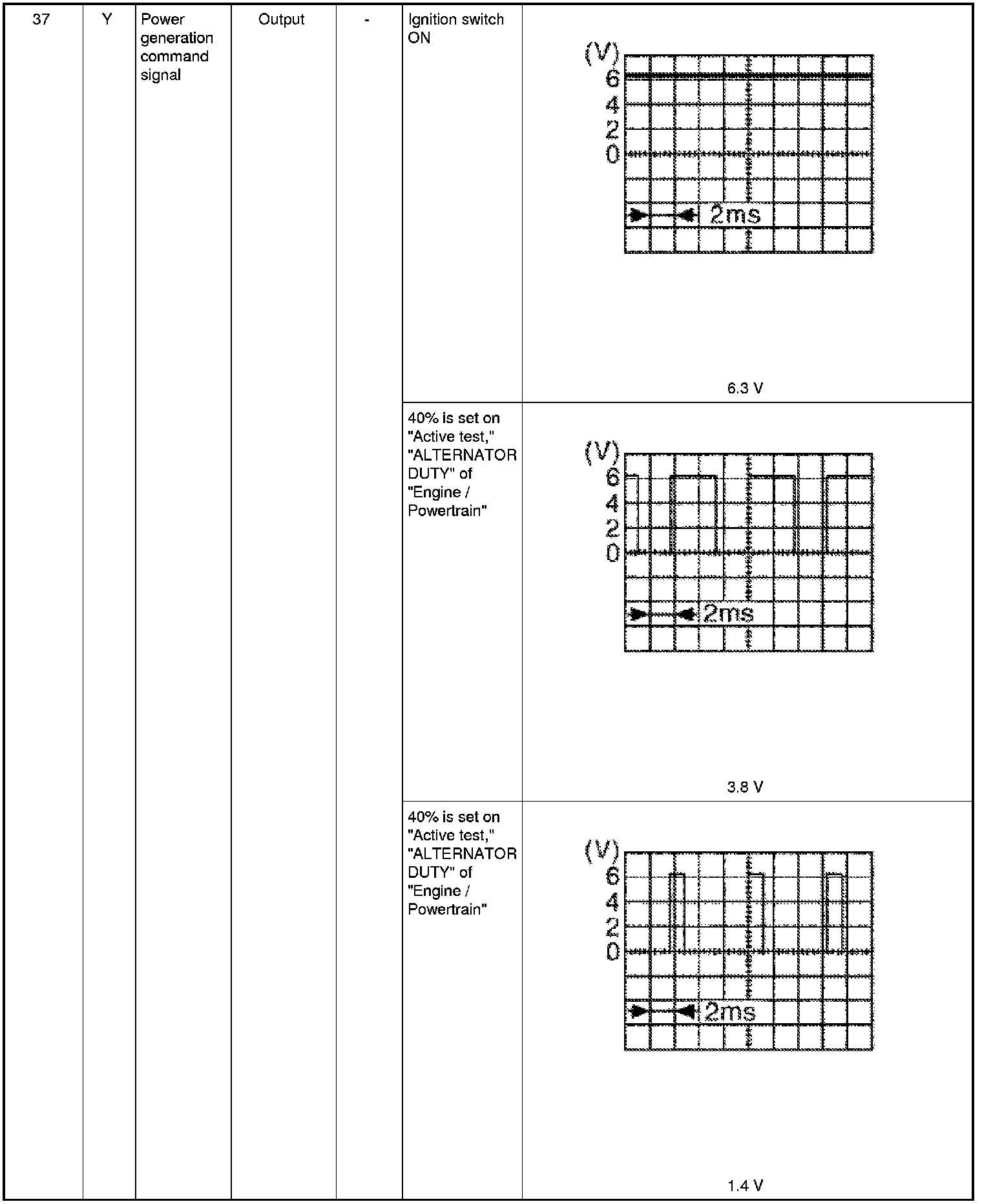

Physical Values

Physical Values

























*: When horn reminder is ON
