Charging System

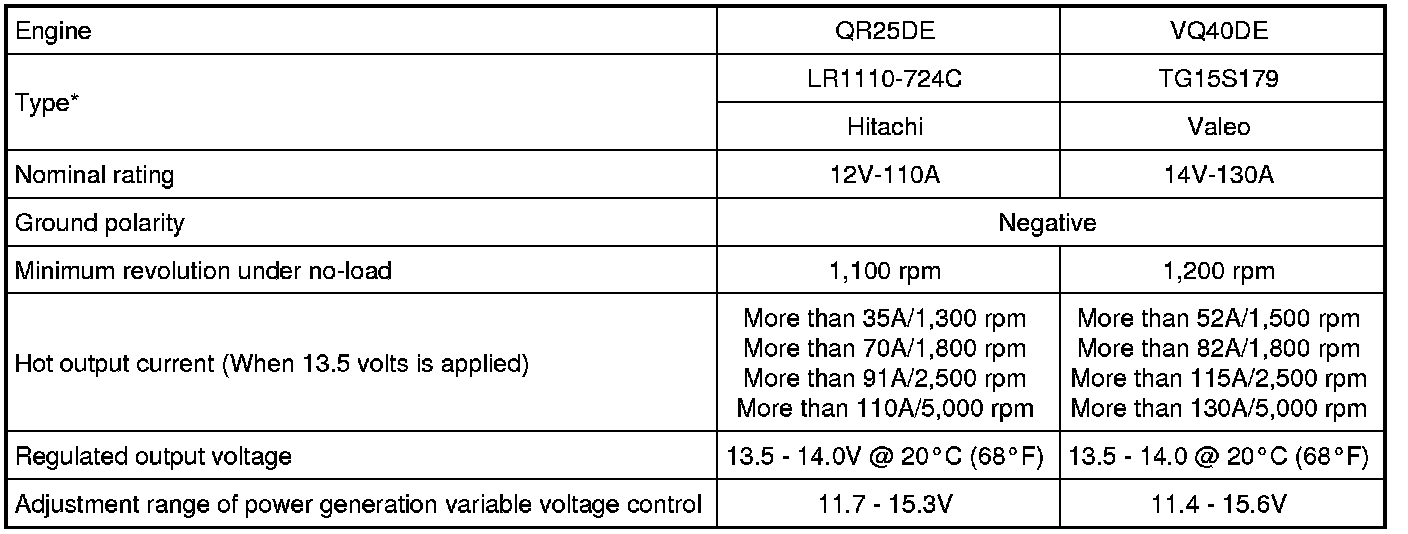

Service Data and Specifications





*: Always check with the Parts Department for the latest parts information

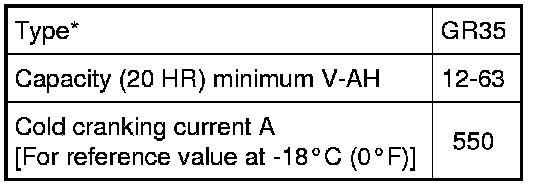

Service Data and Specifications





*: Always check with the Parts Department for the latest parts information
