Scan Tool Testing and Procedures

SDT Function (IPDM E/R)

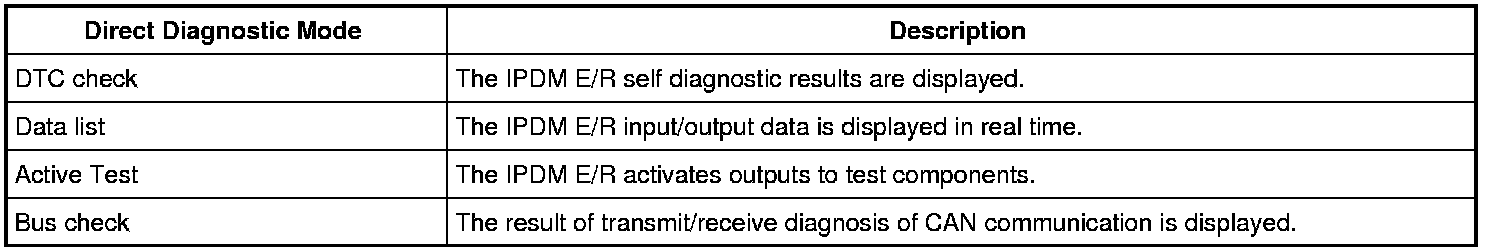

Application Item

SDT performs the following functions via CAN communication with IPDM E/R.






DTC Check

Refer to [DTC Index: IPDM E/R] DTC Index IPDM E/R.

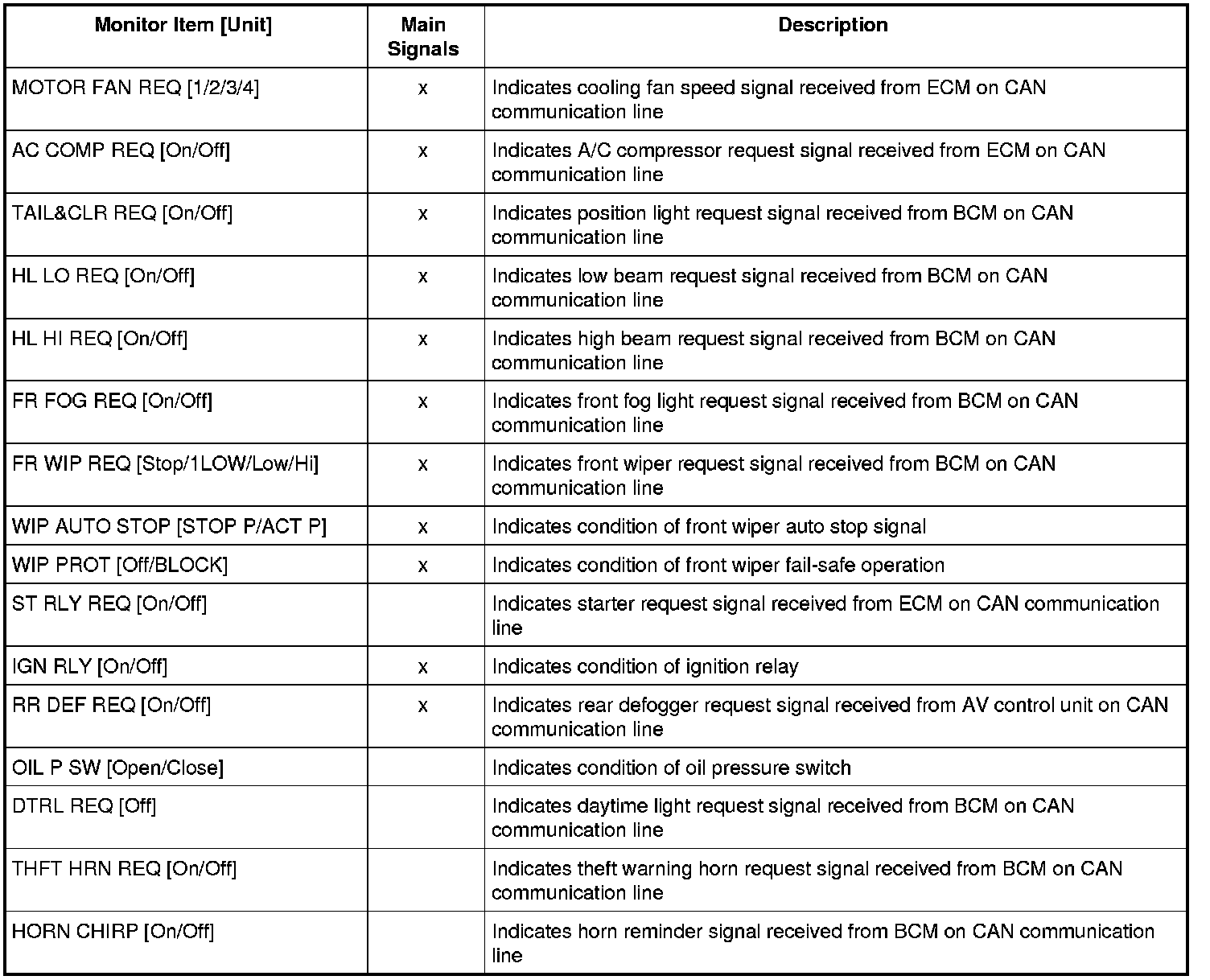

Data List

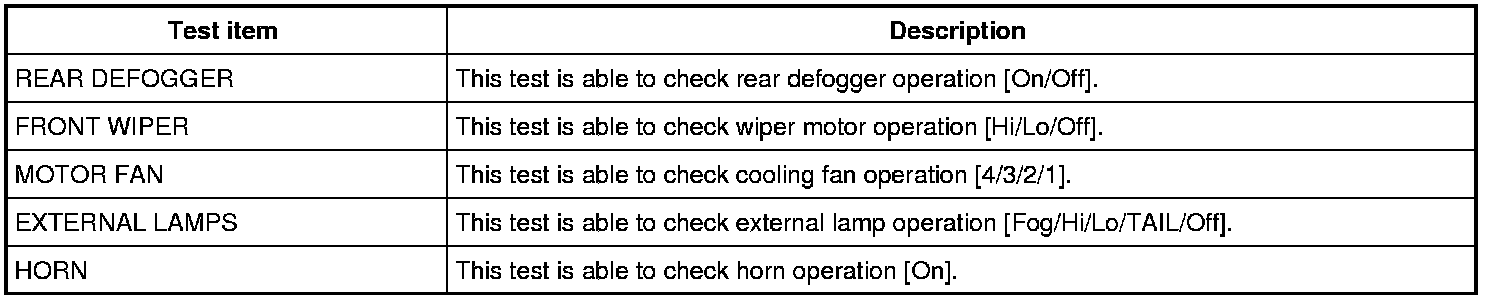

Active Test
