Steering Column

STEERING COLUMN SPECIFICATIONS

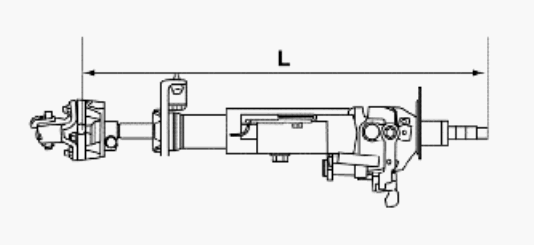

G00518457Courtesy of SUZUKI OF AMERICA CORP.
Steering column length 553.0 mm (21.77 in)

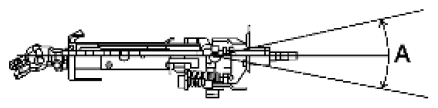

G06445854Courtesy of SUZUKI OF AMERICA CORP.
Tilt range (A) 18° - 21° of tilt range
