IPDM E/R (Intelligent Power Distribution Module Engine Room): Removal and Installation: Removal

CAUTION: Never remove the relays from the IPDM E/R. Tampering with the relays may cause additional incidents with the vehicle.
  1. Disconnect negative battery terminal.
  1. Remove IPDM E/R upper cover.

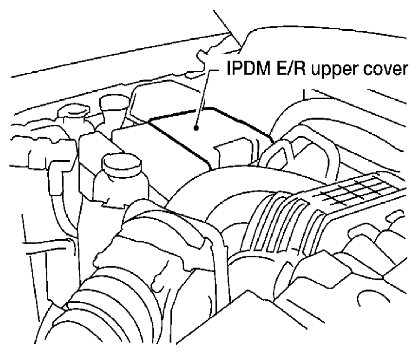

    Fig 1: Identifying IPDM E/R Upper Cover
    G06446780Courtesy of SUZUKI OF AMERICA CORP.
  2. Release 2 clips and pull IPDM E/R up from case.
    Fig 2: Locating IPDM E/R Case Clips
    G06446781Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect IPDM E/R connectors and remove the IPDM E/R.
