Main Harness

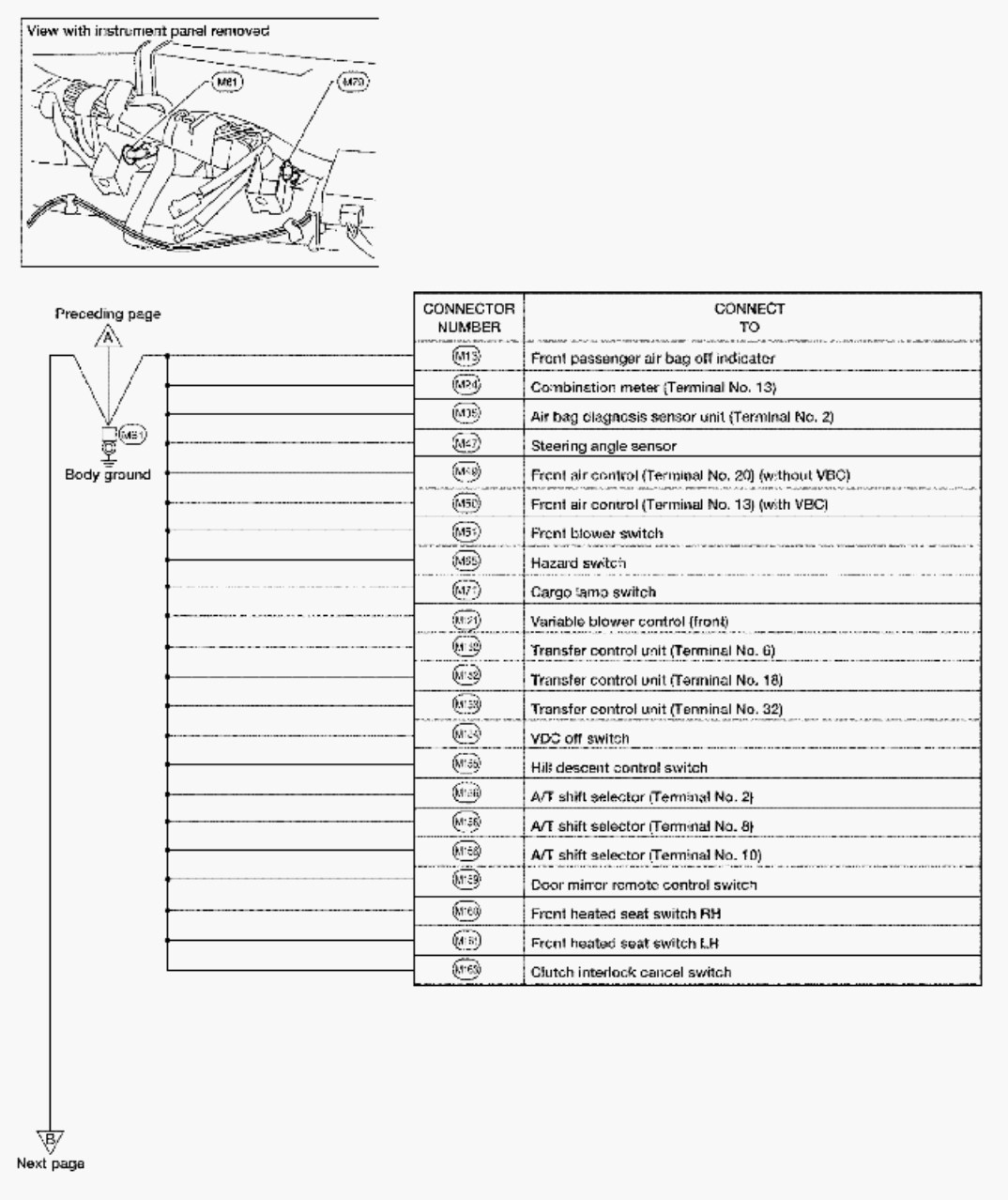

Fig 1: Identifying Ground Distribution - Main Harness (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Ground Distribution - Main Harness (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

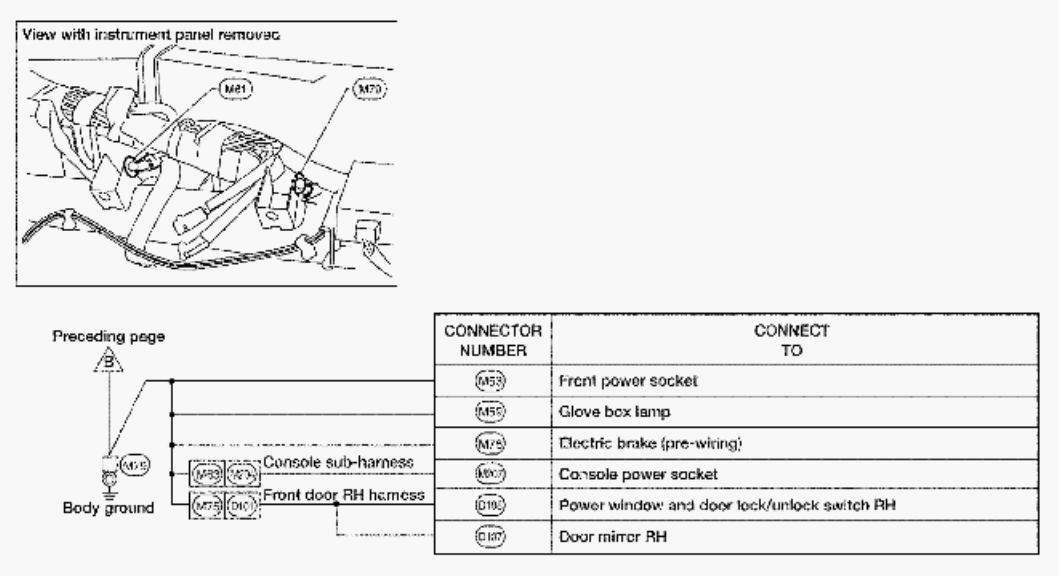

Fig 3: Identifying Ground Distribution - Main Harness (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
