Check 4WD Shift Indicator Pattern

Set 4WD shift switch to "2WD", "4H", "4LO", "4H" and "2WD" in order. Stay at each switch position for at least 2 seconds.

Confirm 4WD shift indicator lamp and 4LO indicator lamp change properly as follows.

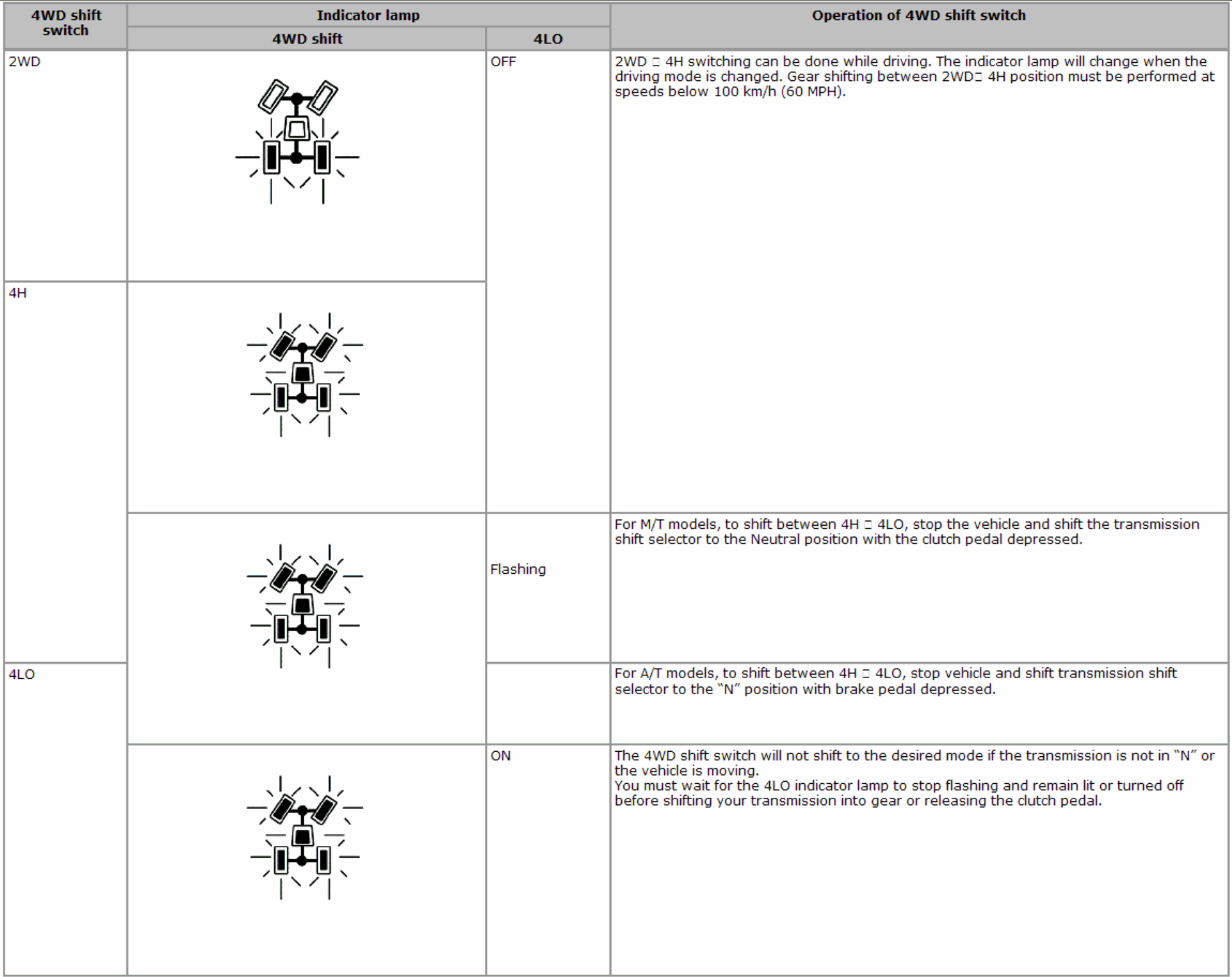

Fig 1: 4WD Shift Indicator Lamp Specification Chart

Courtesy of SUZUKI OF AMERICA CORP.

If OK, the position between transfer assembly and transfer control unit is correct.
If NG, the position is different between transfer assembly and transfer control unit.
Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.

Transfer position adjustment pattern

4WD SHIFT SWITCH CONDITION CHART

4WD shift switch condition	Refer procedure
4WD shift switch is in "2WD" when engine is stopped.	"METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT "2WD""
4WD shift switch is in "4H" or "4LO" when engine is stopped.	"METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT "4H" OR "4LO""

NOTE: Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.
