Transfer Assembly: Exploded View

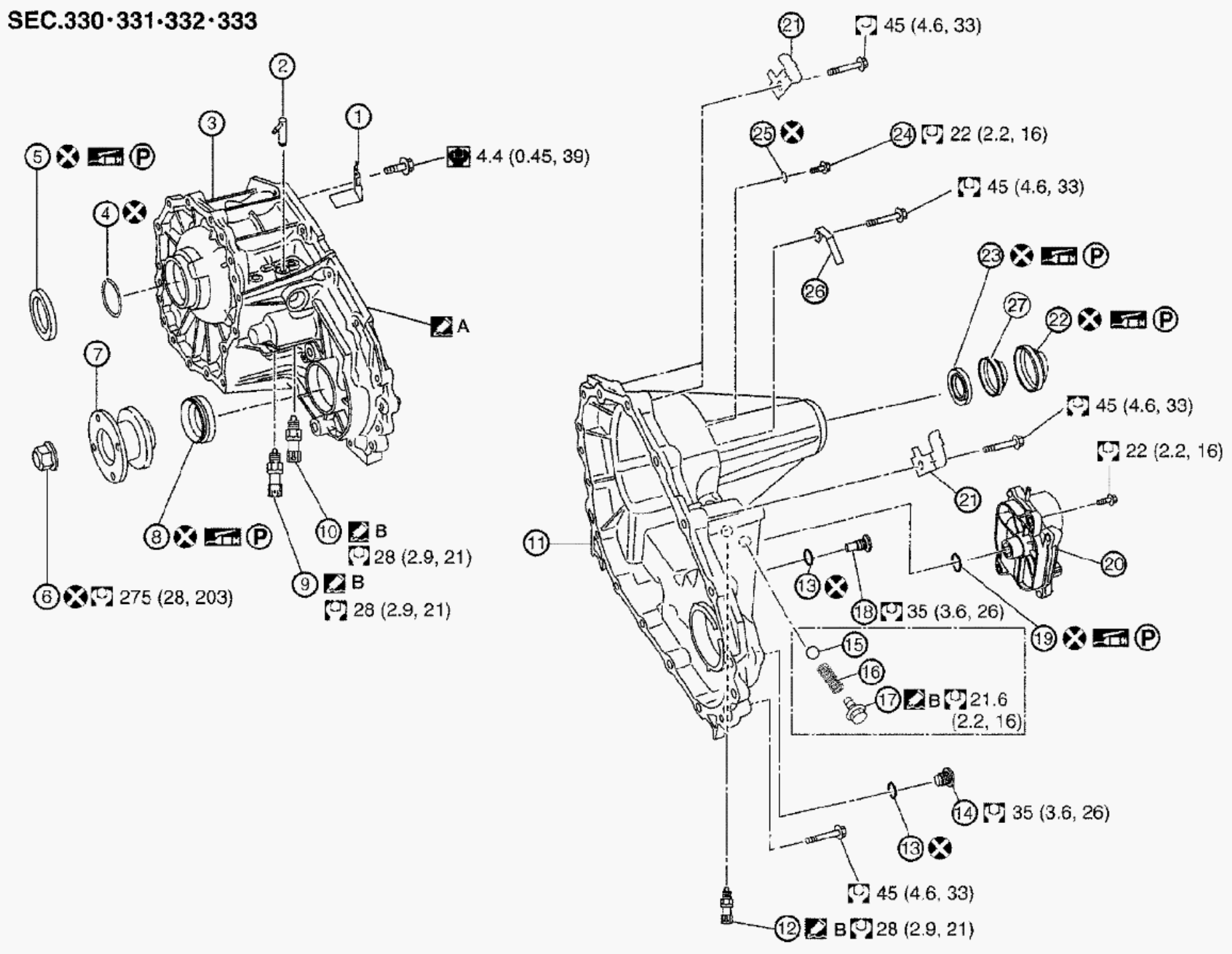

Fig 1: Exploded View Of Transfer Assembly (1 of 4)

Courtesy of SUZUKI OF AMERICA CORP.

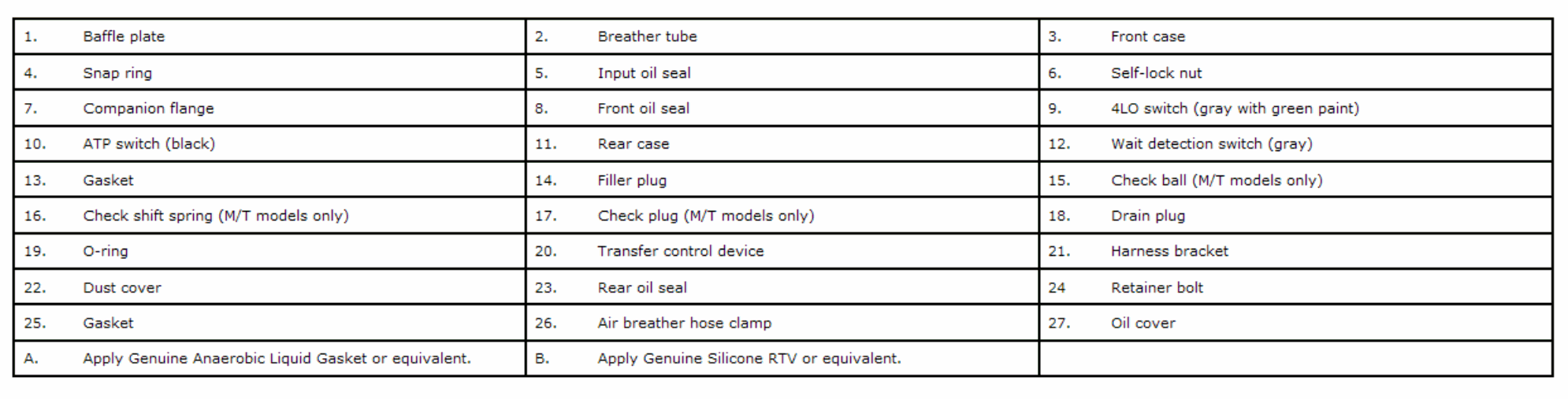

Fig 2: Exploded View Of Transfer Assembly (2 of 4)

Courtesy of SUZUKI OF AMERICA CORP.

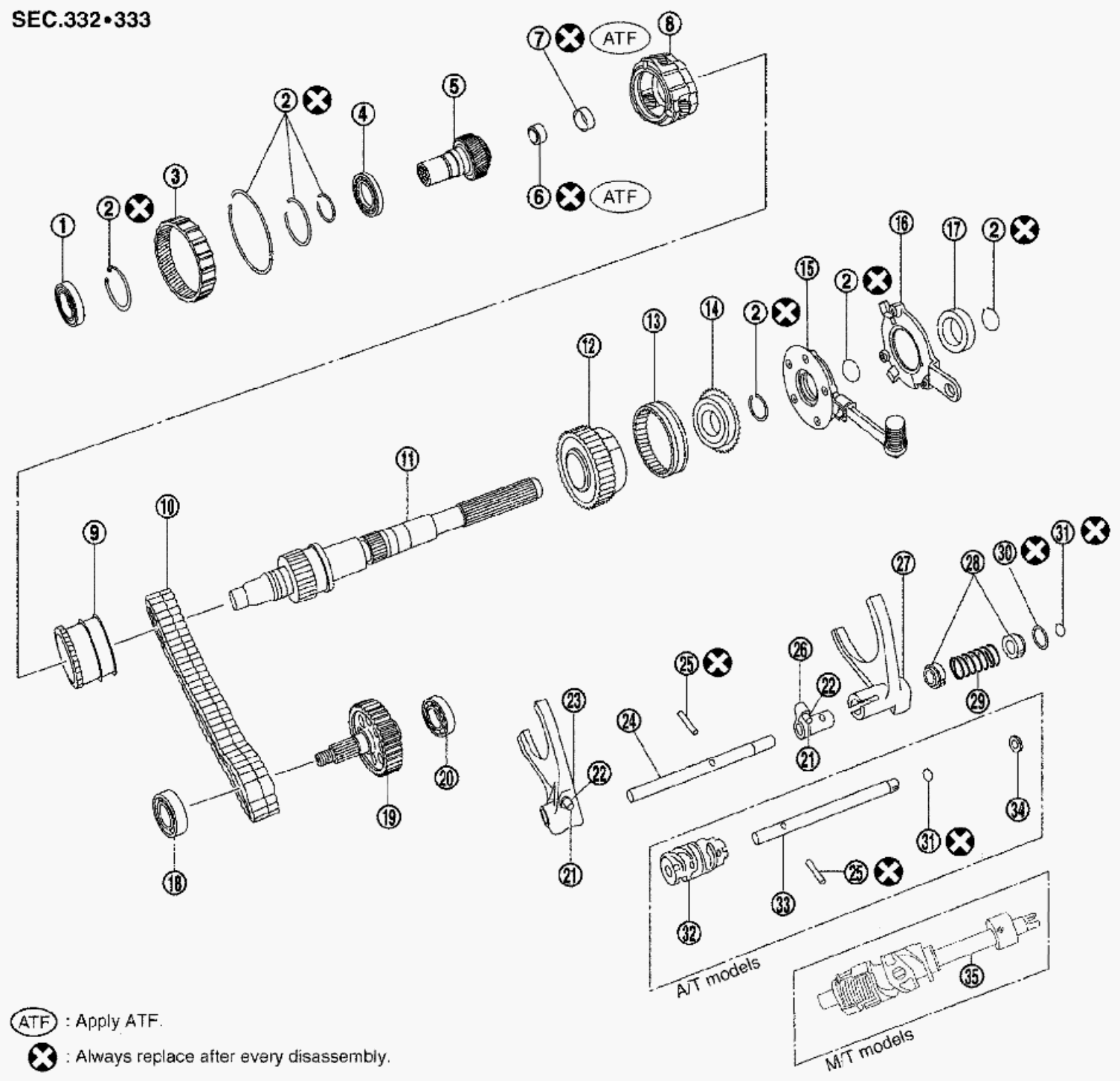

Fig 3: Exploded View Of Transfer Assembly (3 of 4)

Courtesy of SUZUKI OF AMERICA CORP.

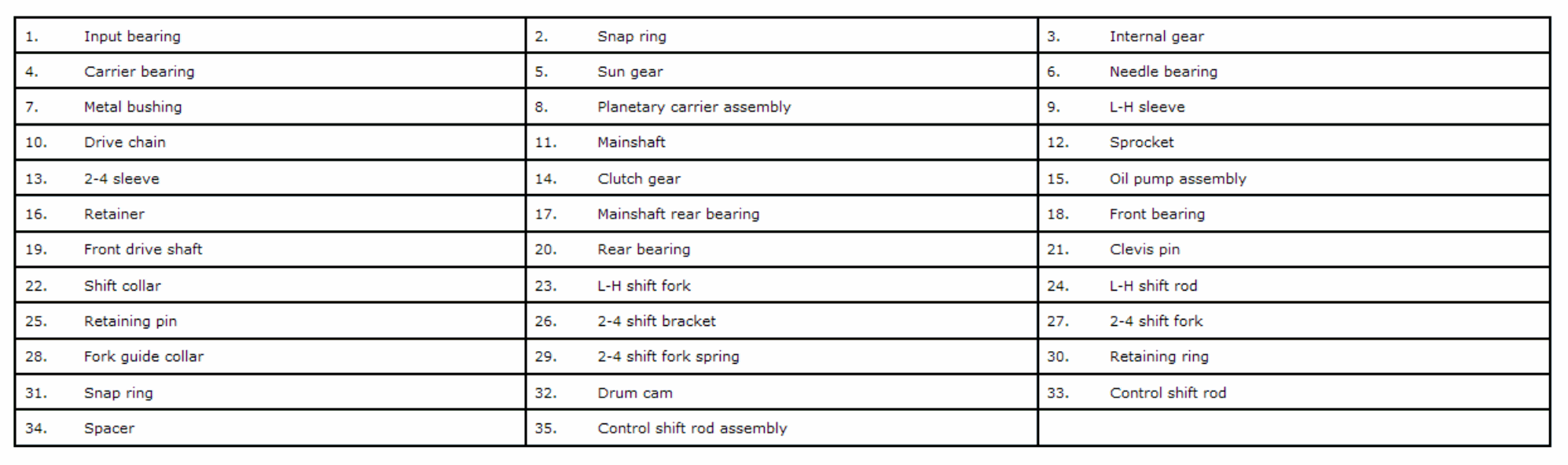

Fig 4: Exploded View Of Transfer Assembly (4 of 4)

Courtesy of SUZUKI OF AMERICA CORP.
