Warning Light, Indicator Light, Information Display Description

There are six types of warning light, indicator light and information display in instrument cluster, which are controlled by ESP® control module. They give warning/indication to driver by changing the modes light ON/blinking/light OFF, and also show the warning/indication message up on the information display at the same time.

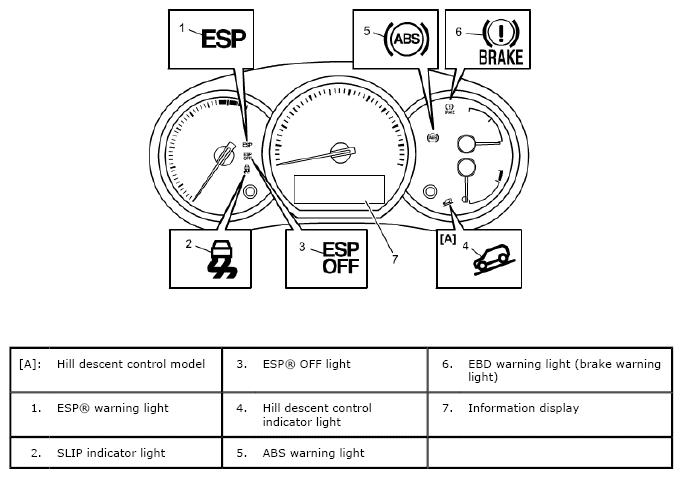

Fig 1: Identifying Warning Light And Indicator Light

Courtesy of SUZUKI OF AMERICA CORP.

The followings are the condition and operation of warning lights and indicator lights.

WARNING LIGHT/INDICATOR LIGHT REFERENCE CHART

Warning light/Indicator light	Condition and operation
ABS warning light	If ABS has abnormality, the light turns "ON".
EBD warning light (brake warning light)	If EBD system has abnormality, the light turns "ON". If bake fluid level in reservoir is lower than minimum level, the light turns "ON". Parking brake switch is ON, the light turns "ON".
ESP® warning light	If ESP® systems has abnormality, the light turns "ON".
SLIP indicator light	If stability control system, hill descent control (if equipped) and traction control system is active, the light blinks at 5 Hz. If Steering angle sensor calibration is incompleted, the light blinks at 1 Hz.
ESP® OFF light	If ESP® OFF switch is turned "ON", the ESP® OFF light lights up. When switch is "ON", traction control system and stability control system functions are controlled not to work. However, when the speed is over 30 km/h (18.5 mph), ESP® OFF light is turned "OFF" and traction control system and stability control system functions are back to work automatically. When transfer shift position (if equipped) is in 4L-lock, the ESP® OFF light lights up to indicate engine torque down and stability control system in traction control system are controlled not to activate to increase the driving force. However, the brake-traction control works through ESP® OFF light lights up. ESP® OFF light lights up to indicate that brake control of traction control function is controlled not to act if brake pad temperature is over 350 °C (662 °F) and any of wheel is in wheel spin condition.
Hill descent control indicator light (if equipped)	When hill descent control switch is turned "ON" and all the following vehicle conditions is satisfied, hill descent control function is activated and hill descent control indicator light is "ON". The transfer switch is in the "4HL" or "4LL" position The gearshift lever is in the "forward" or "reverse" position The vehicle speed is 25 km/h (15 mph) or less. The DTC(s) for hill descent control function has not been detected. When hill descent control switch is turned "ON" and the vehicle condition is other than these above, hill descent control indicator light is blinks.

The following are the condition and display color of message.

MESSAGE DISPLAY CHART

Message	Display collar	Condition
SERVICE ESP SYSTEM	Orange	When ESP® control module detected DTC (other than C1016, C1027, C1037, C1065, C1075, C1076, C1077 and C1078)
ESP OFF SWITCH WORKS ONLY IN 4HL	White	When ESP® OFF switch pushed with transfer shift position at "4H"
HILL HOLD DISABLED	Orange	When the trouble that relates to hill hold control occurs.
MAINTENANCE MODE ACTIVE	Orange	When ESP® function is deactivated by using SUZUKI scan tool.
