Hill Descent Control Switch Inspection

Reference:  HILL DESCENT CONTROL SWITCH REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position.

If check result is not as specified, replace hill descent control switch (1).

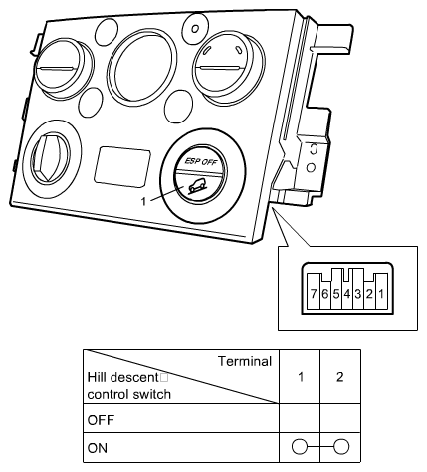

Fig 1: Identifying Hill Descent Control Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.
