Electronic Stability Program Schematic

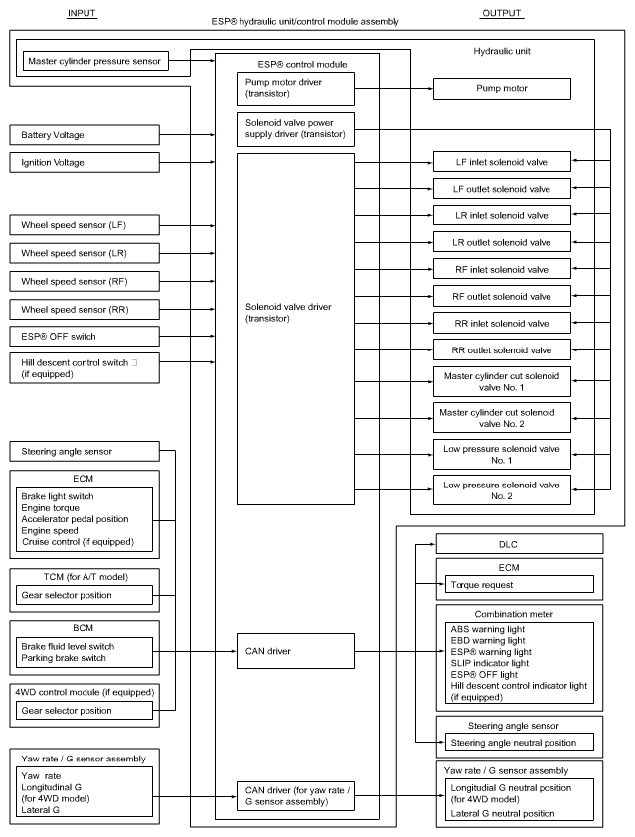

Fig 1: Electronic Stability Program Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
