APP (Accelerator Pedal Position) Sensor Inspection

Remove Accelerator Pedal assembly.
Check APP sensor output voltage as follows.
If faulty condition is found, replace accelerator pedal assembly (incorporated with APP sensor). See ACCELERATOR PEDAL ASSEMBLY (INCORPORATING APP SENSOR) REMOVAL AND INSTALLATION .
1. Connect 3 new 1.5 V batteries (1) in series and check that total voltage is 4.5 - 5.0 V.

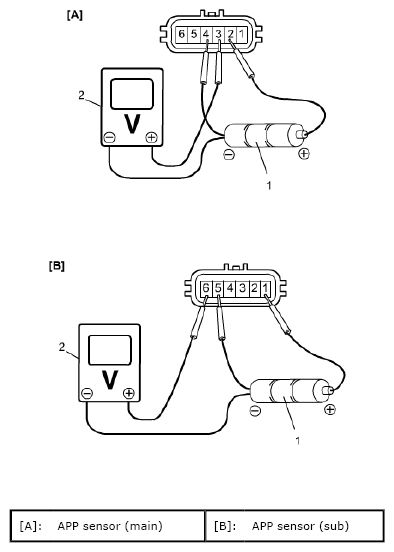

2. Connect voltmeter (2) and batteries to APP sensor as shown in figure.

  Fig 1: Checking APP Sensor Output Voltage
  Courtesy of SUZUKI OF AMERICA CORP.

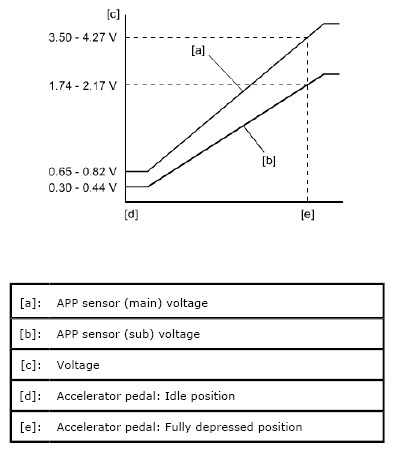

3. Check that voltage varies depending on accelerator opening angle as the following graph.

  Fig 2: Voltage Output Graph
  Courtesy of SUZUKI OF AMERICA CORP.
