Catalyst System Layout

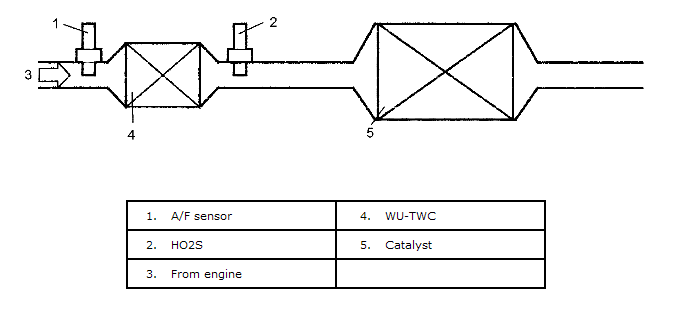

The system has A/F sensor and HO2S located upstream and downstream of WU-TWC as shown in figure.

Fig 1: WU-TWC, A/F Sensor & HO2S Layout
G00229438Courtesy of SUZUKI OF AMERICA CORP.
