Engine and Emission Control System Diagram

NOTE: For identification of each cylinder, refer to PRECAUTIONS FOR IDENTIFICATION OF CYLINDER:J24B .

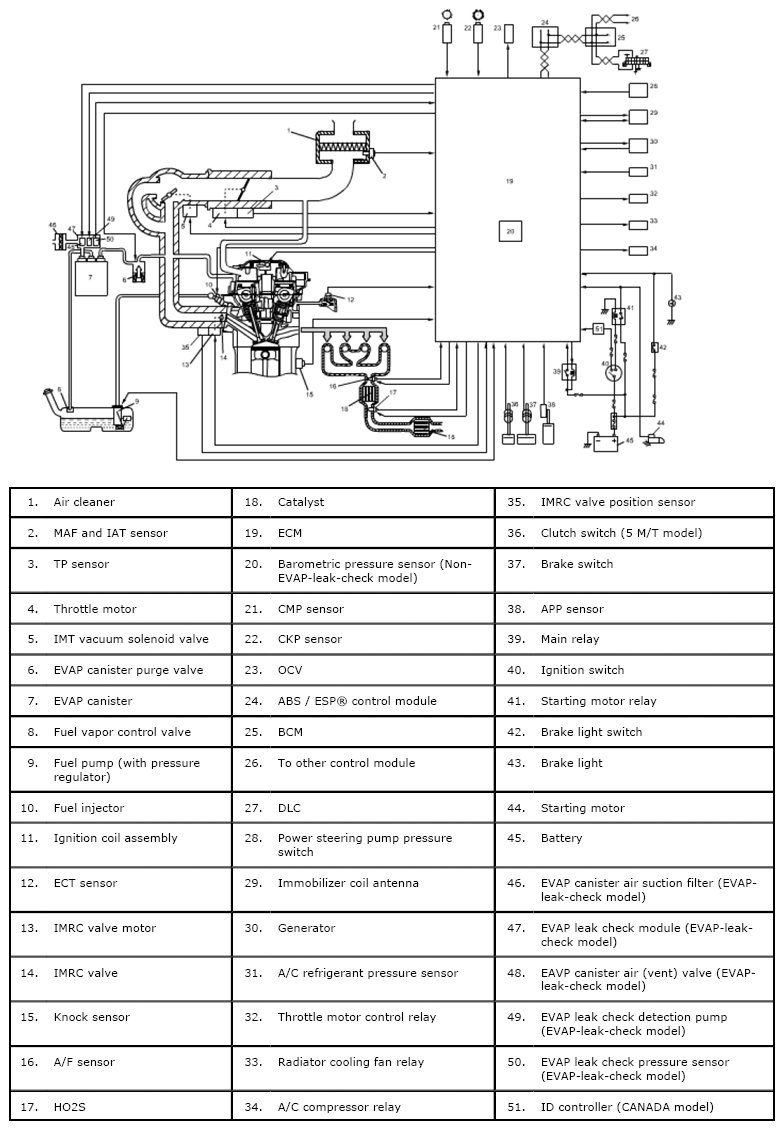

Fig 1: Engine And Emission Control System Diagram
G06492339Courtesy of SUZUKI OF AMERICA CORP.
