Warning Light, Indicator Light Description

There are five types of warning light and indicator light in instrument cluster, which are controlled by ESP® control module. They give warning/indication to driver by changing the modes light ON/blinking/light OFF.

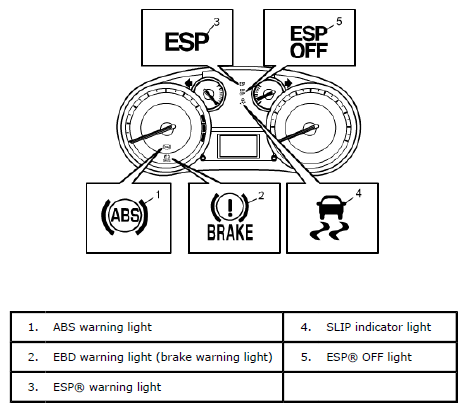

Fig 1: Identifying Warning Light, Indicator Light

Courtesy of SUZUKI OF AMERICA CORP.

The followings are the condition and operation of warning lights and indicator lights.

WARNING LIGHT, INDICATOR LIGHT DESCRIPTION

Warning light/Indicator light	Condition and operation
ABS warning light	If ABS has abnormality, the light turns "ON".
EBD warning light (brake warning light)	If EBD system has abnormality, the light turns "ON". If bake fluid level in reservoir is minimum level, the light turns "ON". Parking brake switch is ON, the light turns "ON".
ESP® warning light	If ESP® systems has abnormality, the light turns "ON".
SLIP indicator light	If stability control system and traction control system is active, the light blinks at 5 Hz. If Steering angle sensor calibration is incompleted (DTC C1075 is detected) and/or steering angle sensor message data is missing from CAN communication (DTC U0126 is detected), the light blinks at 1 Hz.
ESP® OFF light	If ESP® OFF switch is turned "ON", the ESP® OFF light lights up. When it is "ON", traction control and stability control system functions are controlled not to work.
