Keyless Entry Receiver: Service and Repair

Remote Keyless Entry Receiver: Removal and Installation

Removal

1) Remove the front pillar upper finisher (RH). Refer to [Body Side Trim: Removal and Installation] Body Side Trim Removal and Installation.
2) Remove the side ventilator grille (RH). Refer to [Ducts and Grilles: Removal and Installation] Removal and Installation.
3) Remove the upper glove box. Refer to [Upper Glove Box: Removal and Installation] Upper Glove Box.
4) Remove cluster lid D. Refer to [Cluster Lid D: Removal and Installation] Cluster Lid D.

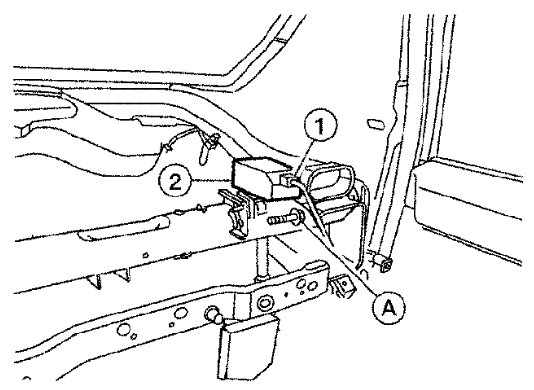

5) Remove the remote keyless entry receiver bolt (A).





6) Disconnect the harness connector (1) and remove the remote keyless entry receiver (2).

Installation

Installation is in the reverse order of removal.

- Perform TPMS ID registration. Refer to [ID Registration Procedure] Programming and Relearning.
