Grounds

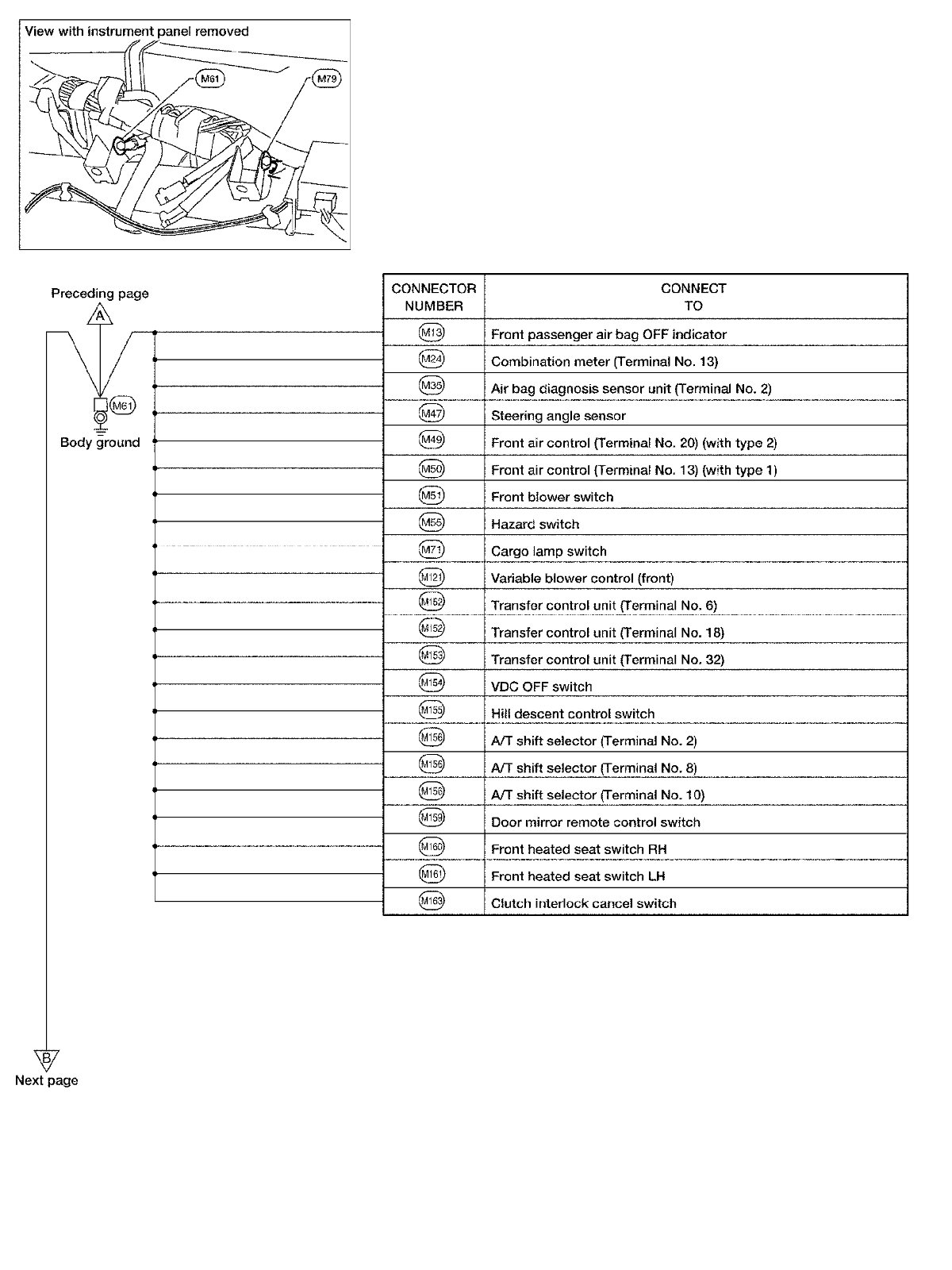

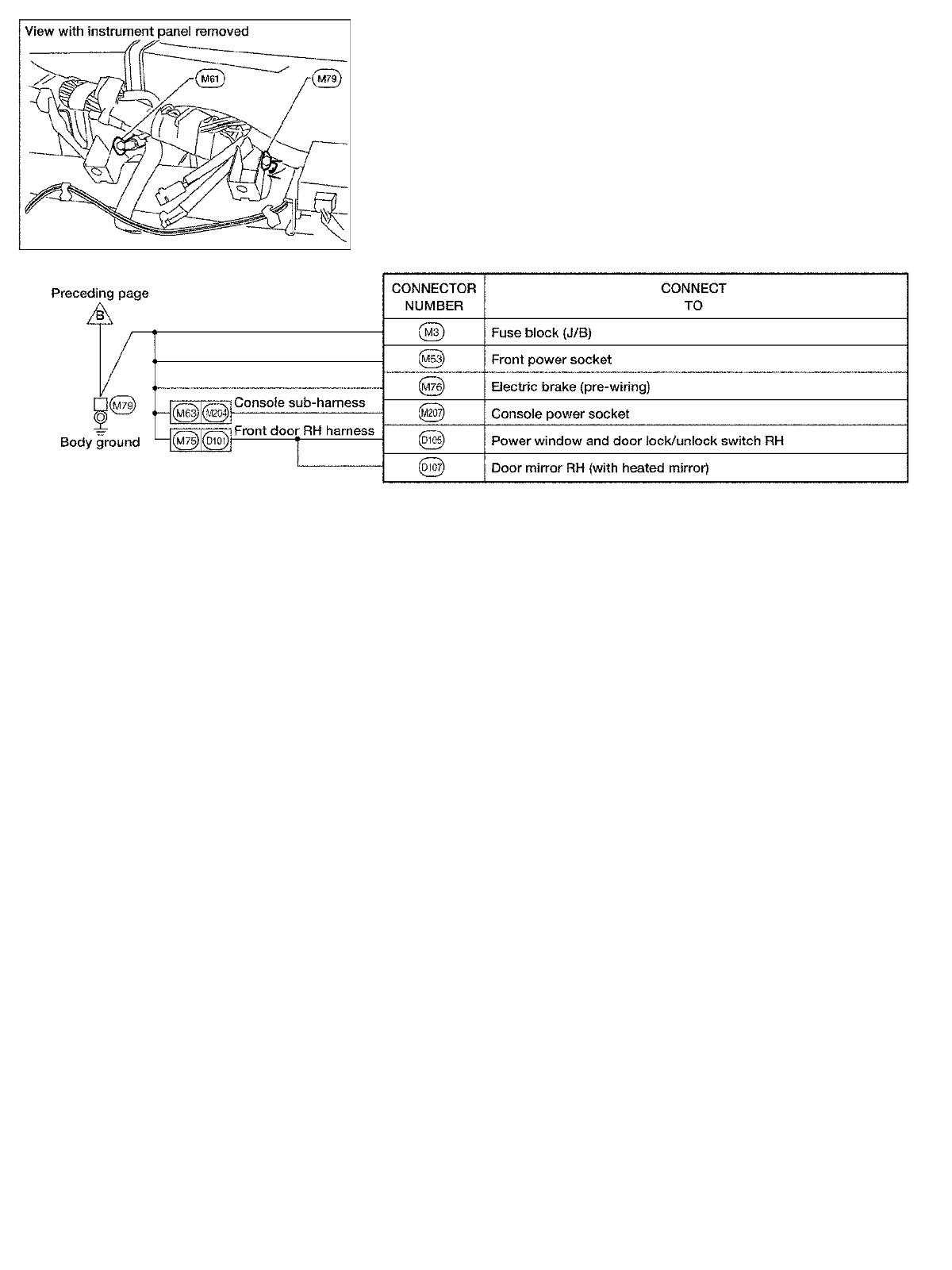

Ground Distribution

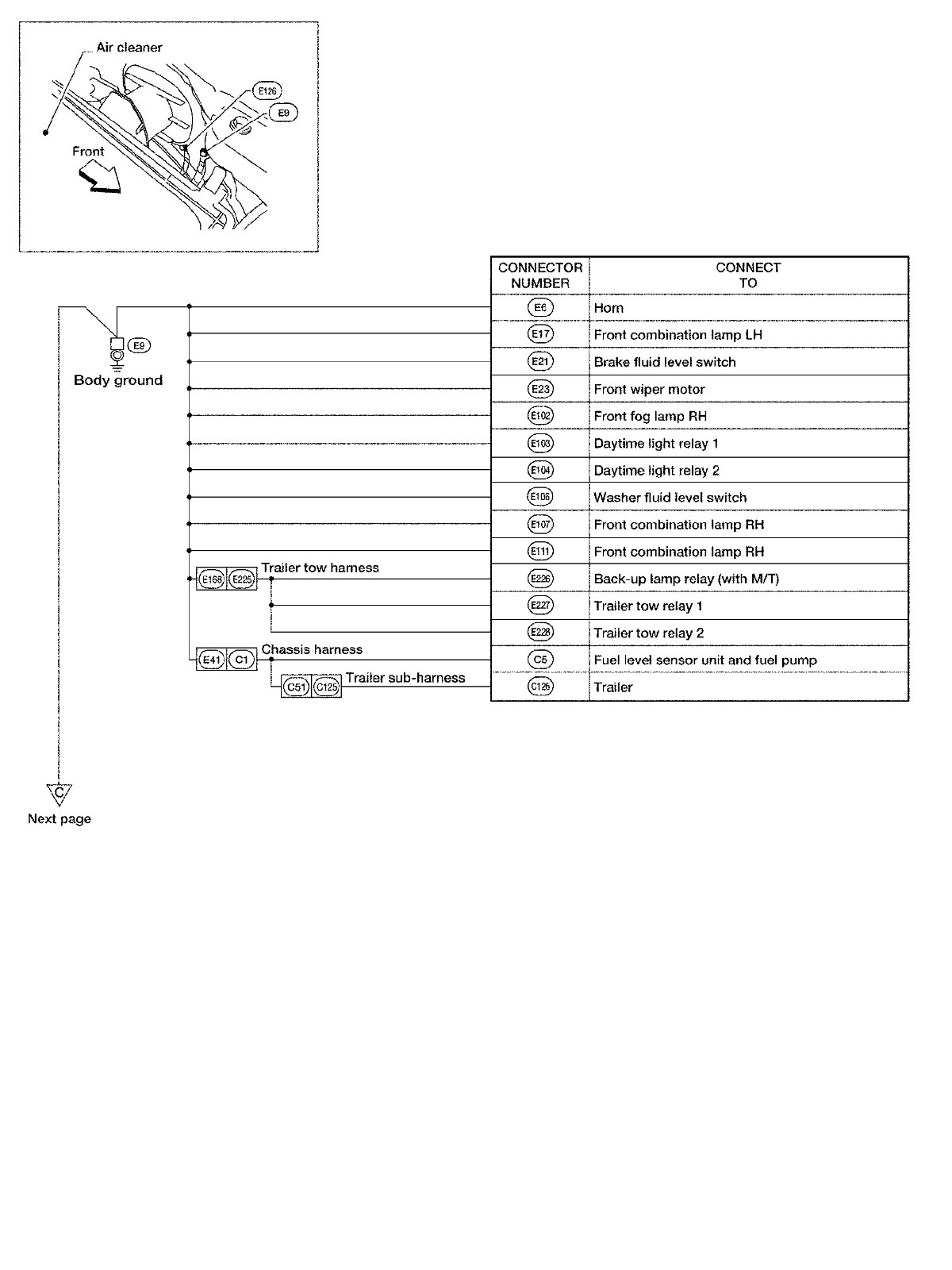

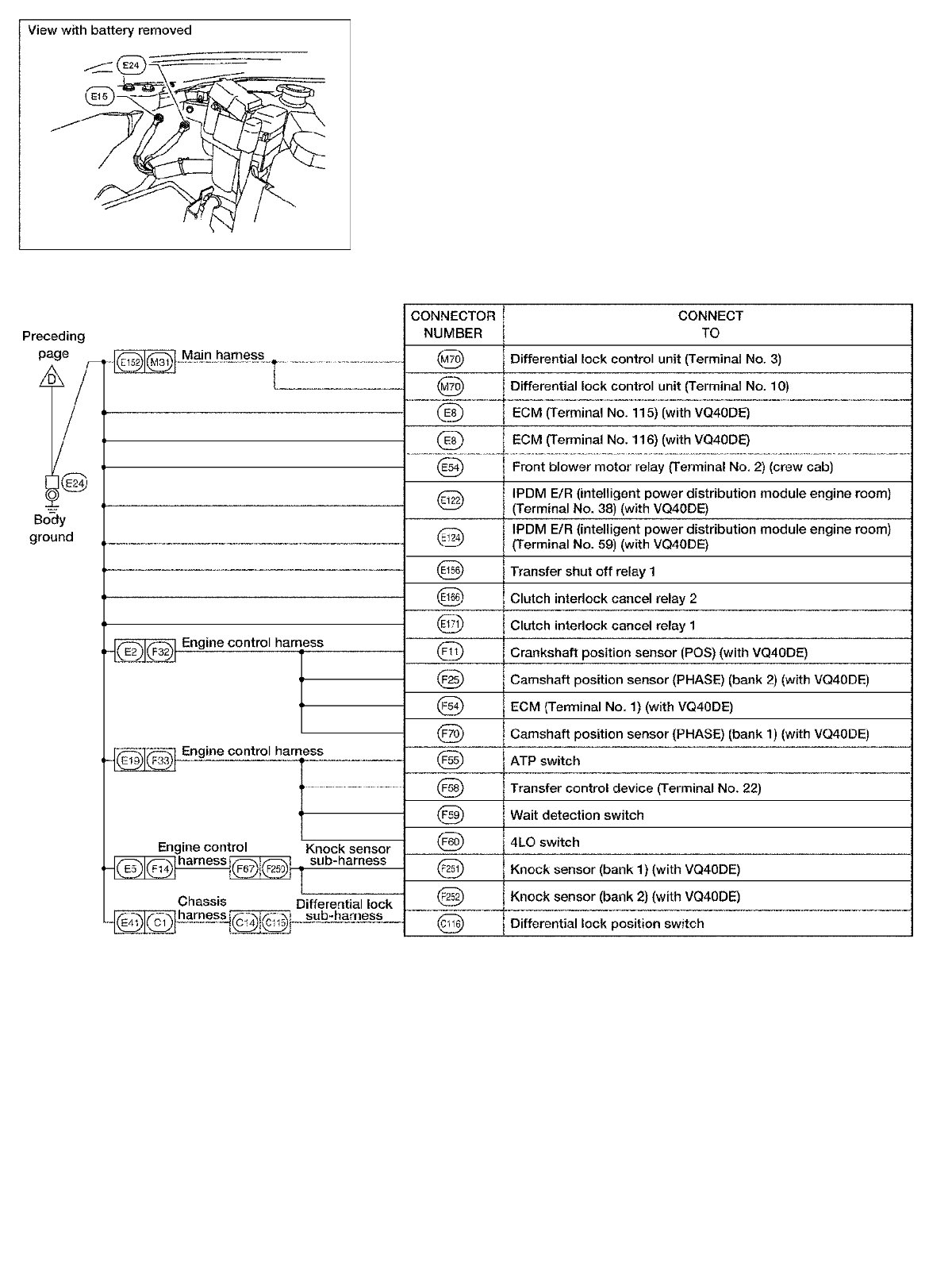

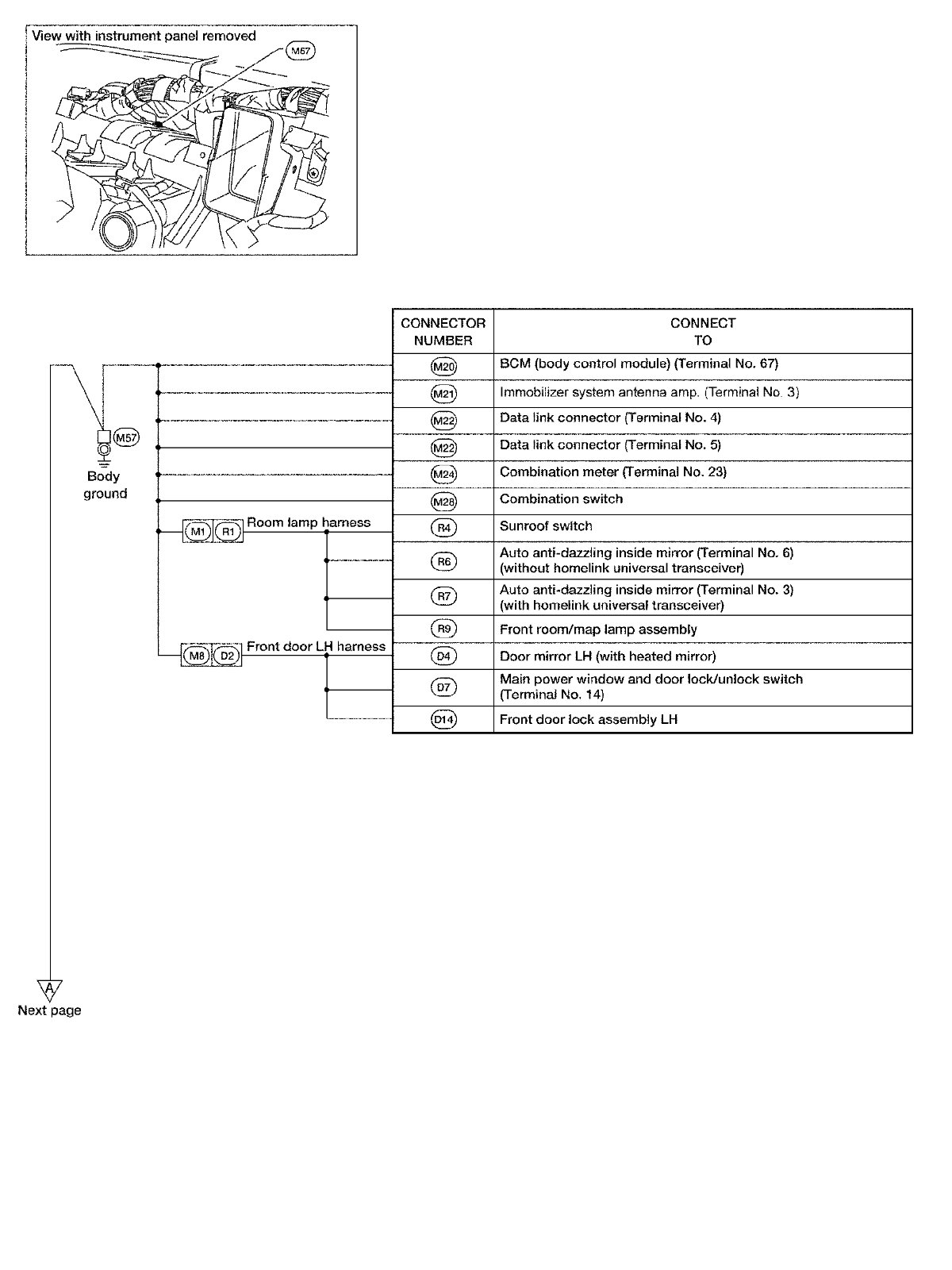

Main Harness

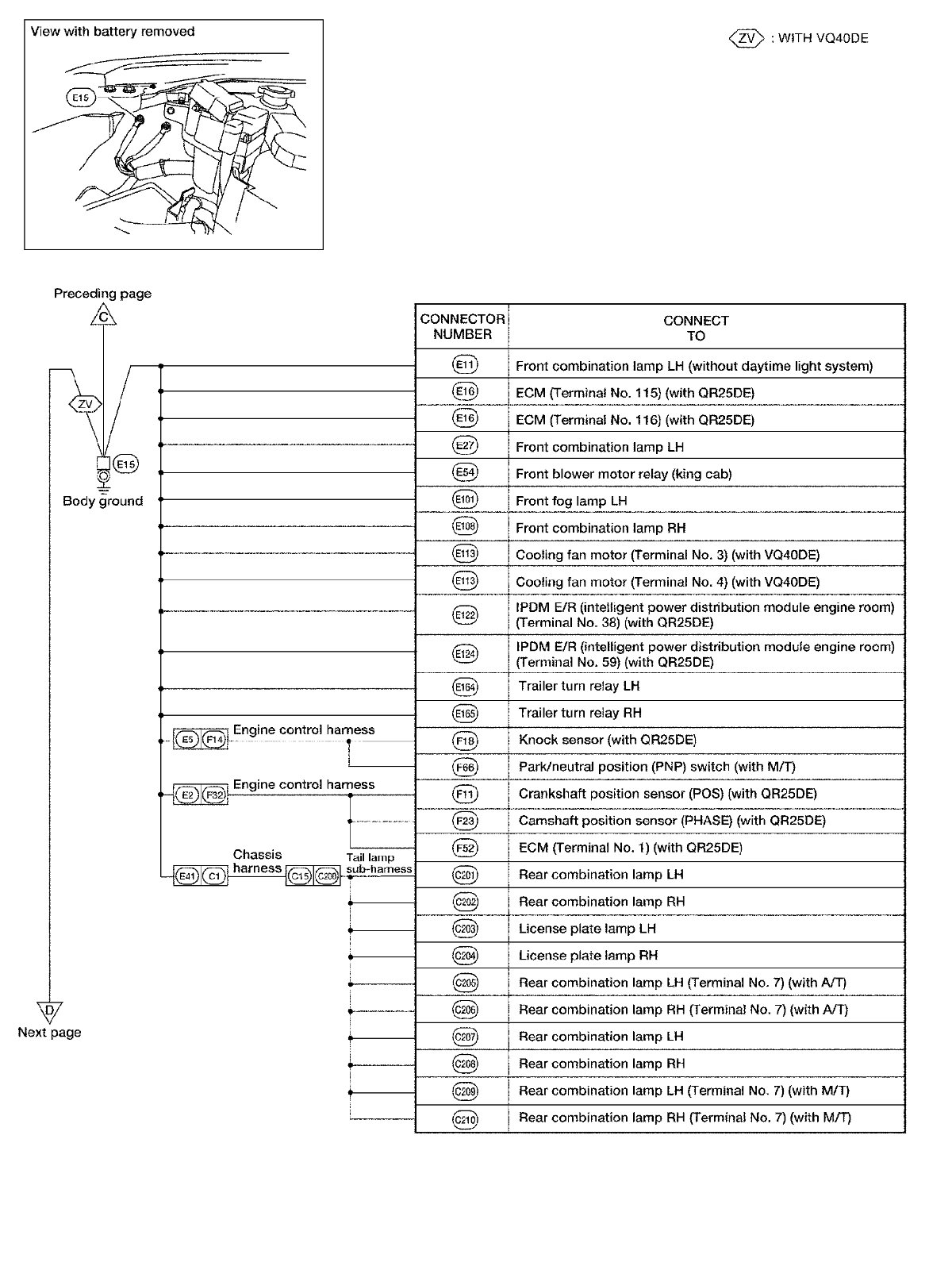

Engine Room Harness

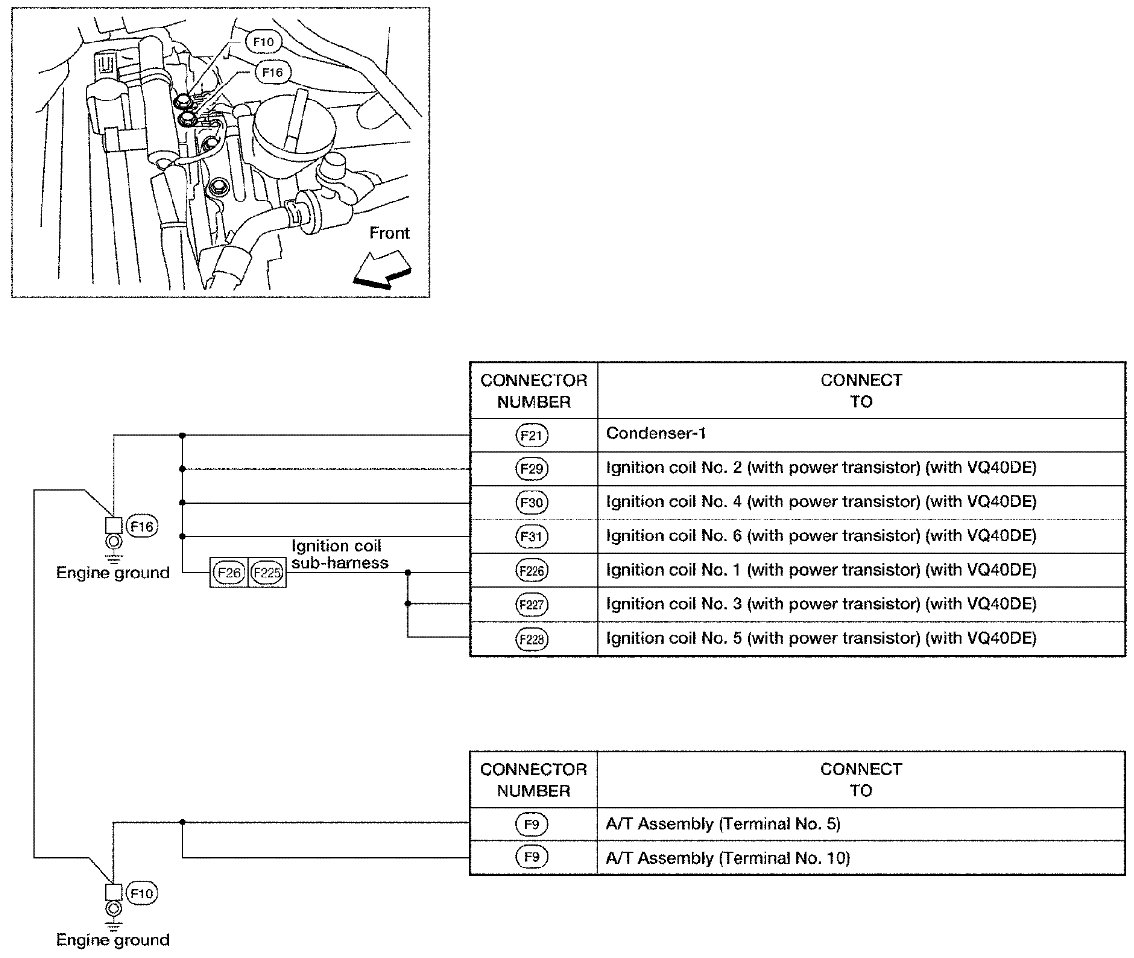

Engine Control Harness (VQ40DE Models)

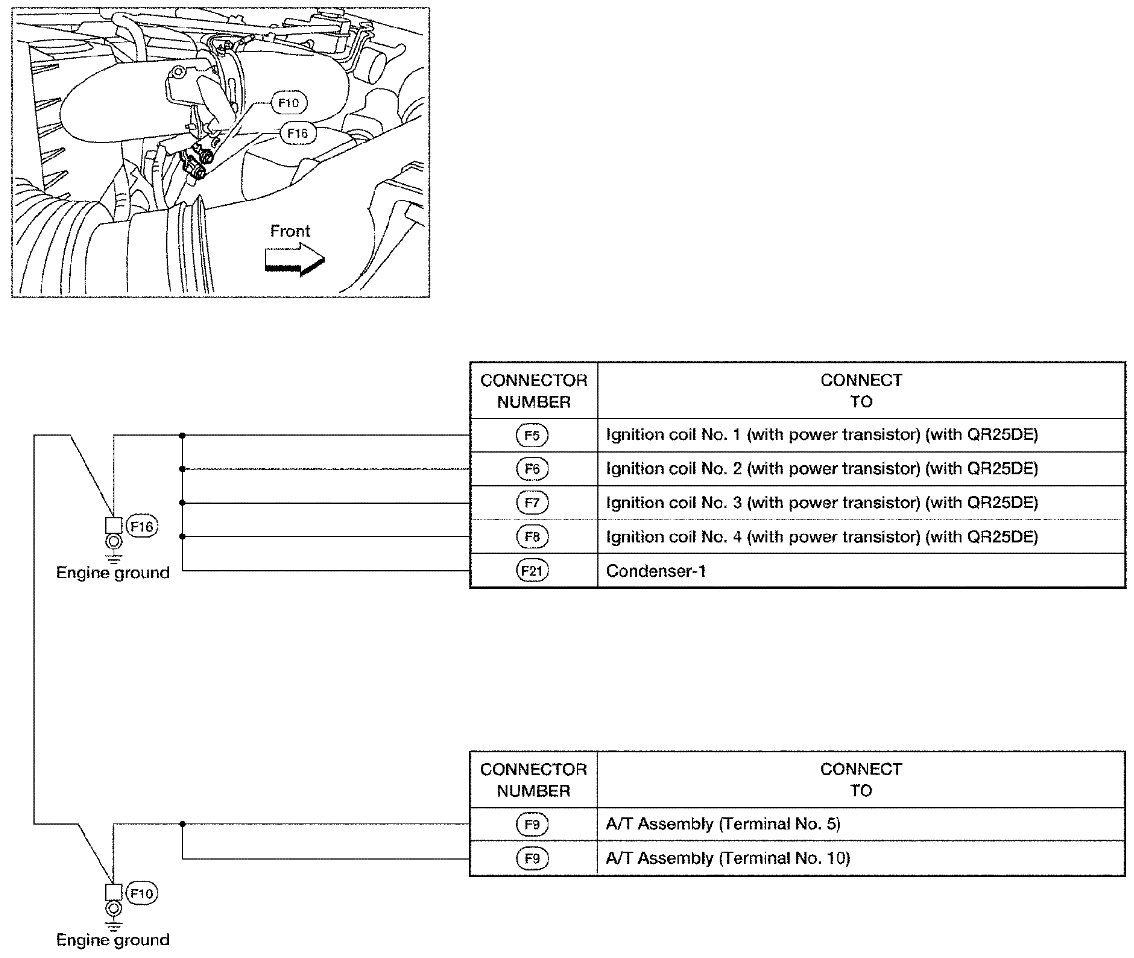

Engine Control Harness (QR25DE Models)

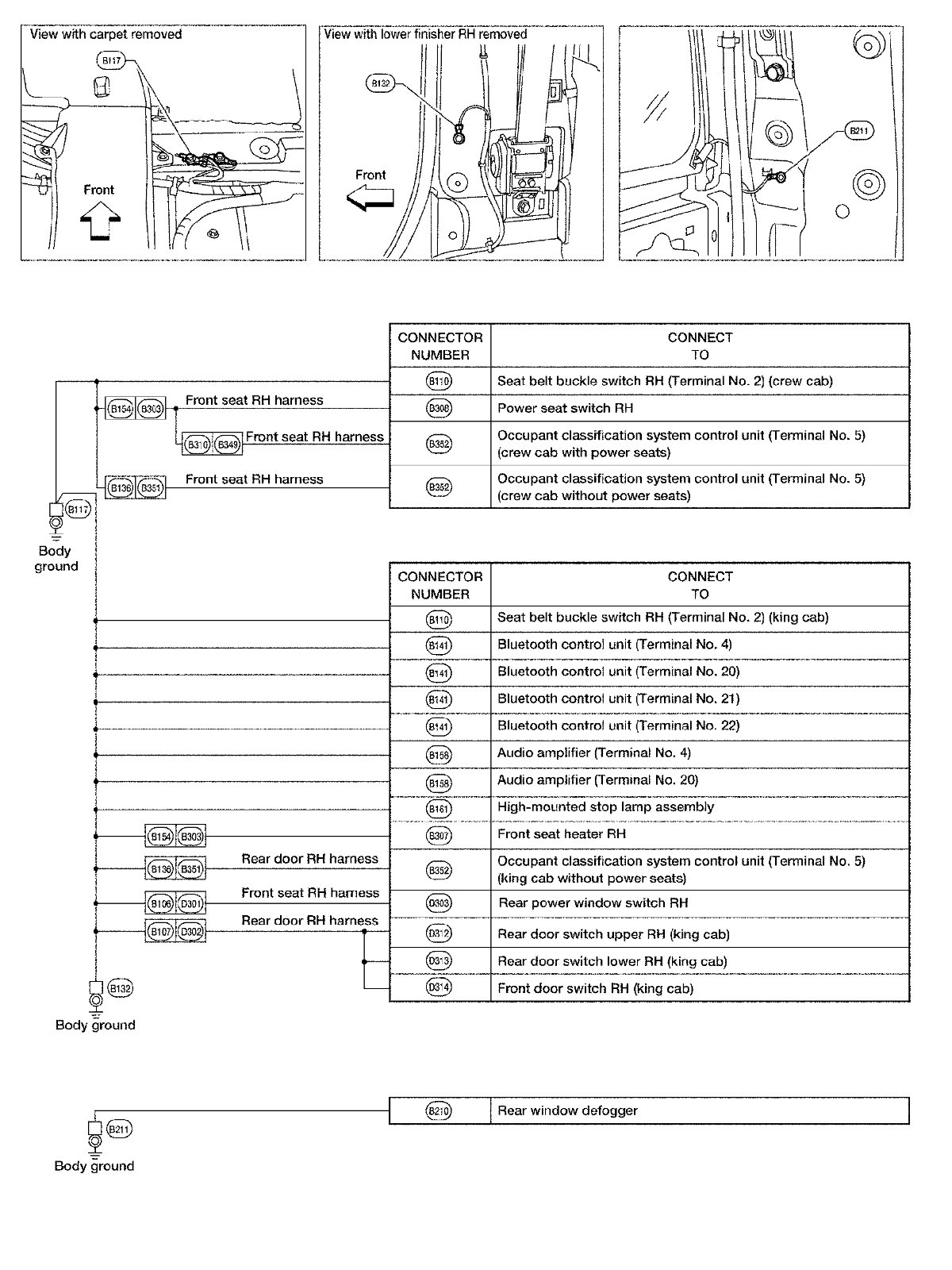

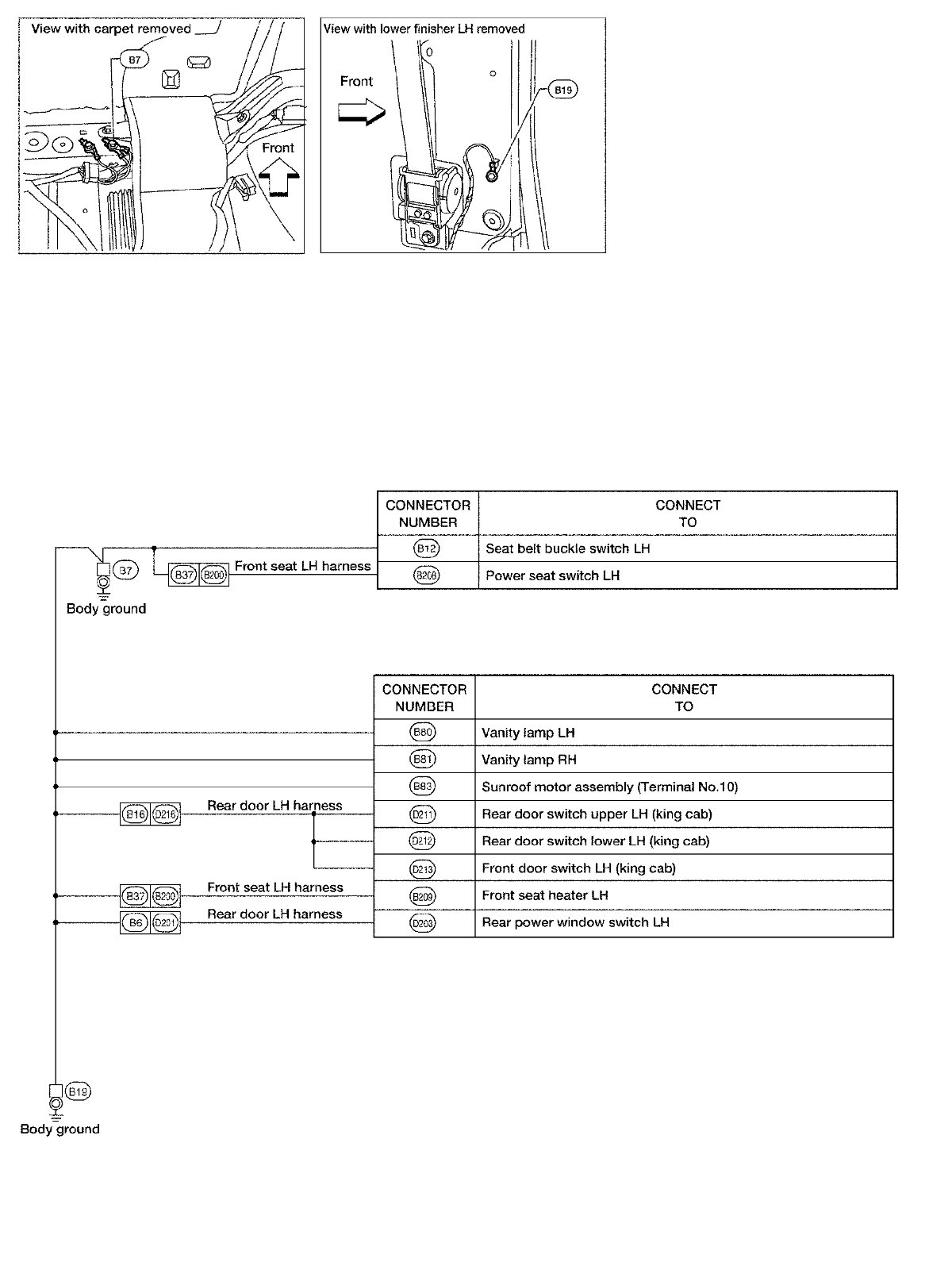

Body Harness





Body No. 2 Harness
