Control Assembly: Service and Repair

Control Unit: Removal and Installation

Front Air Control

Removal

1) Remove the A/T finisher. Refer to [A/T Finisher: Removal and Installation] A/T Finisher.
2) Remove the cup holder.
3) Remove cluster lid C. Refer to [Instrument Panel Assembly: Exploded View] Instrument Panel Assembly Exploded View.

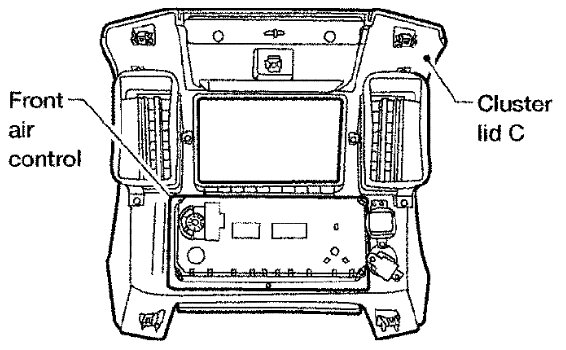

4) Remove the front air control from cluster lid C.

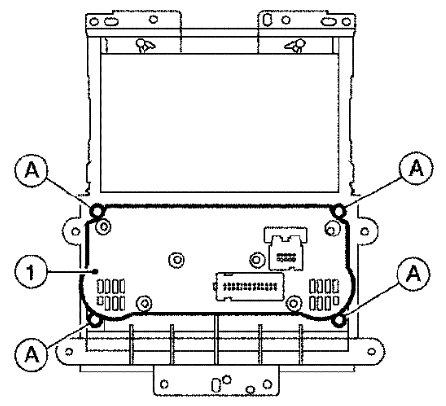

- For type 1, remove the four screws (A) securing the front air control (1) to cluster lid C.





- For type 2, remove the four screws securing the front air control to cluster lid C.






Installation

Installation is in the reverse order of removal.
