Brake Fluid: Testing and Inspection

Brake Fluid: On Board Inspection

Level Check

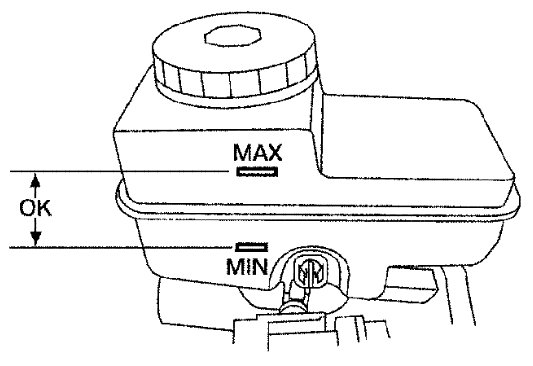

- Check that the brake fluid level in the reservoir tank is within specification, between the MAX and MIN lines as shown.





- Visually check around reservoir tank for fluid leaks.
- If fluid level is excessively low, check brake system for leaks.
- If brake warning lamp remains illuminated after the parking brake pedal is released, check the brake system for any brake fluid leaks.
