Relay Box: Service and Repair

IPDM E/R: Removal and Installation of IPDM E/R

Removal

CAUTION:

Never remove the relays from the IPDM E/R. Tampering with the relays may cause additional incidents with the vehicle.

1) Disconnect negative battery terminal.

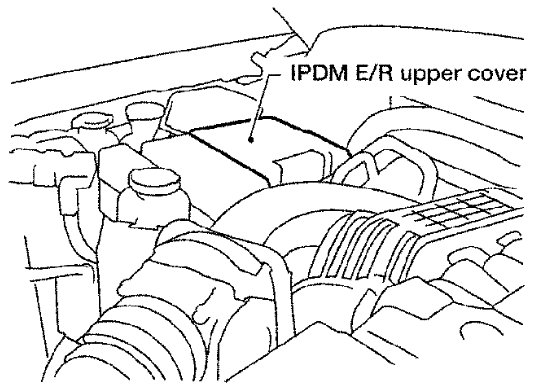

2) Remove IPDM E/R upper cover.

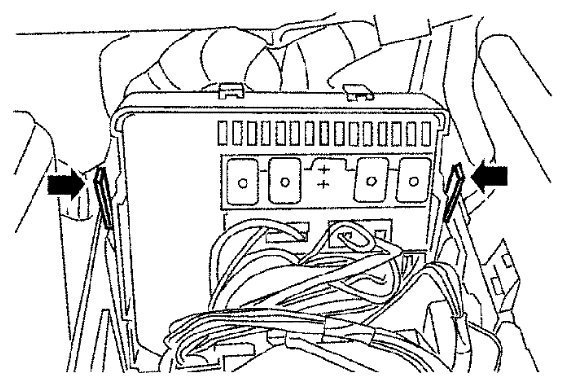

3) Release 2 clips and pull IPDM E/R up from case.





4) Disconnect IPDM E/R connectors and remove the IPDM E/R.

Installation

Installation is in the reverse order of removal.
