Air Conditioning Cut Control Input/Output Signal Chart

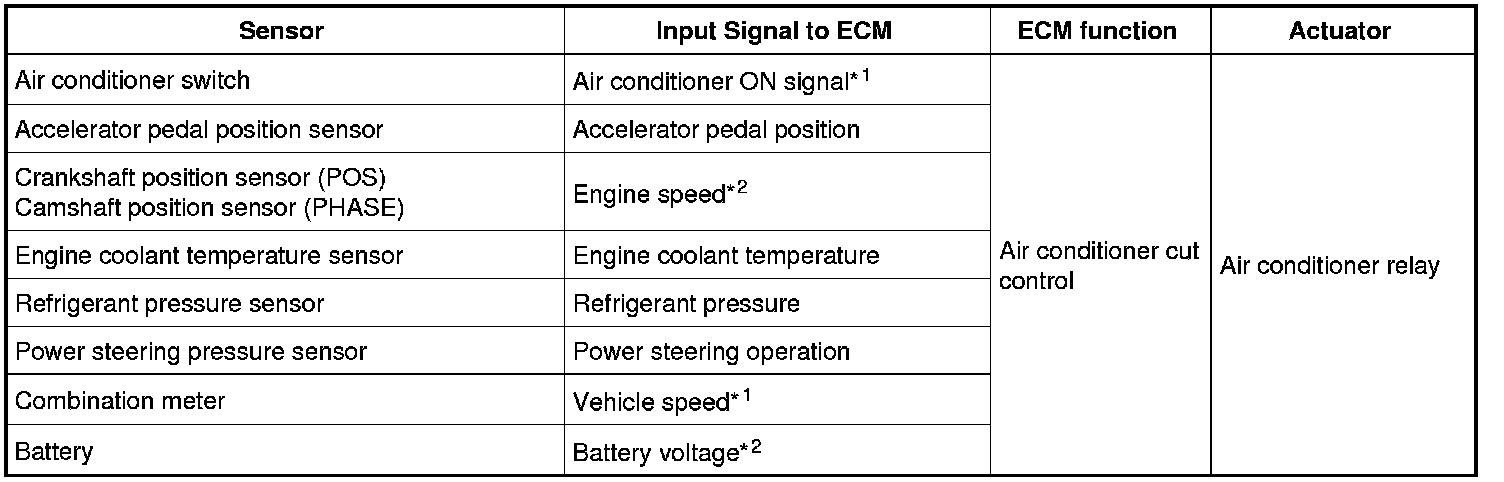

Air Conditioning Cut Control: Input/Output Signal Chart





*1: This signal is sent to the ECM through CAN communication line.

*2: ECM determines the start signal status by the signal of engine speed and battery voltage.
