CAN System Specification Chart

CAN System Specification Chart

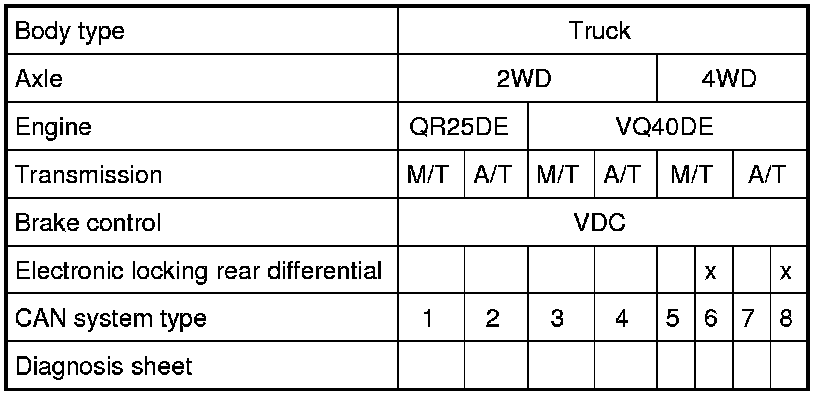

Determine CAN system type from the following specification chart. Then choose the correct diagnosis sheet.

NOTE:

Refer to [LAN System: Basic Inspection] LAN System Basic Inspection for how to use CAN system specification chart.

Diagnosis Sheet (CAN Type 1) Diagnosis Sheet (CAN Type 2) Diagnosis Sheet (CAN Type 3) Diagnosis Sheet (CAN Type 4) Diagnosis Sheet (CAN Type 5) Diagnosis Sheet (CAN Type 6) Diagnosis Sheet (CAN Type 7) Diagnosis Sheet (CAN Type 8)





x: Applicable

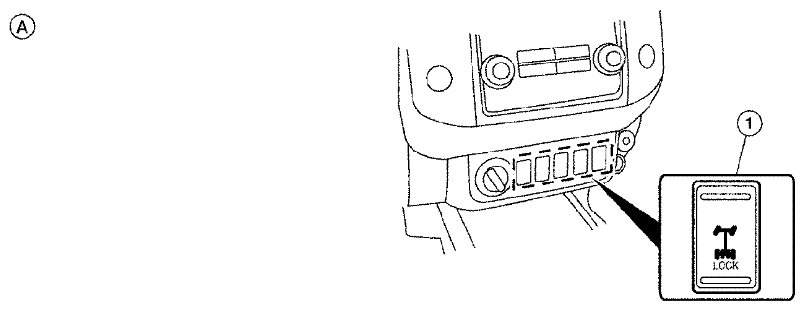

Vehicle Equipment Identification Information

NOTE:

Check CAN system type from the vehicle shape and equipment.
