CAN Communication System Diagram

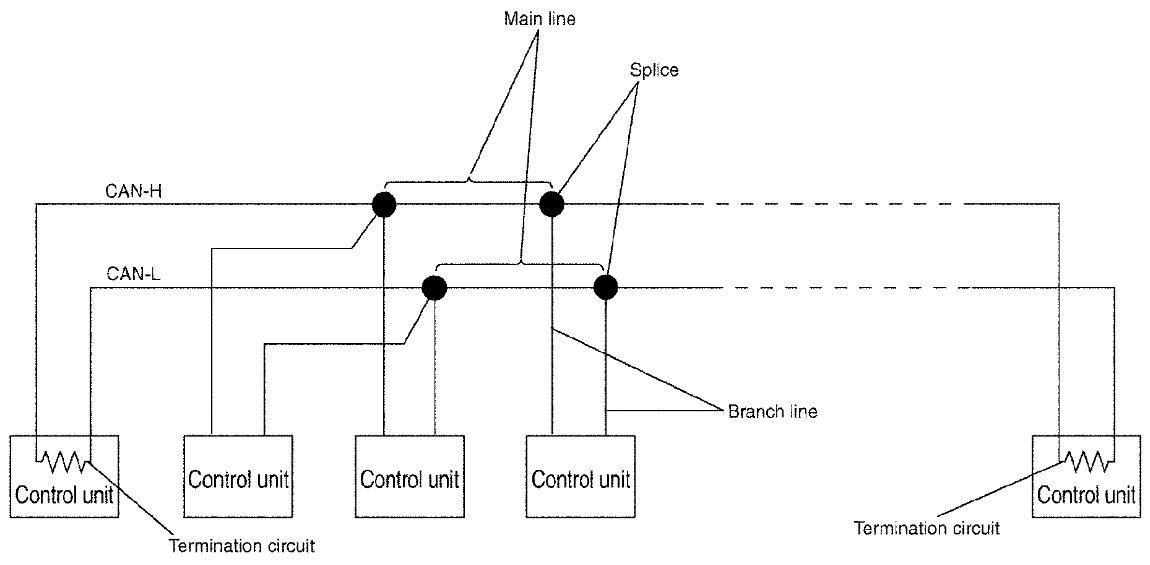

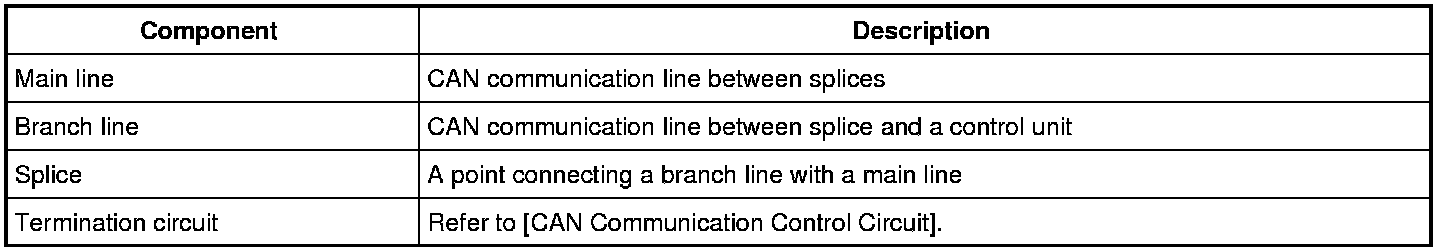

CAN Communication System: System Diagram





Each control unit passes an electric current to the termination circuits when transmitting CAN communication signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN communication system transmits and receives CAN communication signals by the potential difference.

CAN Communication Control Circuit
