Bus Check

Bus Check

Use "Bus check" for detecting the root cause.

Monitor Item List (SDT)

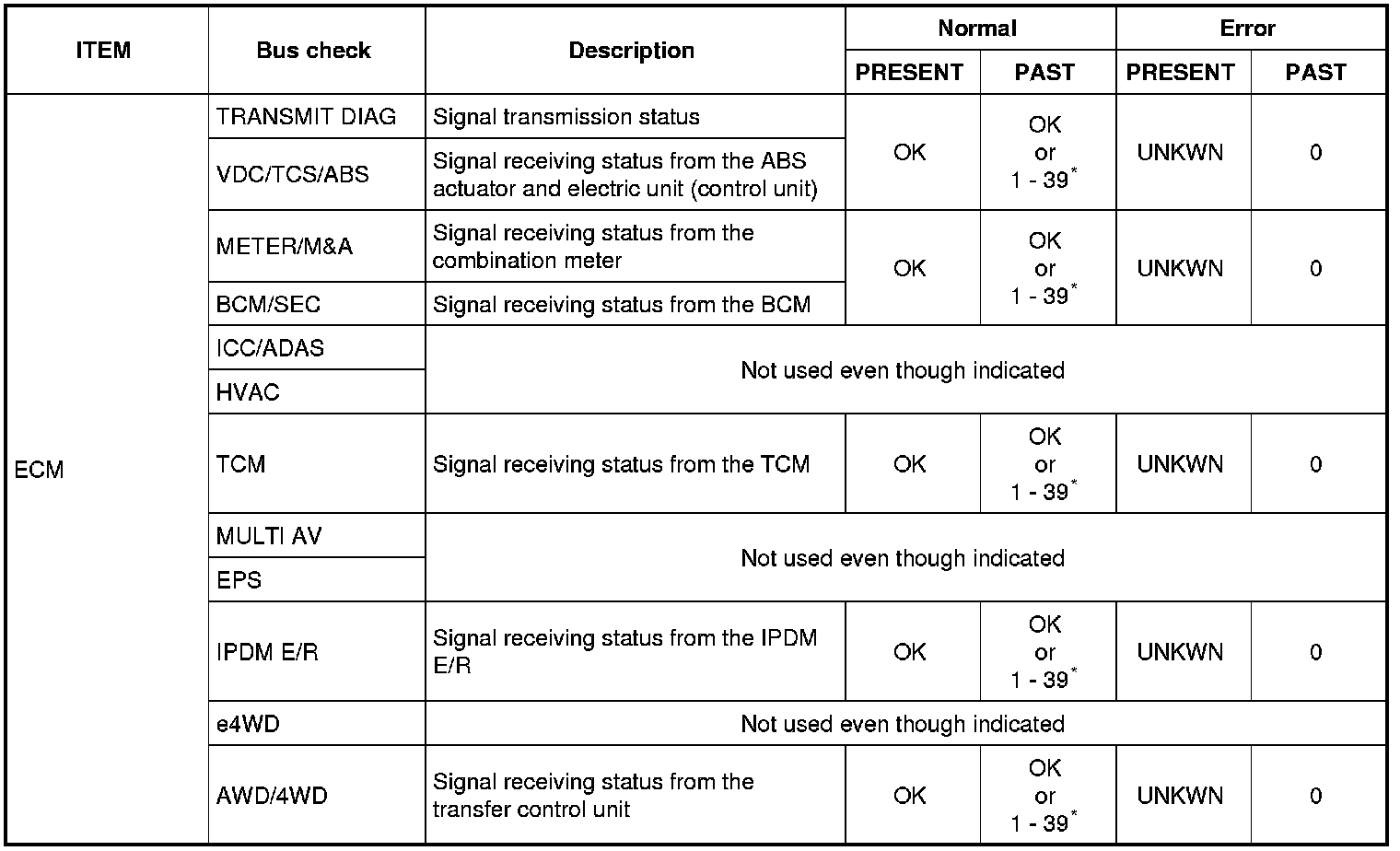

ECM

0: Error at present, 1 - 39: Error in the past (Number means the number of times the ignition switch is turned OFF -> ON)






*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

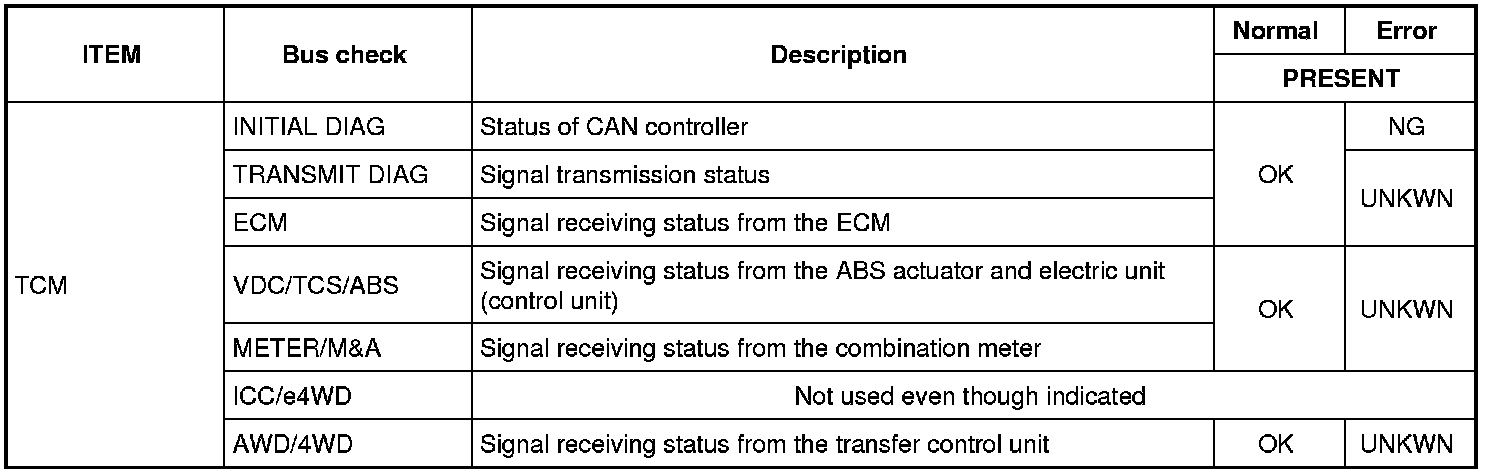

TCM

NOTE:

Replace the unit when "NG" is indicated on the "INITIAL DIAG".

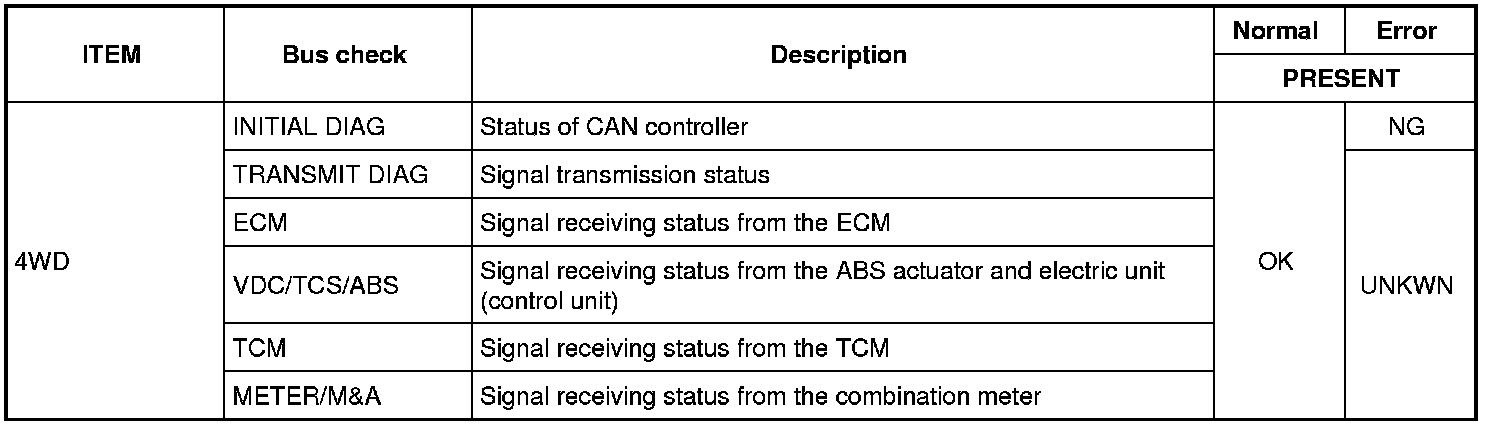

Transfer Control Unit

NOTE:

Replace the unit when "NG" is indicated on the "INITIAL DIAG".

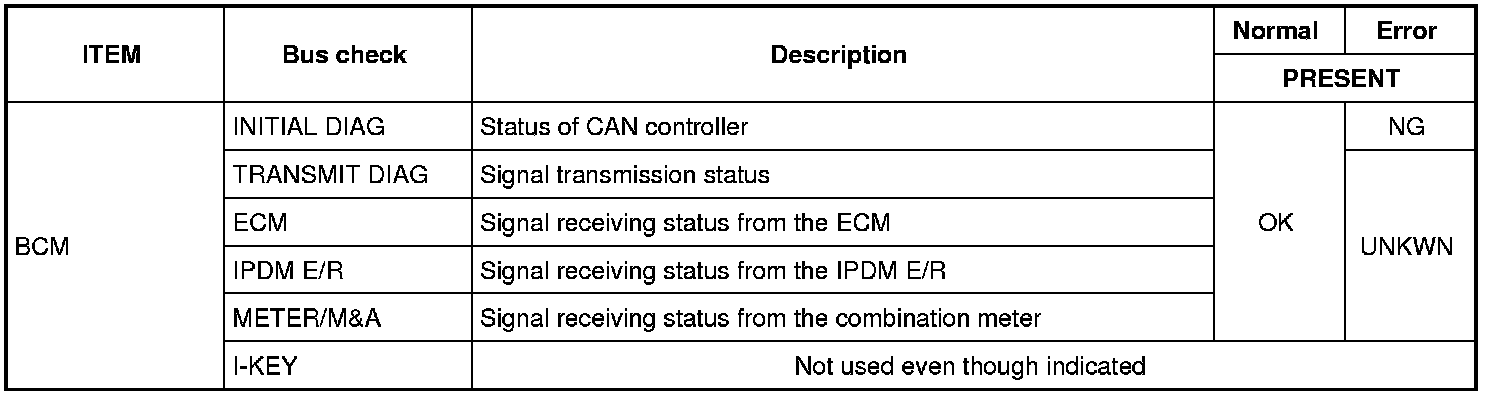

BCM

NOTE:

Replace the unit when "NG" is indicated on the "INITIAL DIAG".

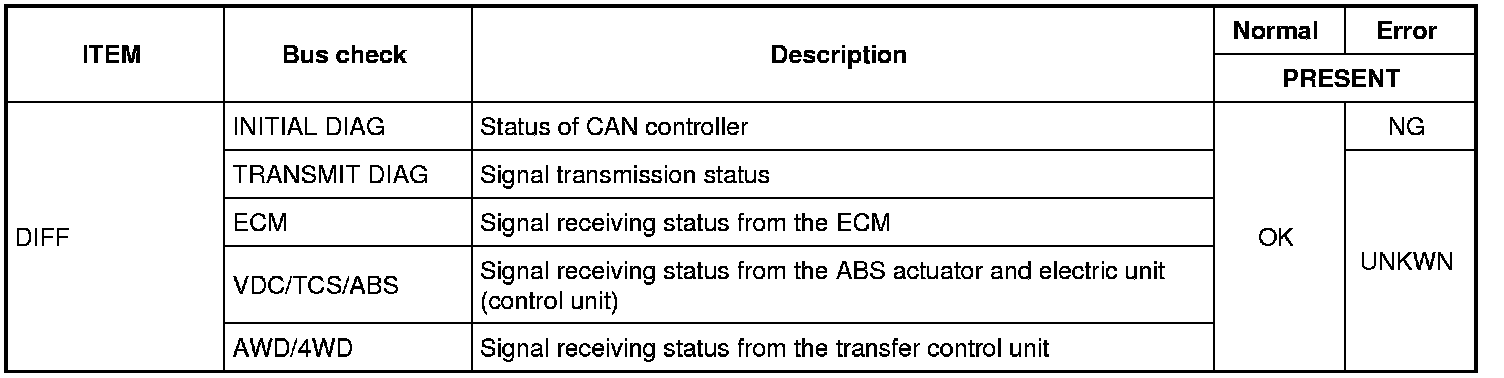

Differential Lock Control Unit

NOTE:

Replace the unit when "NG" is indicated on the "INITIAL DIAG".

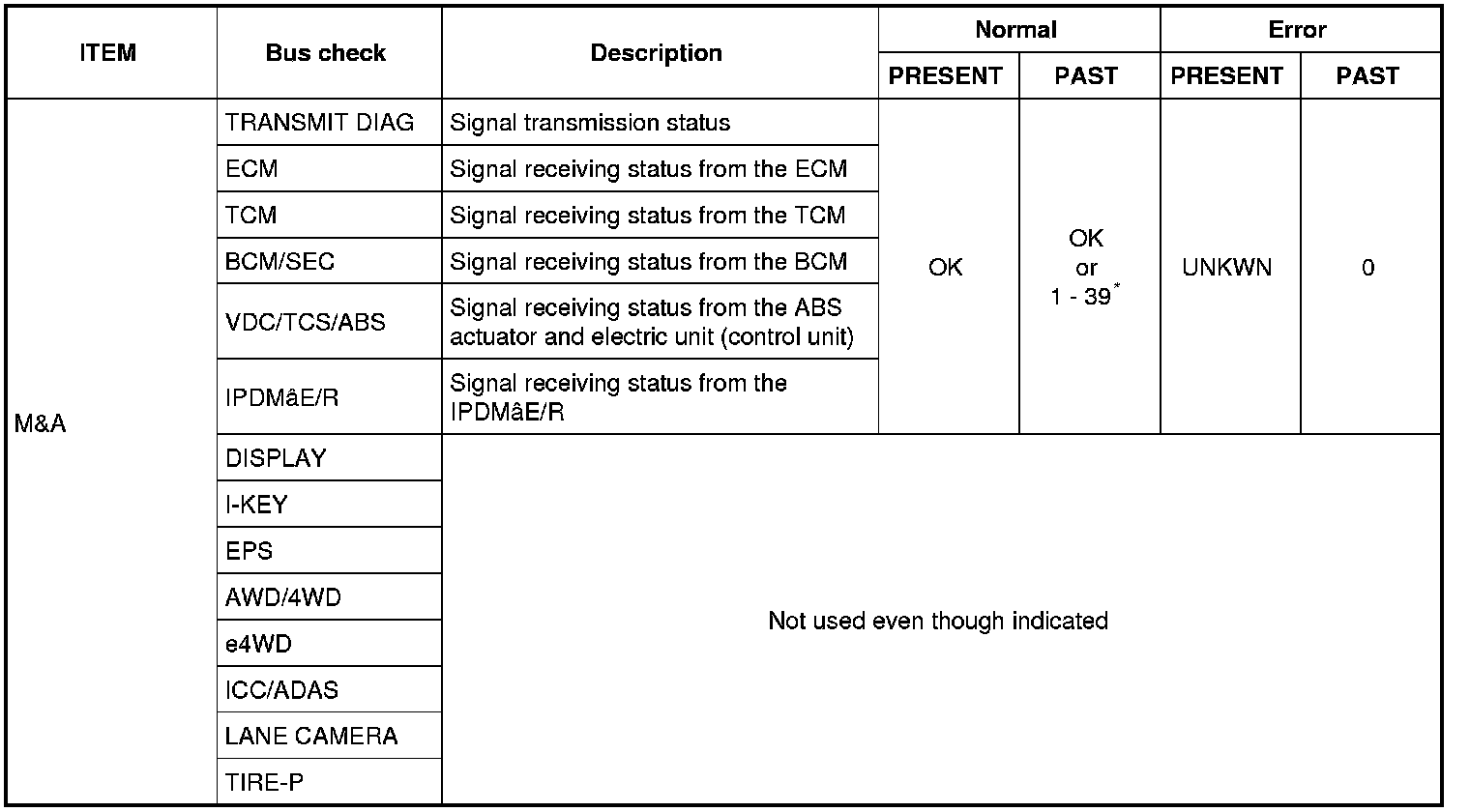

Combination Meter

0: Error at present, 1 - 39: Error in the past (Number means the number of times the ignition switch is turned OFF -> ON)






*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

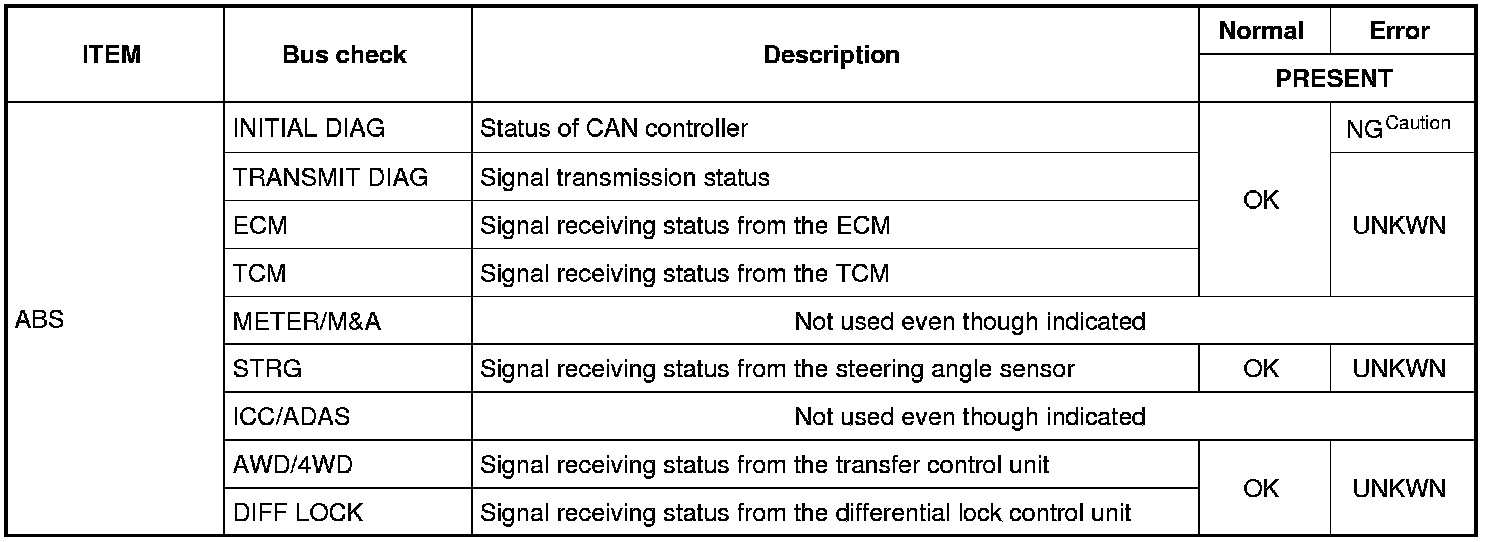

ABS Actuator and Electric Unit (Control Unit)





CAUTION:

Never replace the unit even when "NG" is indicated on the "INITIAL DIAG" at this stage. Follow the trouble diagnosis procedures.

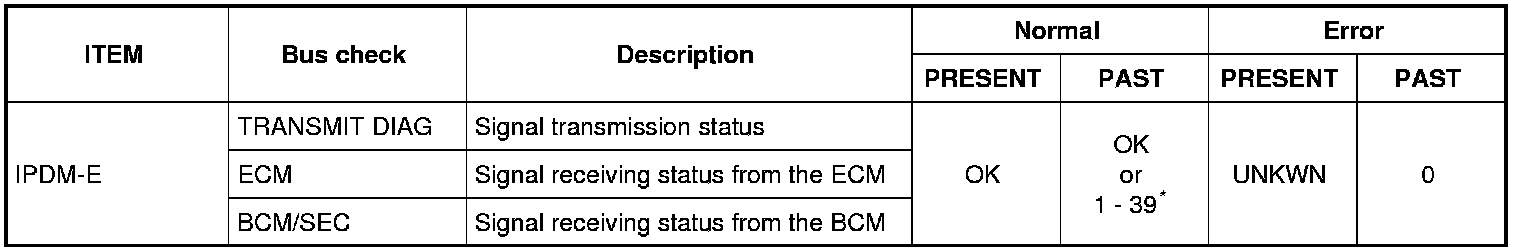

IPDM E/R

0: Error at present, 1 - 39: Error in the past (Number means the number of times the ignition switch is turned OFF -> ON)






*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
