TCM Branch Line Circuit Check

TCM Branch Line Circuit Check

1. CHECK CONNECTOR

1 Turn the ignition switch OFF.
2 Disconnect the battery cable from the negative terminal.
3 Check the terminals and connectors of the A/T assembly for damage, bend and loose connection (unit side and connector side).

Is the inspection result normal?
YES
GO TO 2.
NO
Repair the terminal and connector.

2. CHECK HARNESS FOR OPEN CIRCUIT

1 Disconnect the connector of A/T assembly.

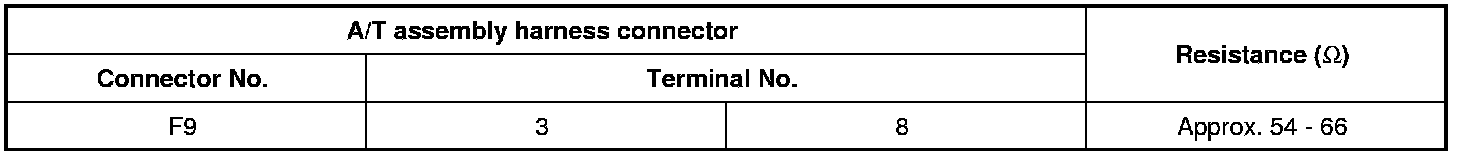

2 Check the resistance between the A/T assembly harness connector terminals.






Is the measurement value within the specification?
YES
GO TO 3.
NO
Repair the TCM branch line.

3. CHECK HARNESS FOR OPEN CIRCUIT

1 Remove the control valve with TCM. Refer to [Control Valve with TCM: Removal and Installation] Service and Repair.
2 Disconnect the connector of TCM.

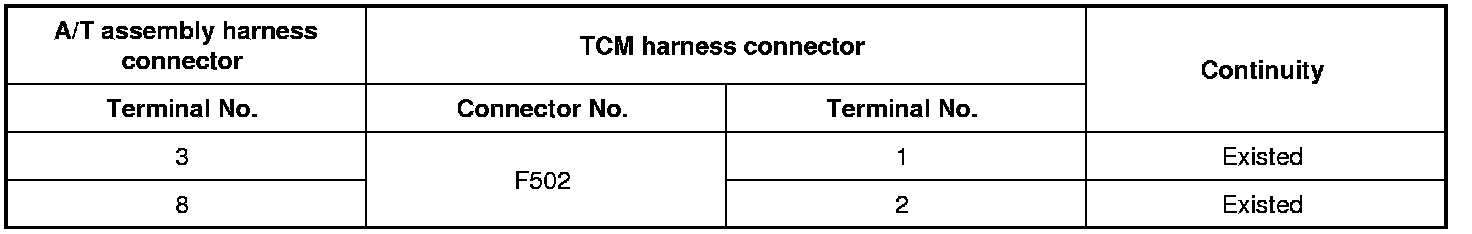

3 Check the continuity between the A/T assembly harness connector and TCM harness connector.






Is the inspection result normal?
YES
GO TO 4.
NO
Repair the harness between the A/T assembly harness connector and the TCM harness connector.

4. CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the TCM. Refer to [Main Power Supply and Ground Circuit Check] Main Power Supply and Ground Circuit Check.

Is the inspection result normal?
YES (Present error)
Replace the control valve with TCM. Refer to [Control Valve with TCM: Removal and Installation] Service and Repair.
YES (Past error)
Error was detected in the TCM branch line.
NO
ERROR! Unknown action!Repair the power supply and the ground circuit.
