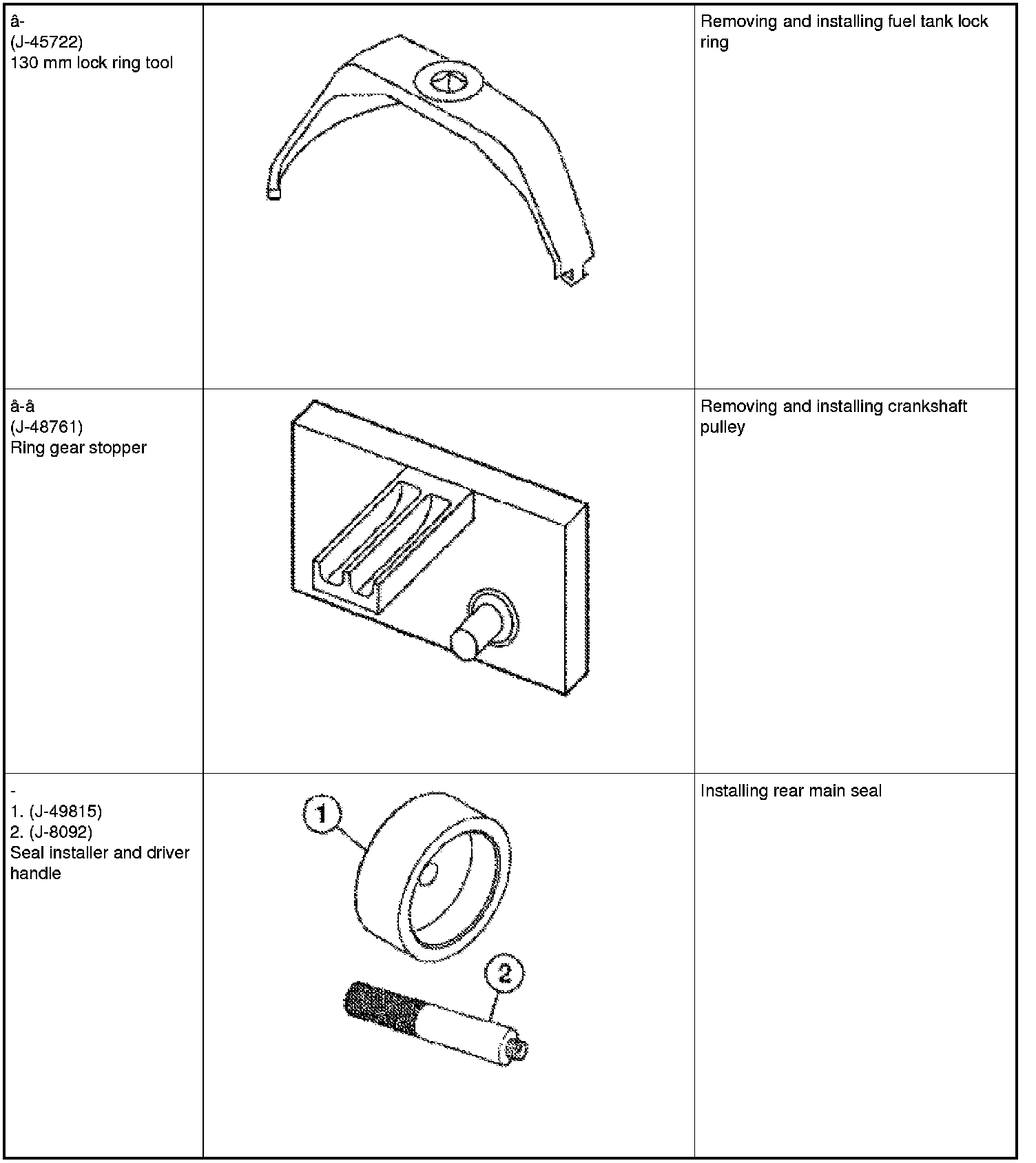

Special Service Tool




Special Service Tool

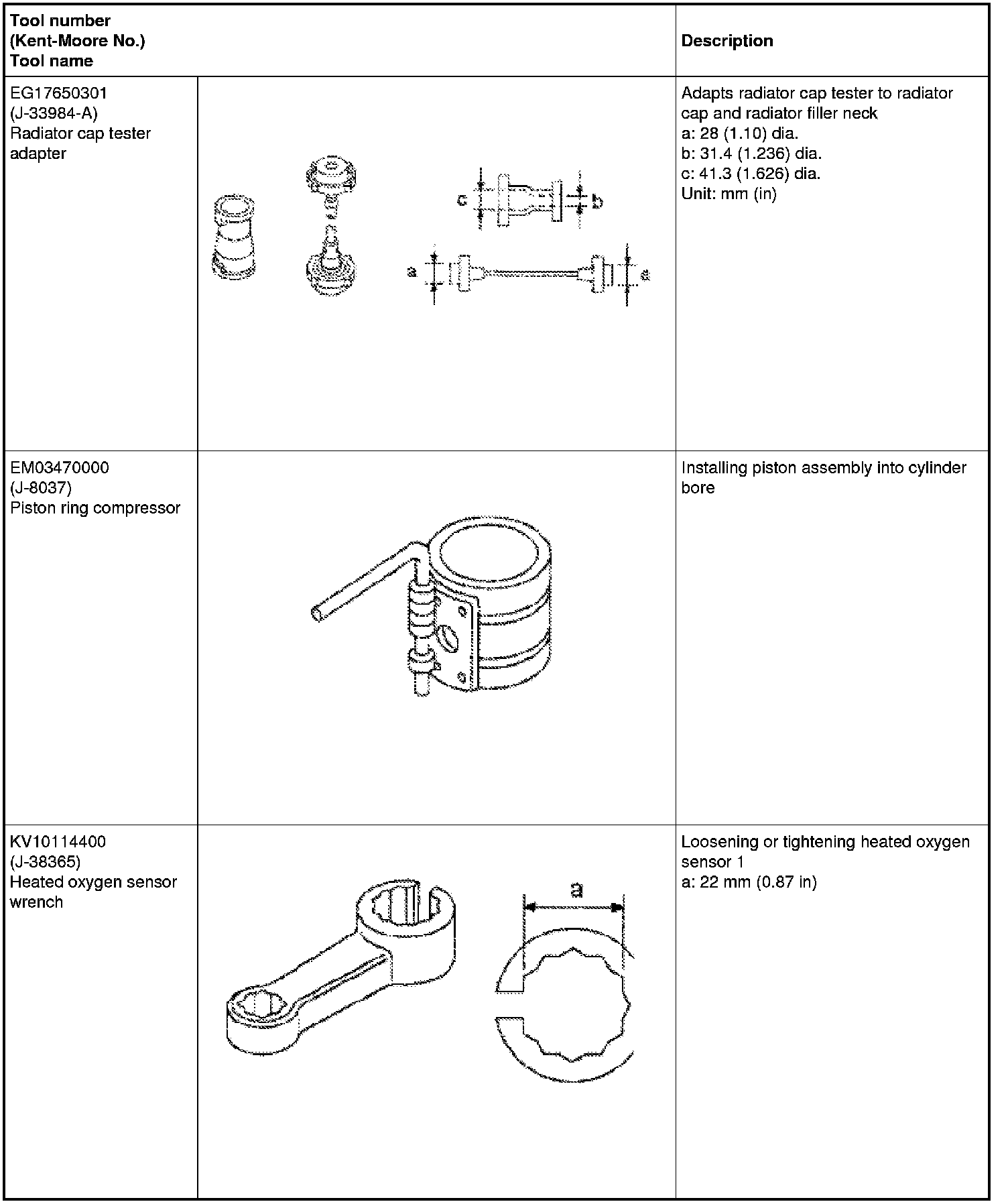

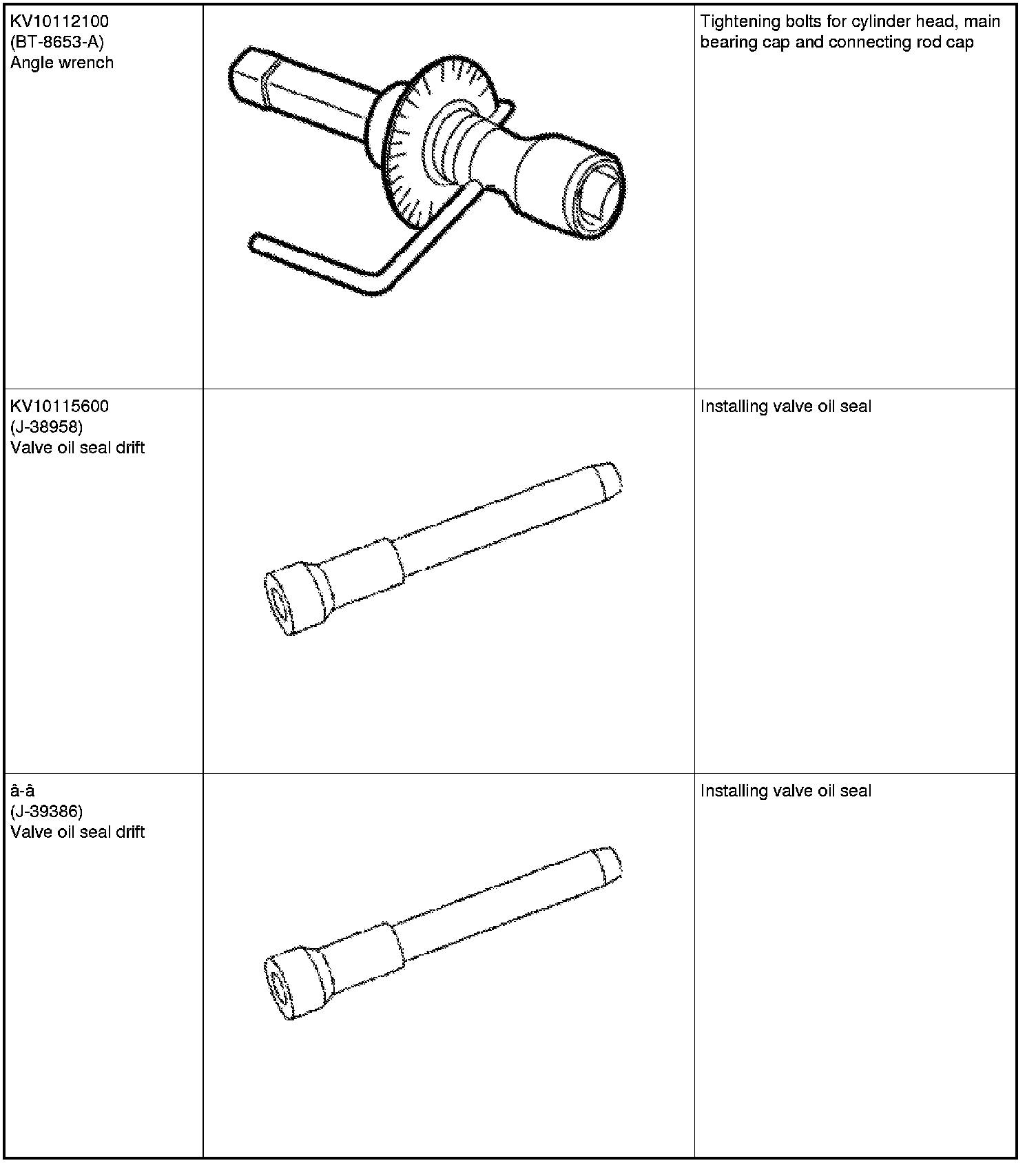

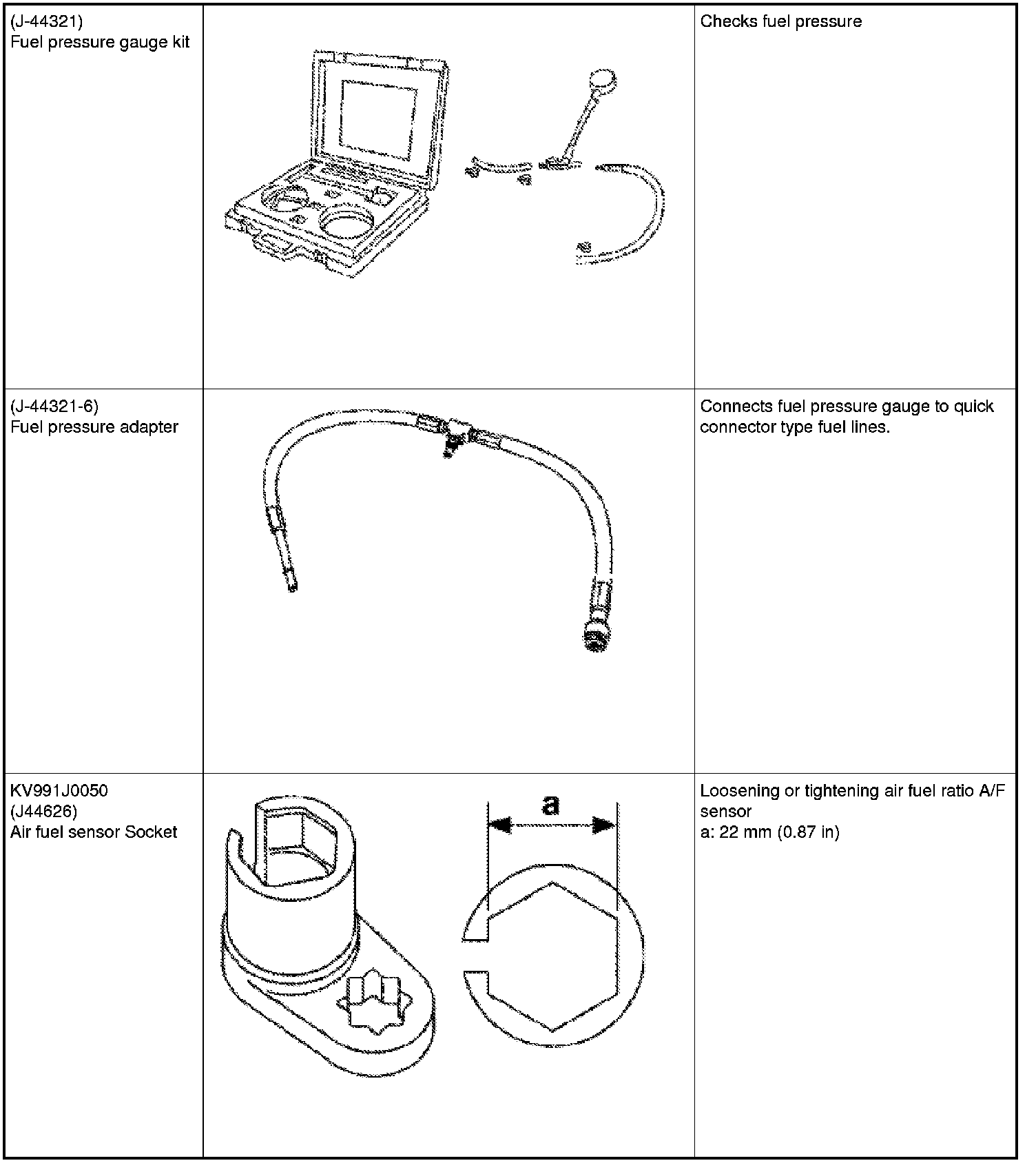

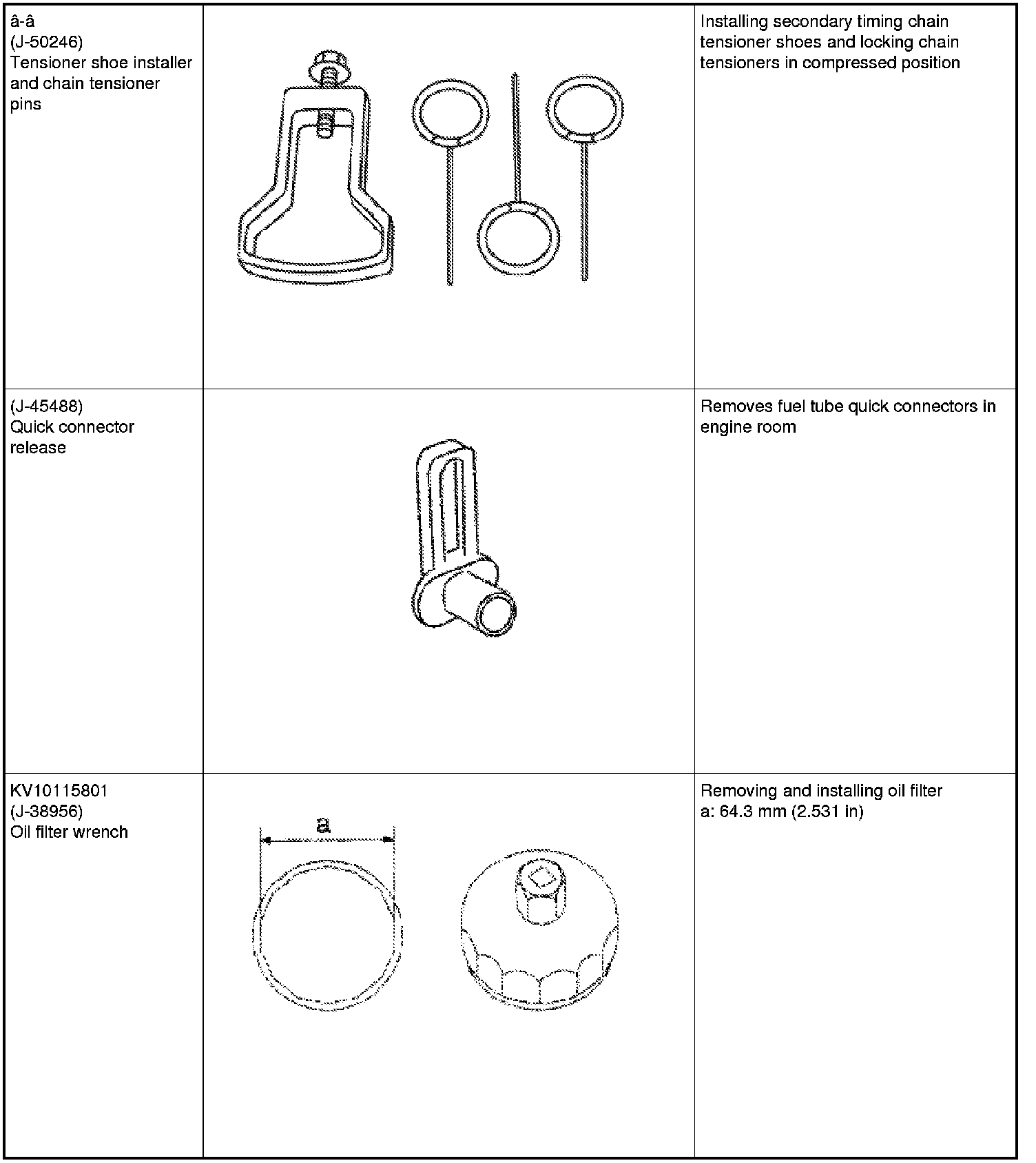

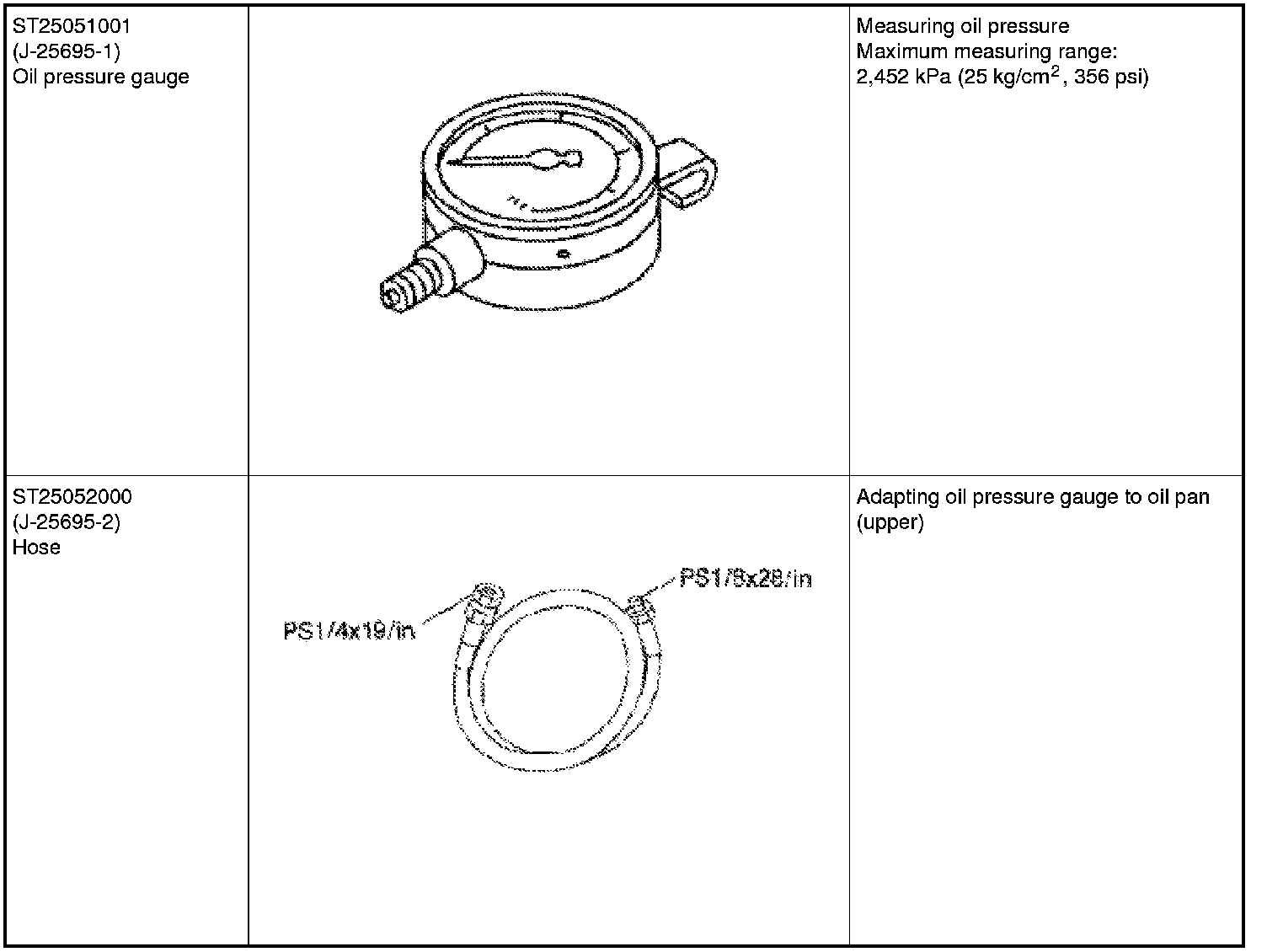

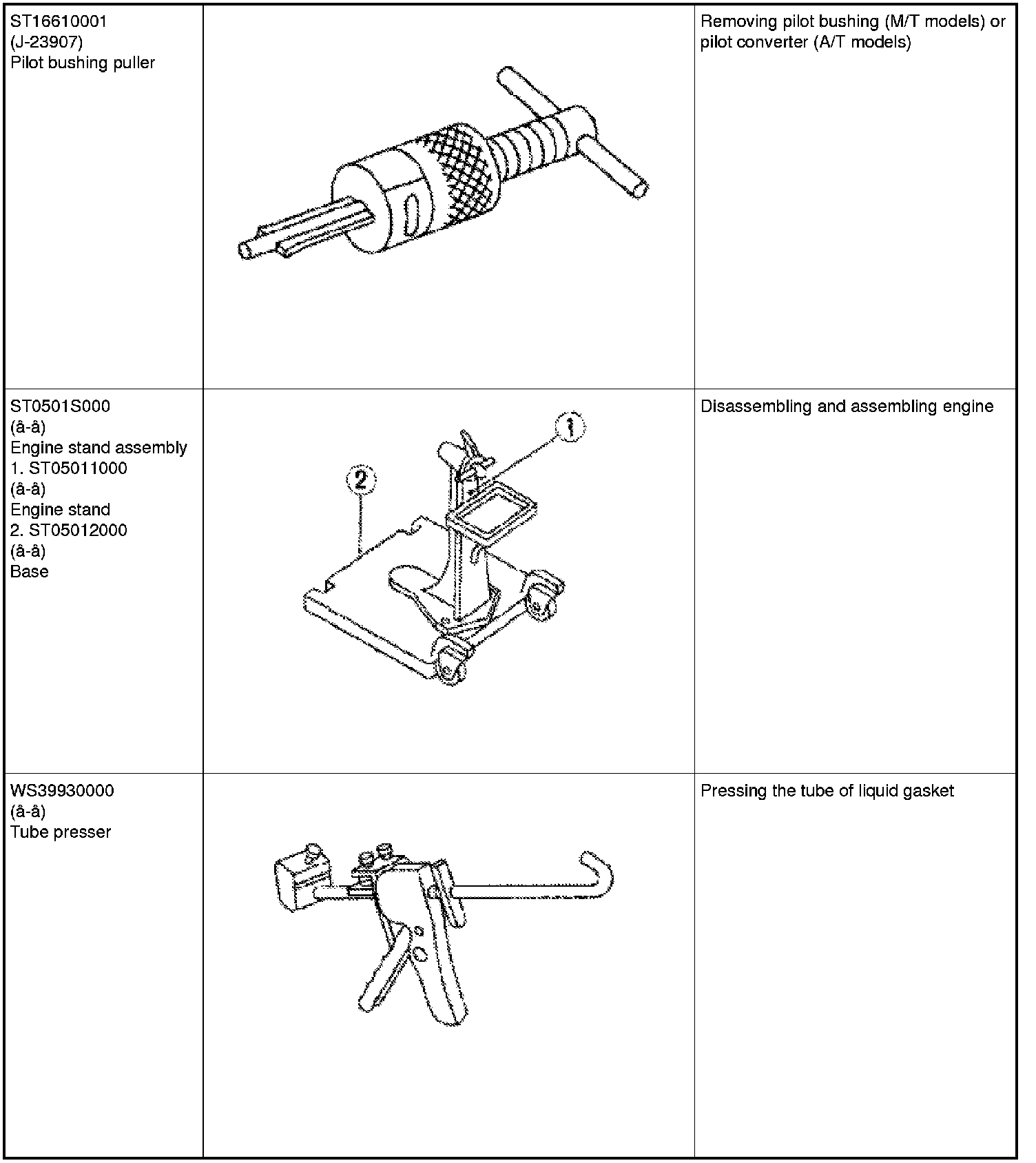

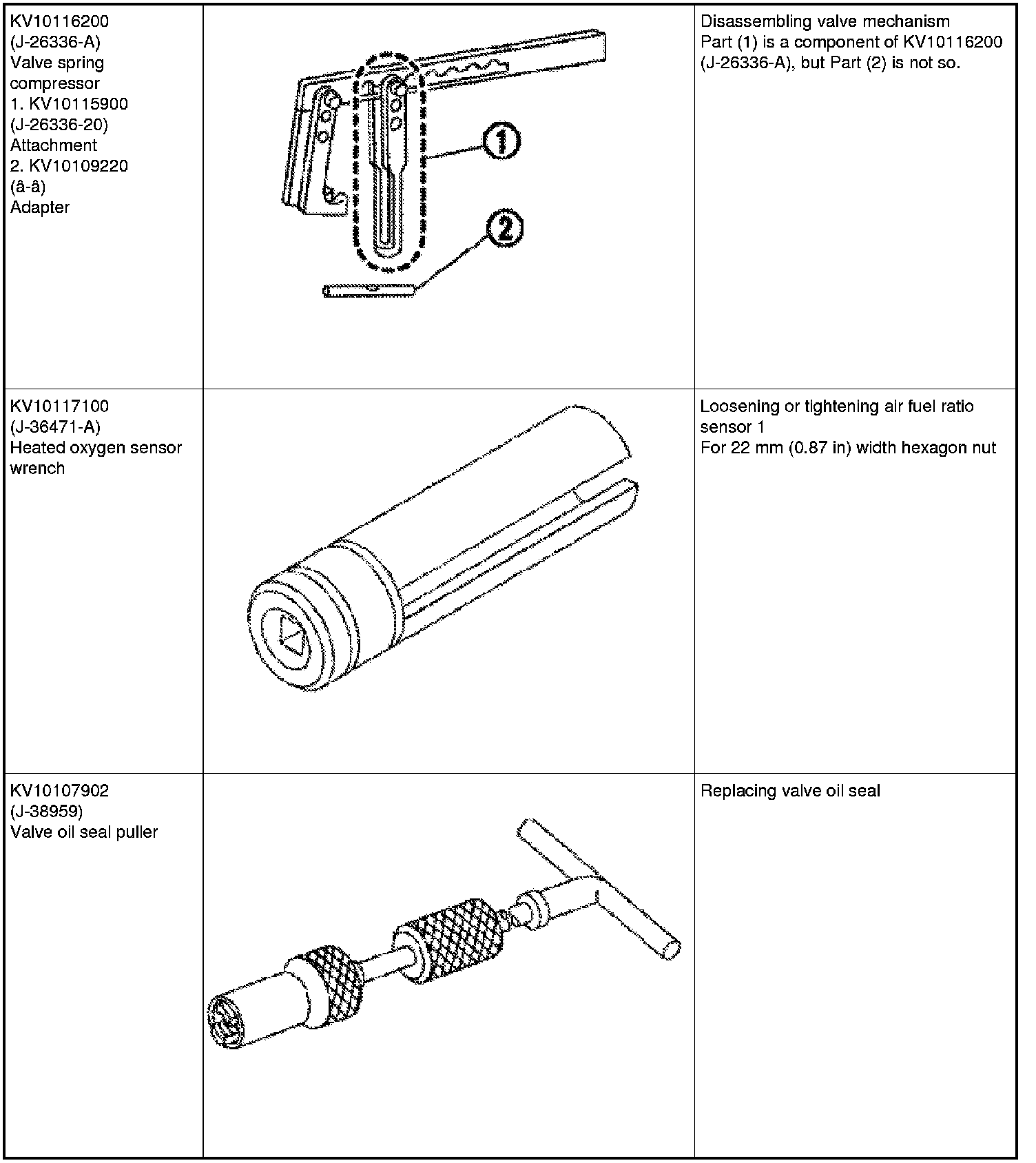

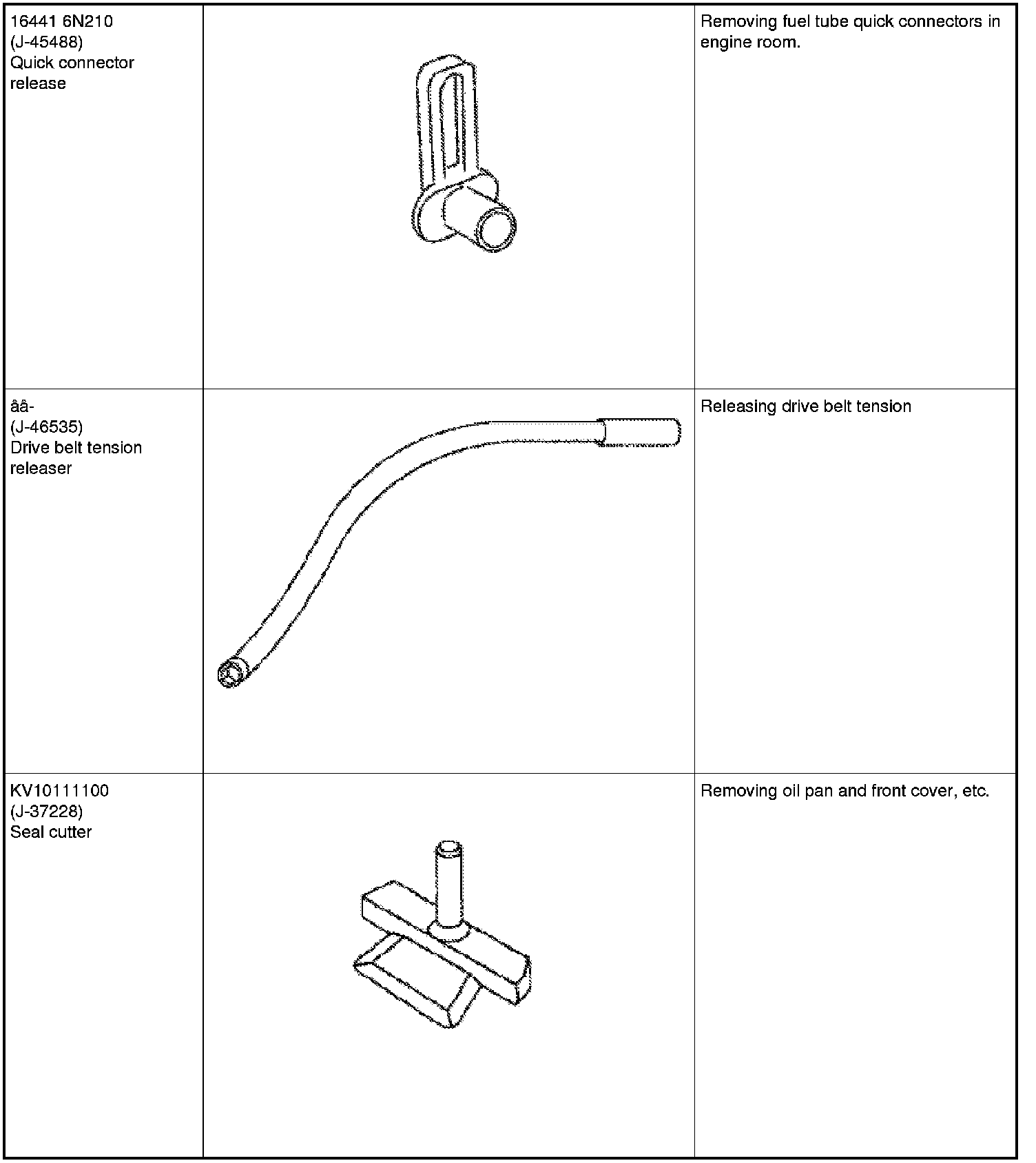

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
