System Specifications




Service Data and Specifications

Engine Coolant Capacity (Approximate)

Unit: (US qt, Imp qt)

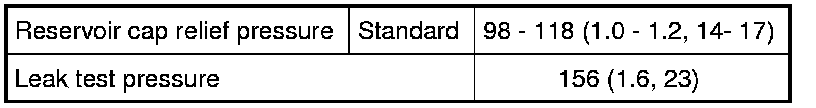

Radiator

Unit: kPa (kg/cm2, psi)

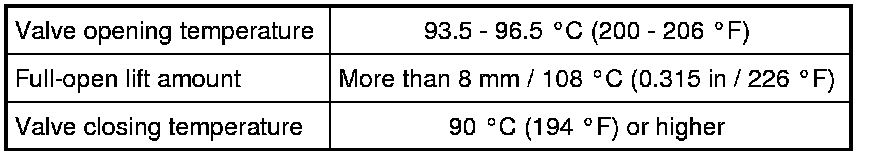

Thermostat

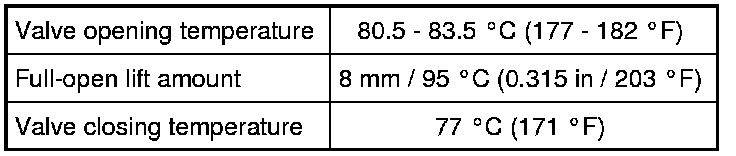

Water Control Valve
