System Specifications




Service Data and Specifications

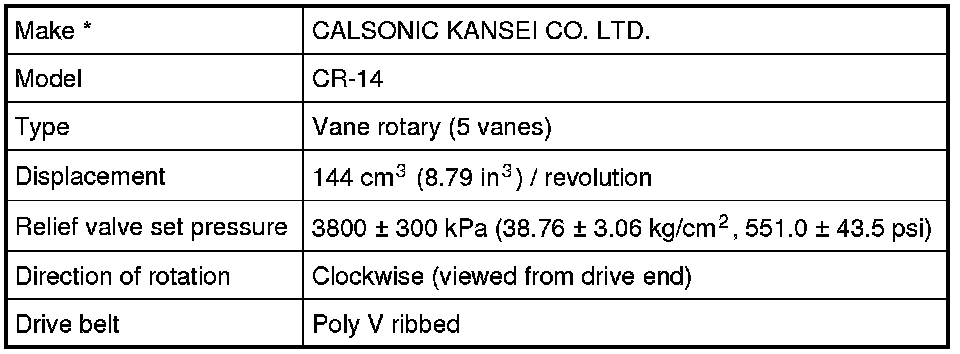

Compressor

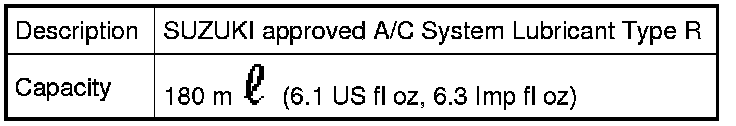

Oil

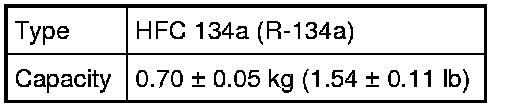

Refrigerant





*: Always check with the part department for latest parts information.
