Charging System




Service Data and Specifications

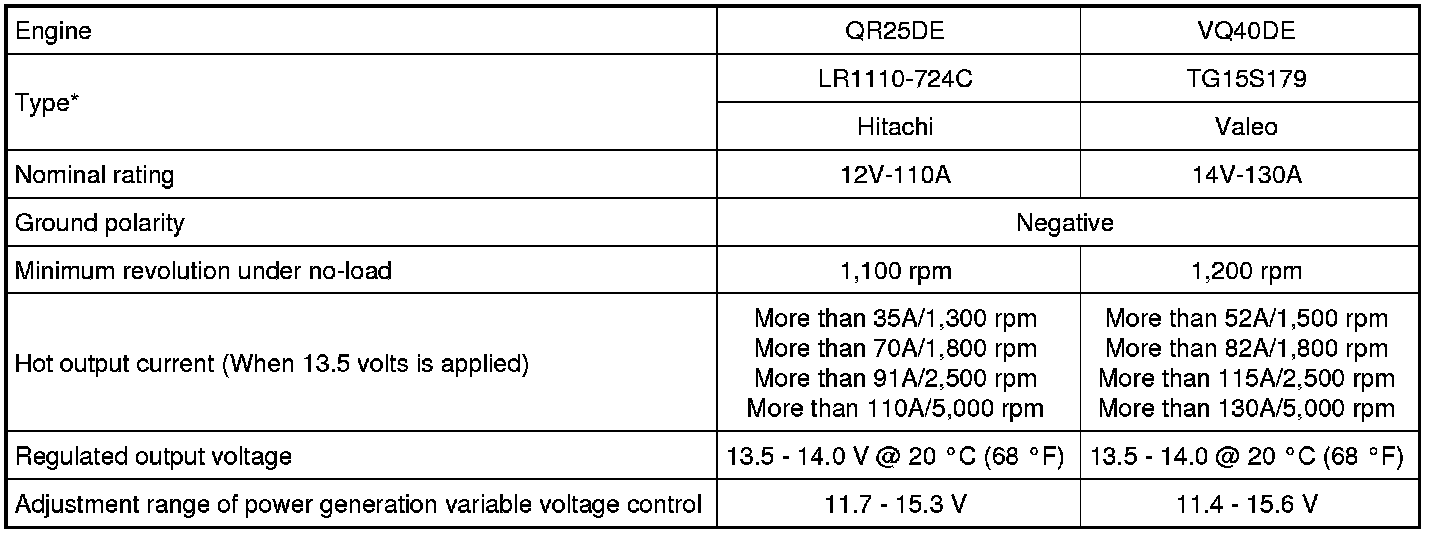

Generator





*: Always check with the Parts Department for the latest parts information

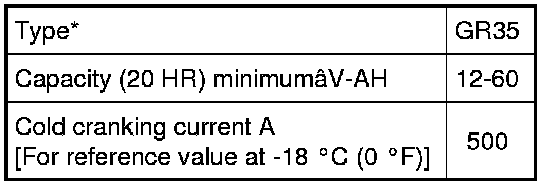

Battery





*: Always check with the Parts Department for the latest parts information.
