System Specifications




Service Data and Specifications

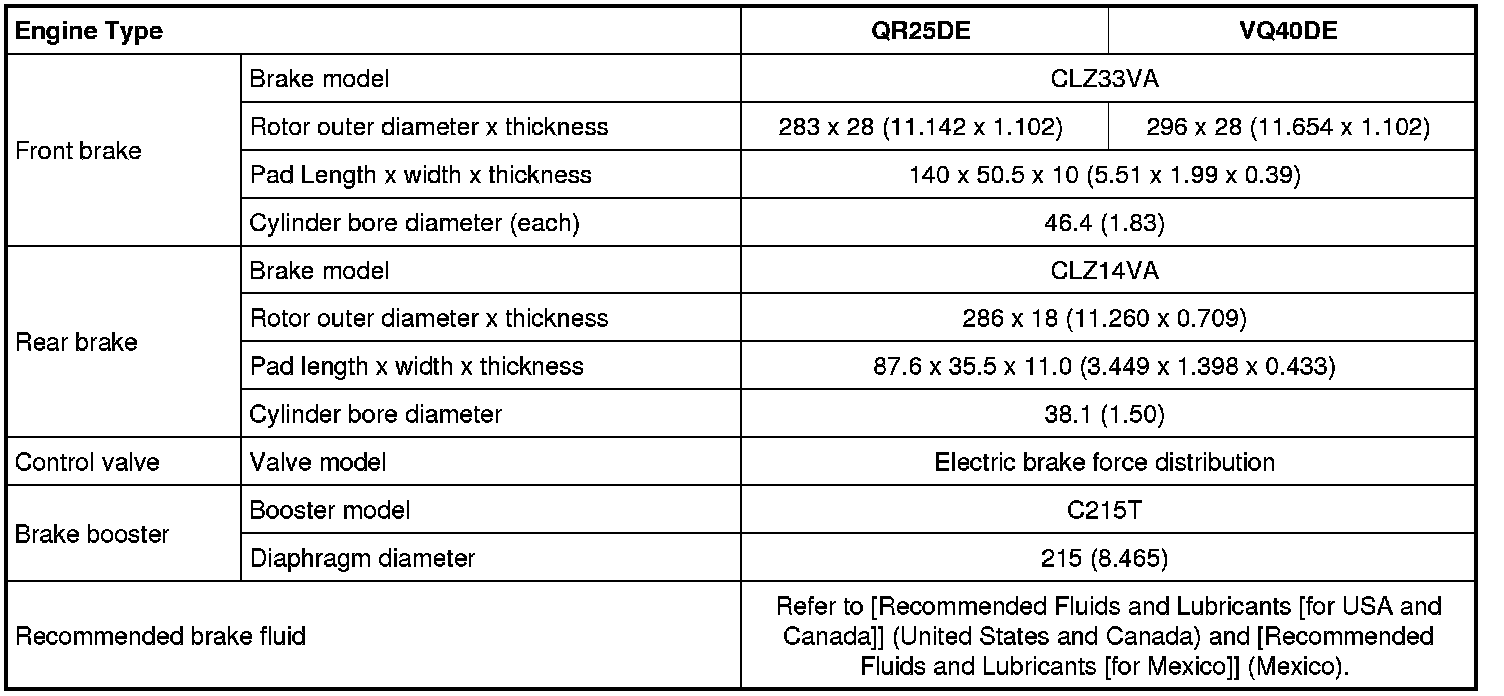

General Specification

Unit: mm (in)
[1][2]Maintenance

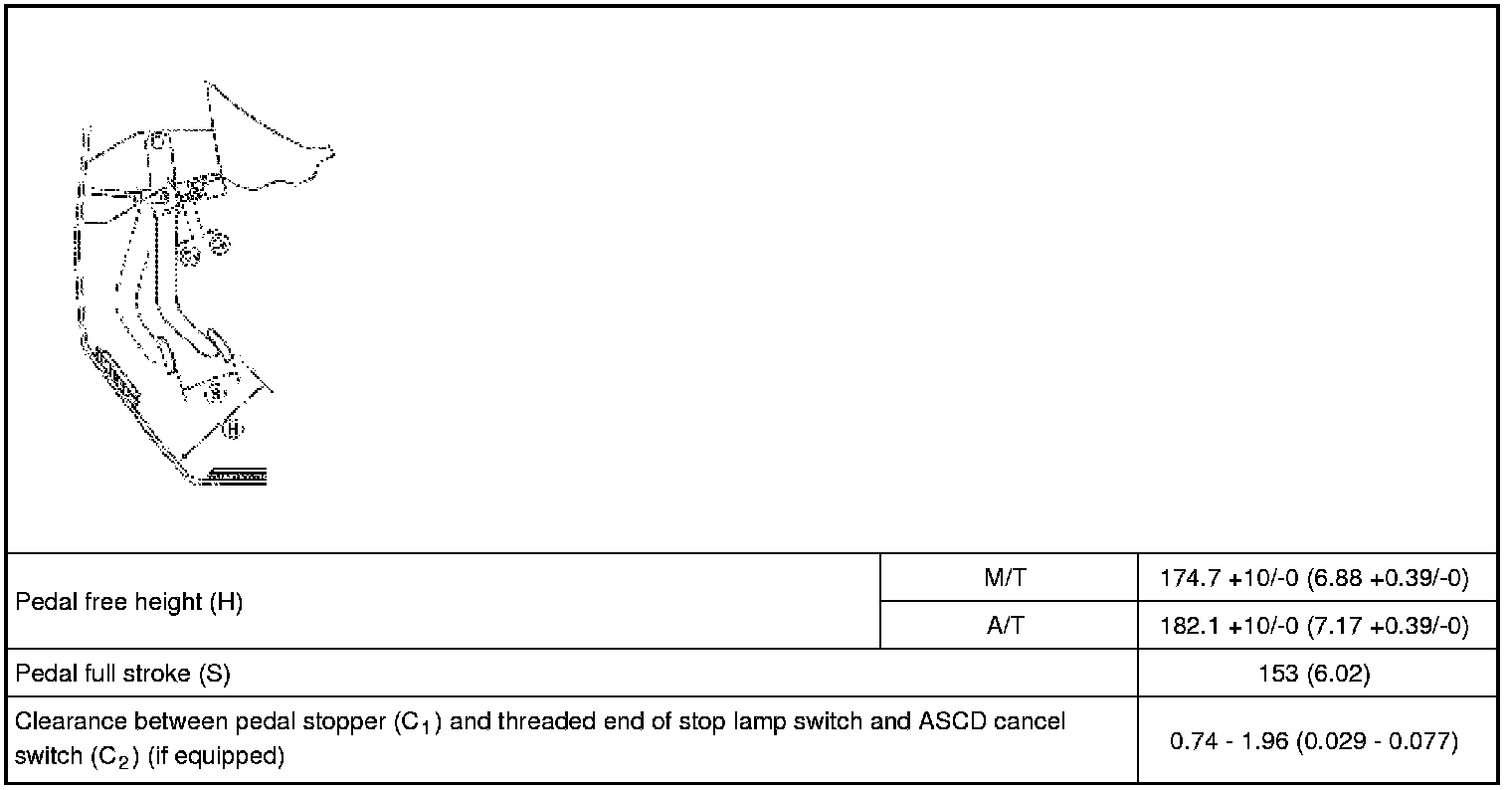

Brake Pedal

Unit: mm (in)

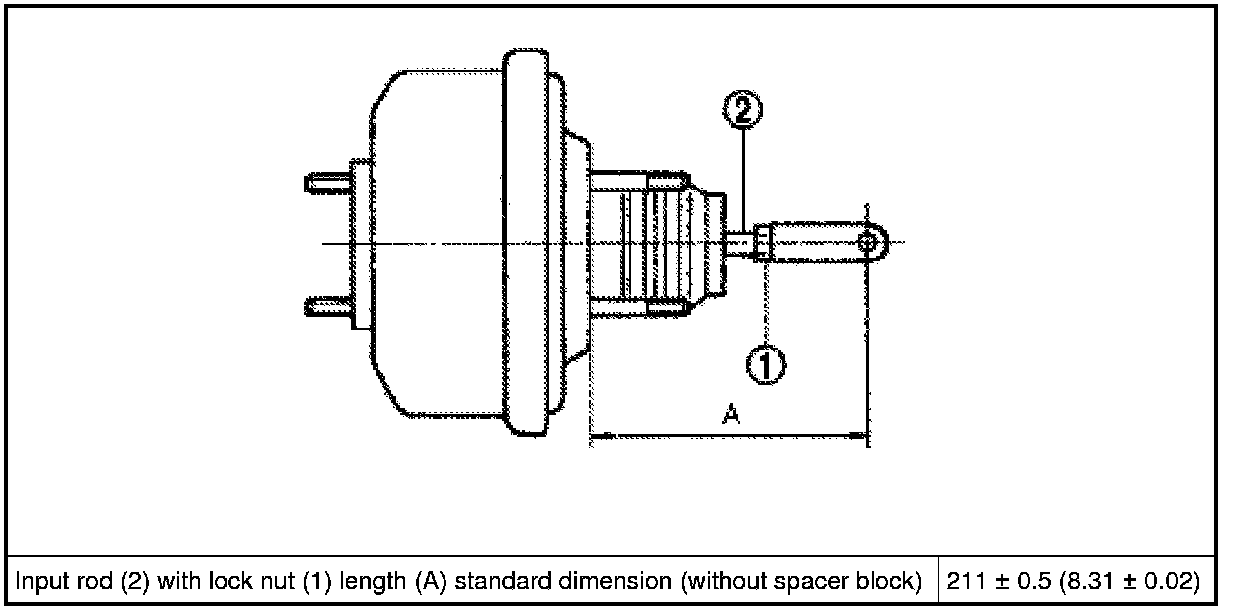

Brake Booster

Unit: mm (in)






Check Valve
