Connecting Rod, Engine





Connecting Rod

Unit: mm (in)






1: Always check with the Parts Department for the latest parts information.

2: After installing in connecting rod

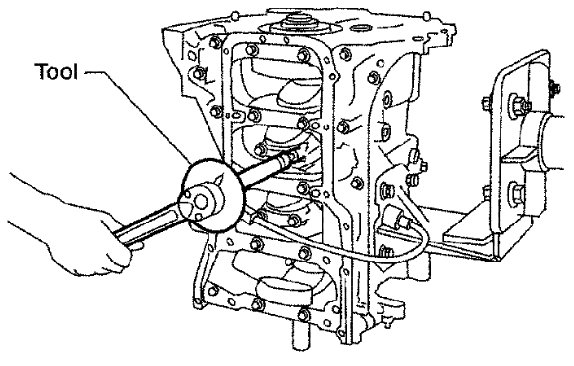

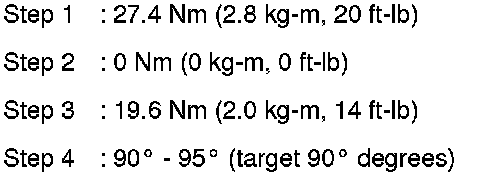

Tighten the connecting rod bolts using Tool in four steps as follows:
