Timing Cover

Timing Cover

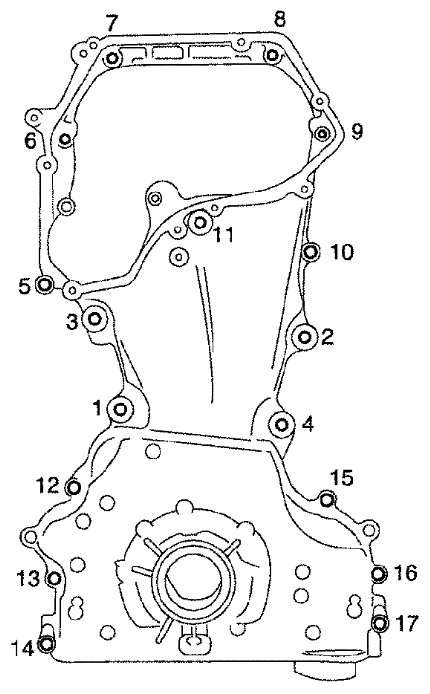

Tighten bolts in numerical order as shown.

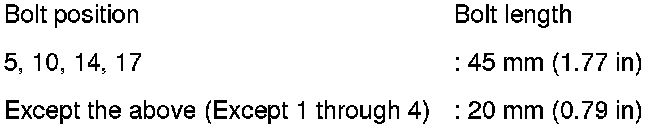

Use the following for locating M6 bolts.

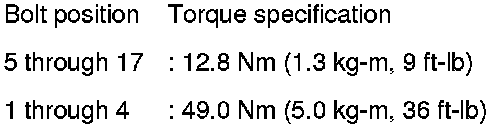

Tighten bolts to the specified torque.






After all bolts are tightened, retighten them to the specified torque in numerical order as shown.
