Manual Transmission/Transaxle

Service Data and Specifications

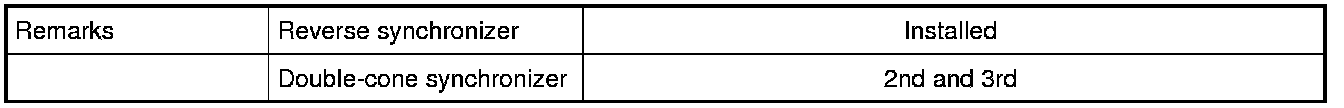

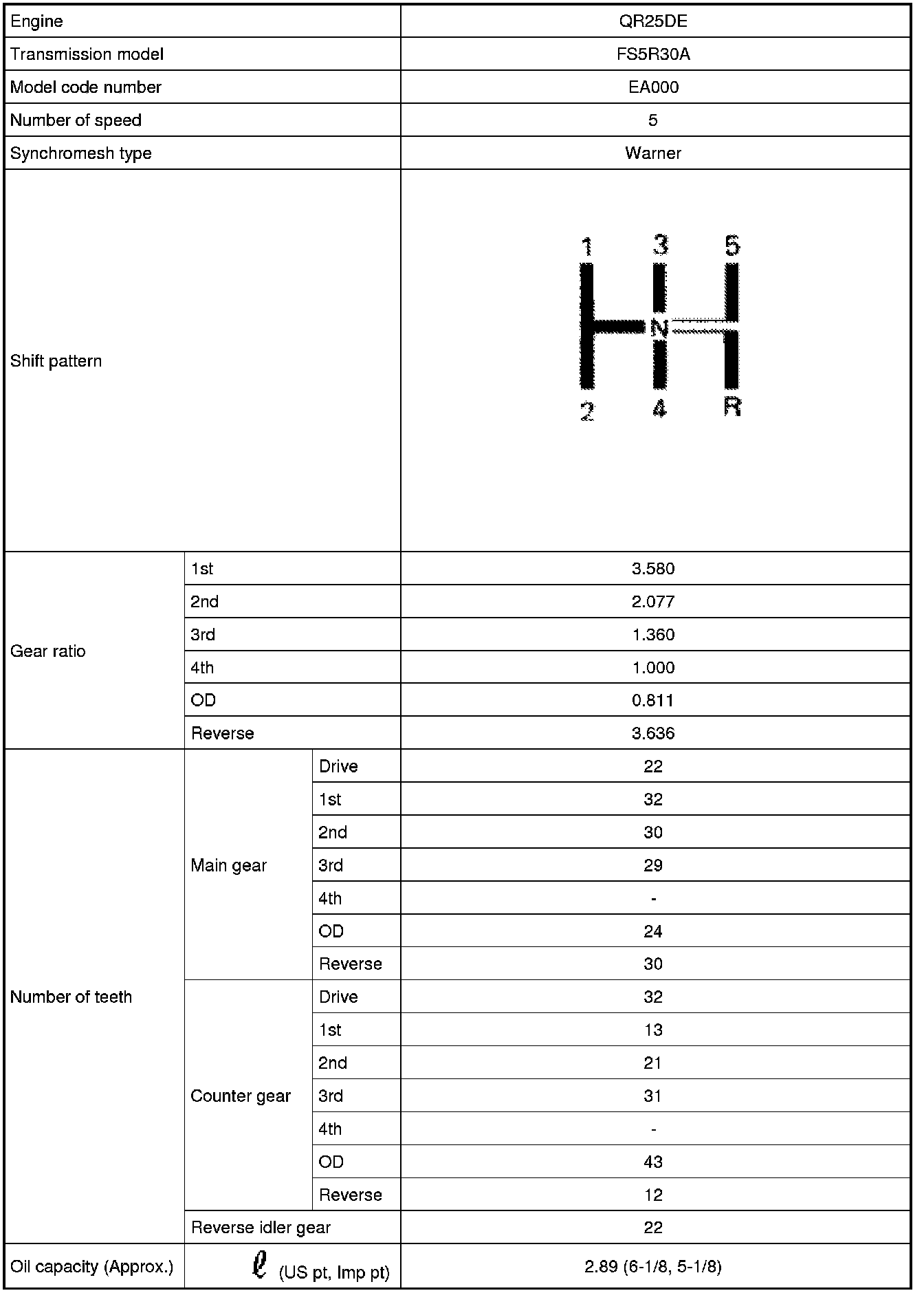

General Specification

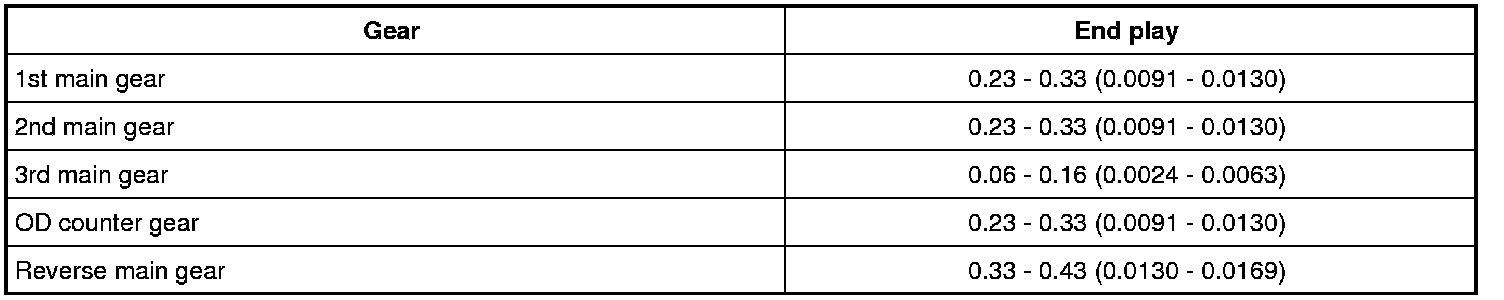

Gear End Play

Unit: mm (in)

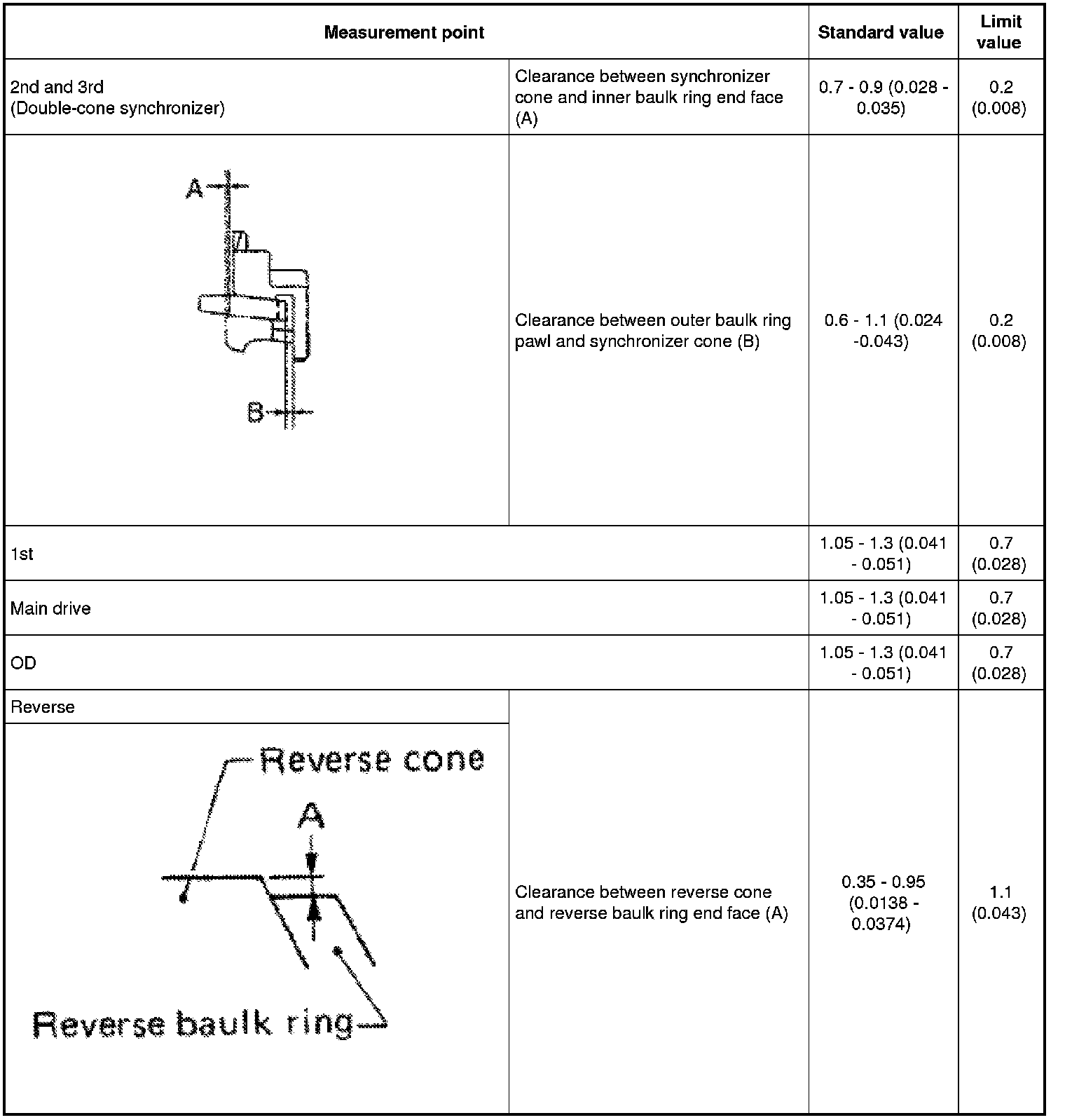

Baulk Ring Clearance

Unit: mm (in)






Available Snap Rings

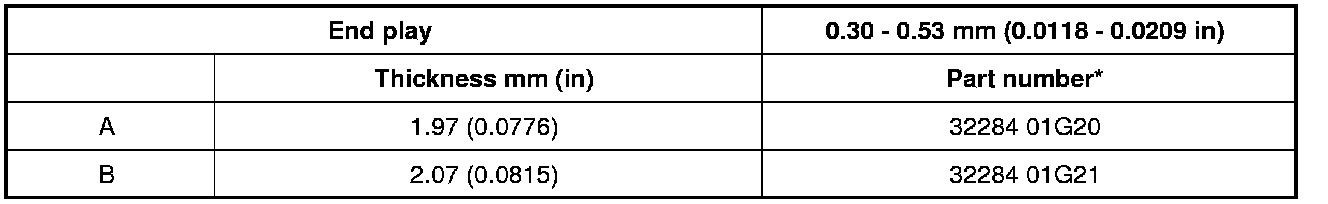

Main Drive Gear Snap Ring





*: Always check with the Parts Department for the latest parts information.

Mainshaft Front Snap Ring





*: Always check with the Parts Department for the latest parts information.

Counter Gear Rear Snap Ring





*: Always check with the Parts Department for the latest parts information.

Available C-Rings

Mainshaft C-Ring





*: Always check with the Parts Department for the latest parts information.

Available Thrust Washer

Reverse Idler Thrust Washer





*: Always check with the Parts Department for the latest parts information.

Available Shims

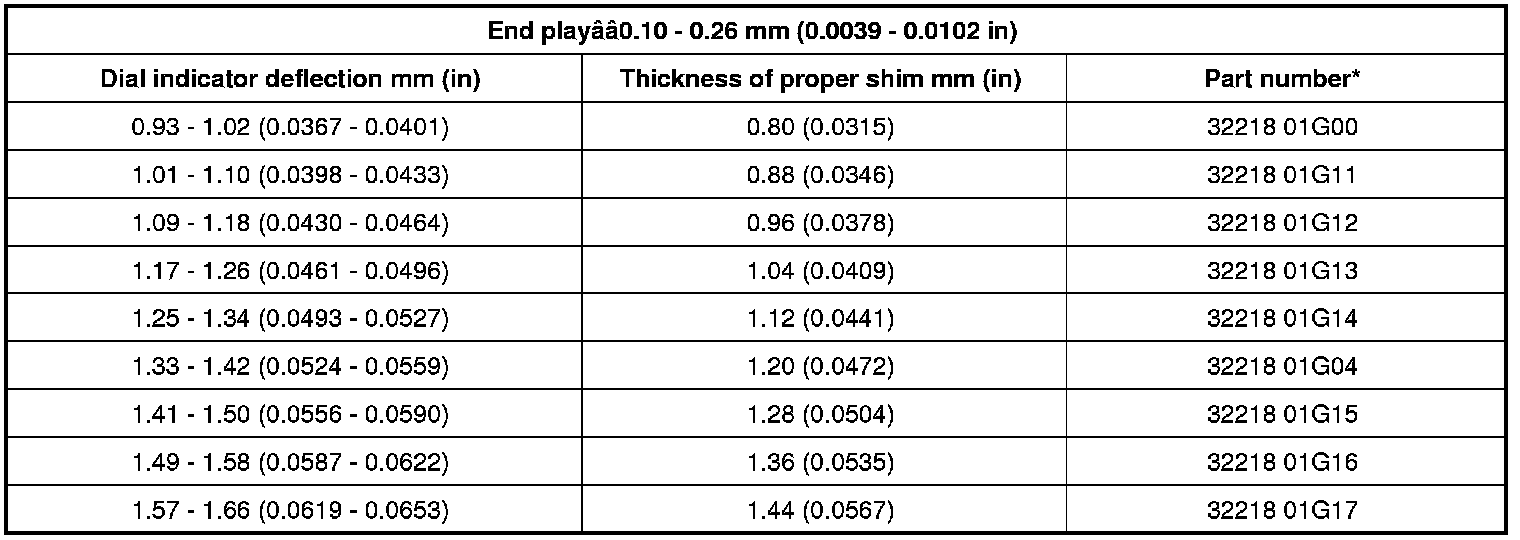

Table for Selecting Proper Counter Gear Front Bearing Shim





*: Always check with the Parts Department for the latest parts information.
