Scan Tool Testing and Procedures

SDT Function (AT)

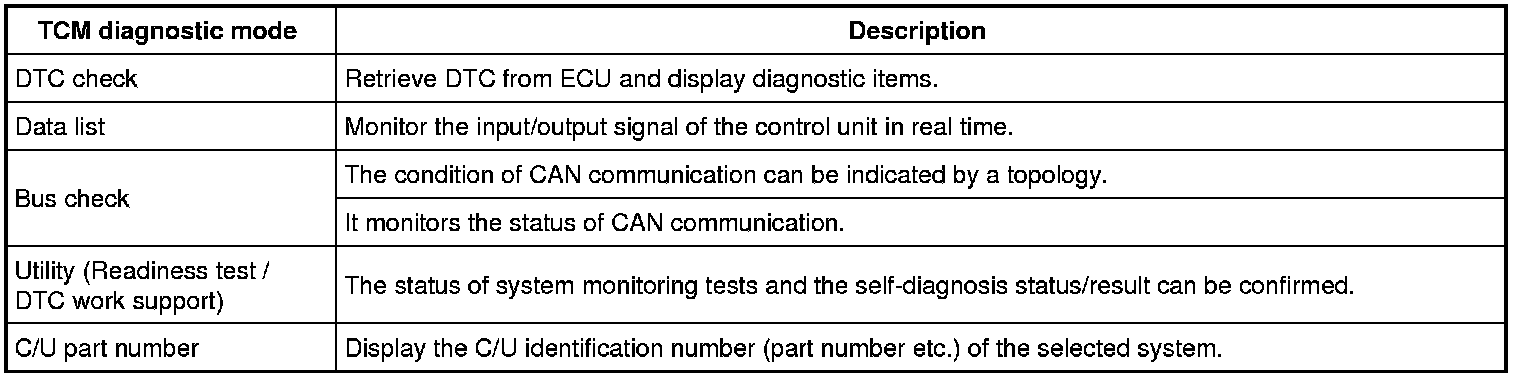

Function






DTC Check Mode

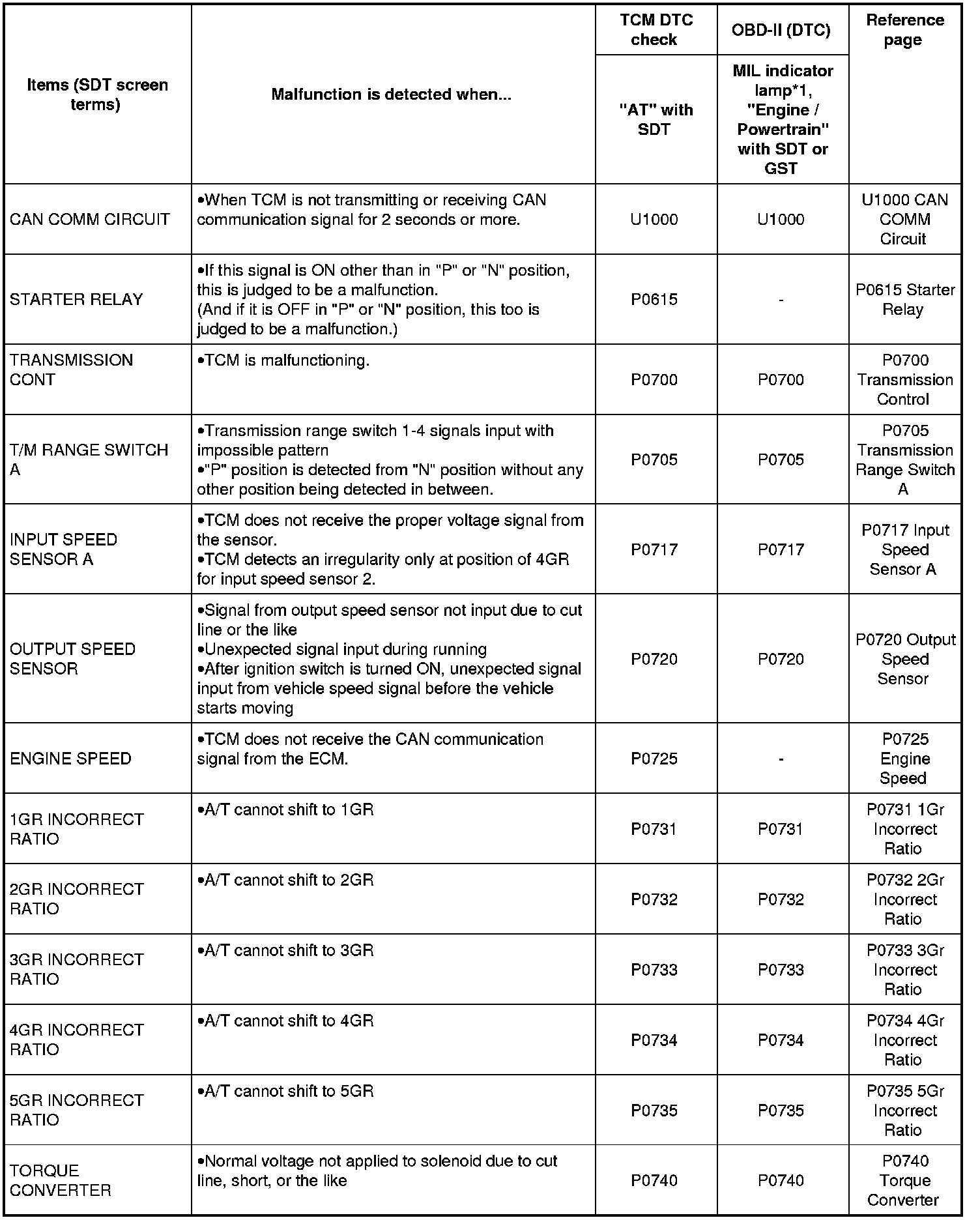

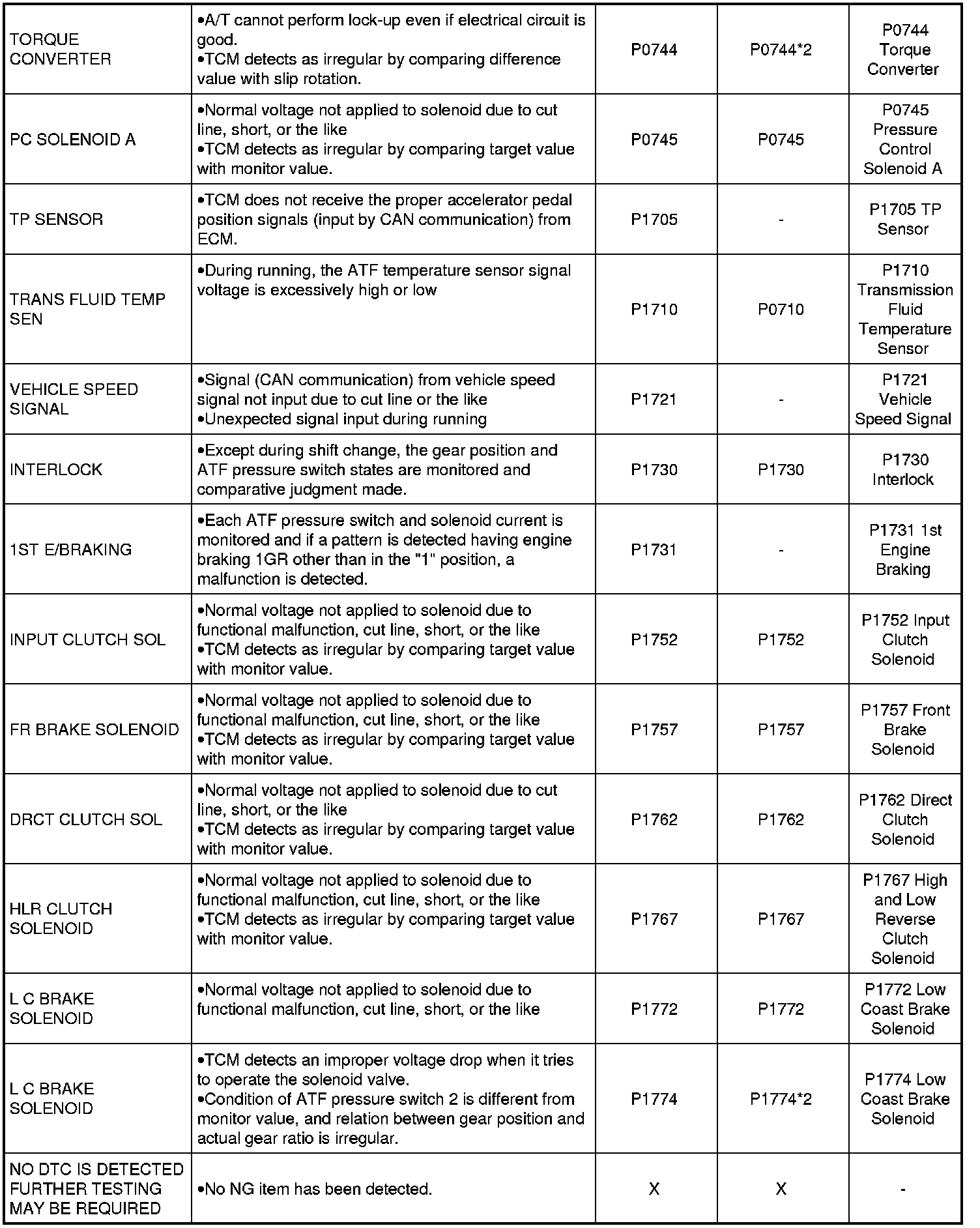

Display Items List

X: Applicable, -: Not applicable













*1: Refer to Malfunction Indicator Lamp (MIL).

*2:These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.

Data List Mode

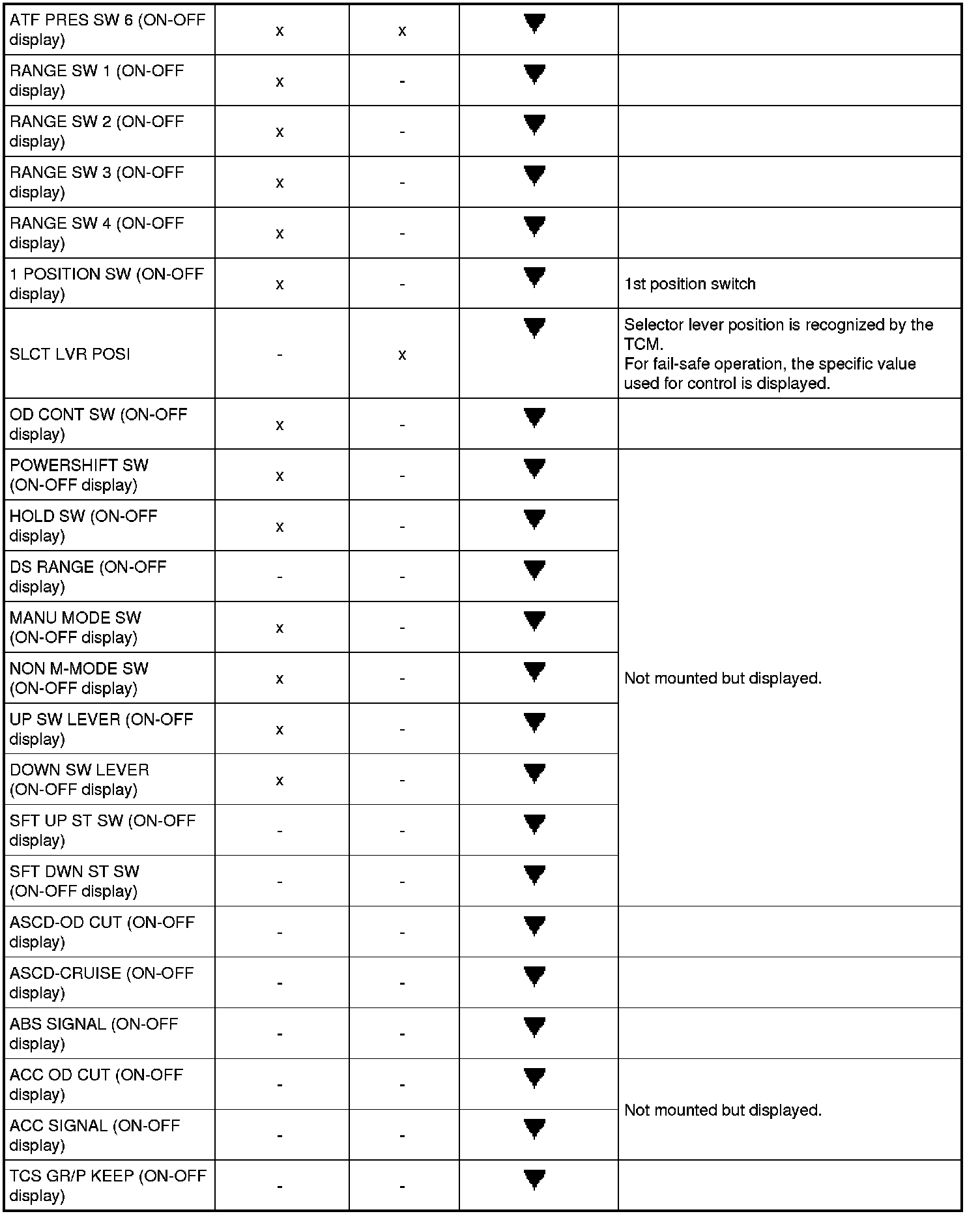

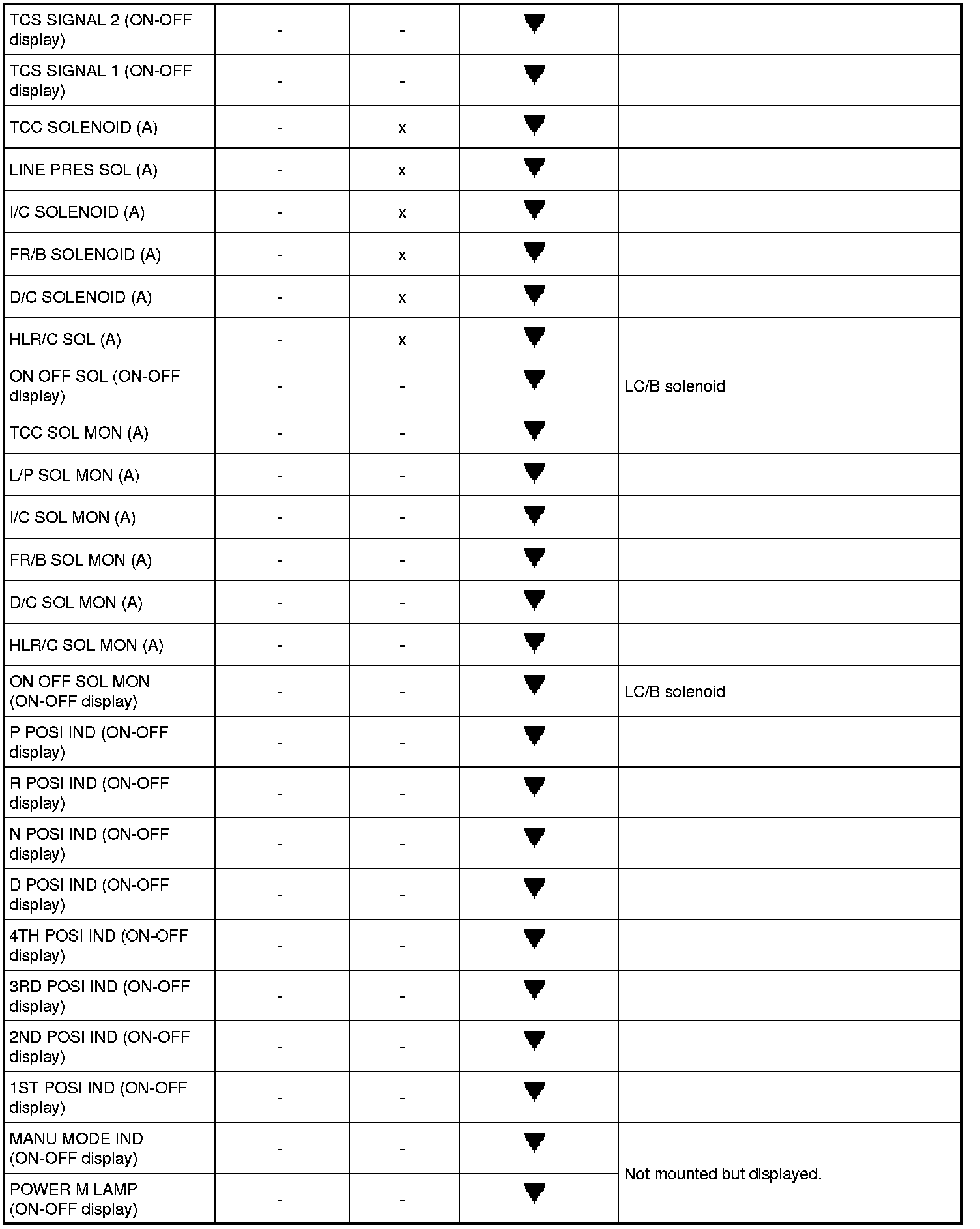

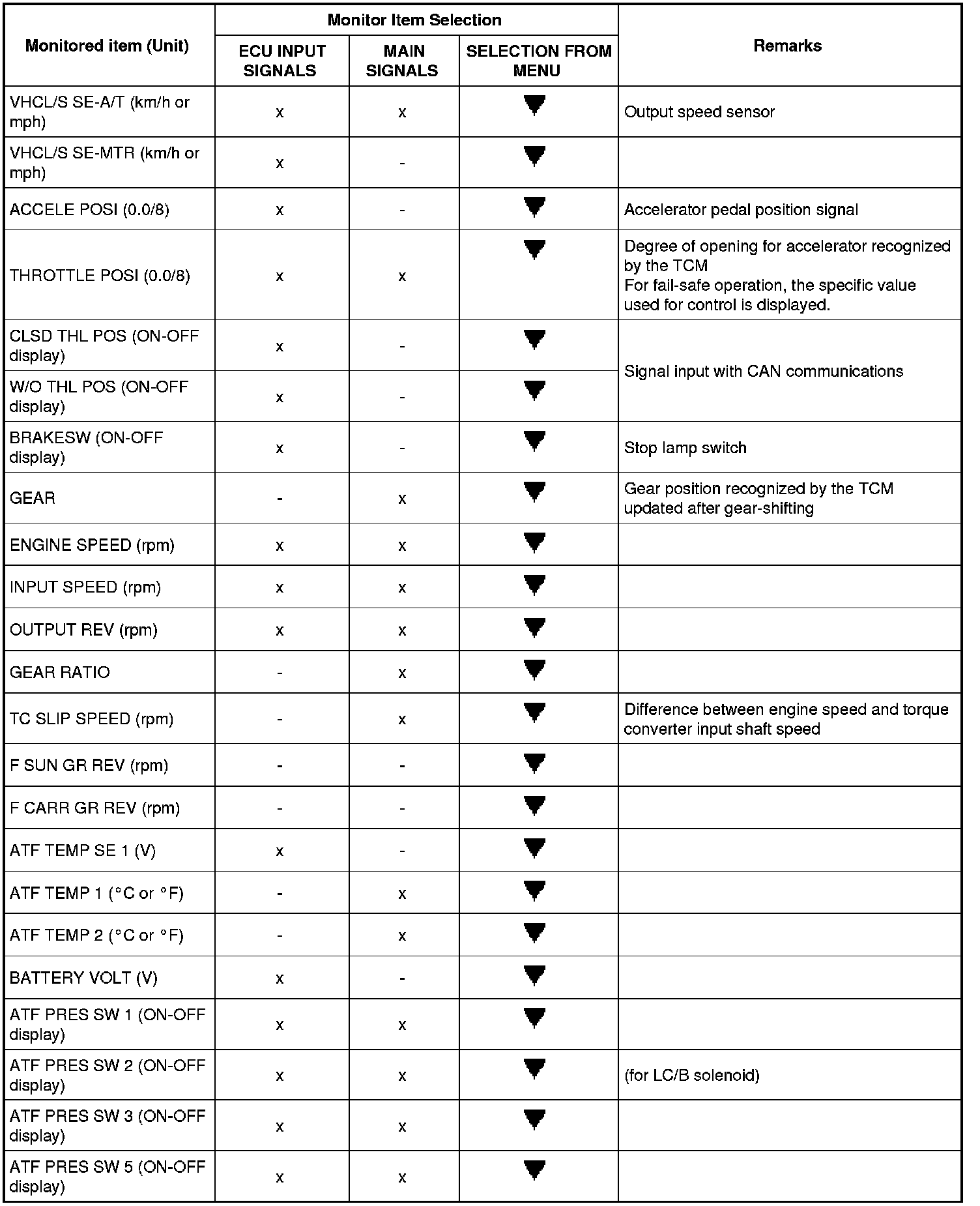

Display Items List

x: Standard, -: Not applicable,: Option


















Utility (Readiness Test / DTC Work Support)

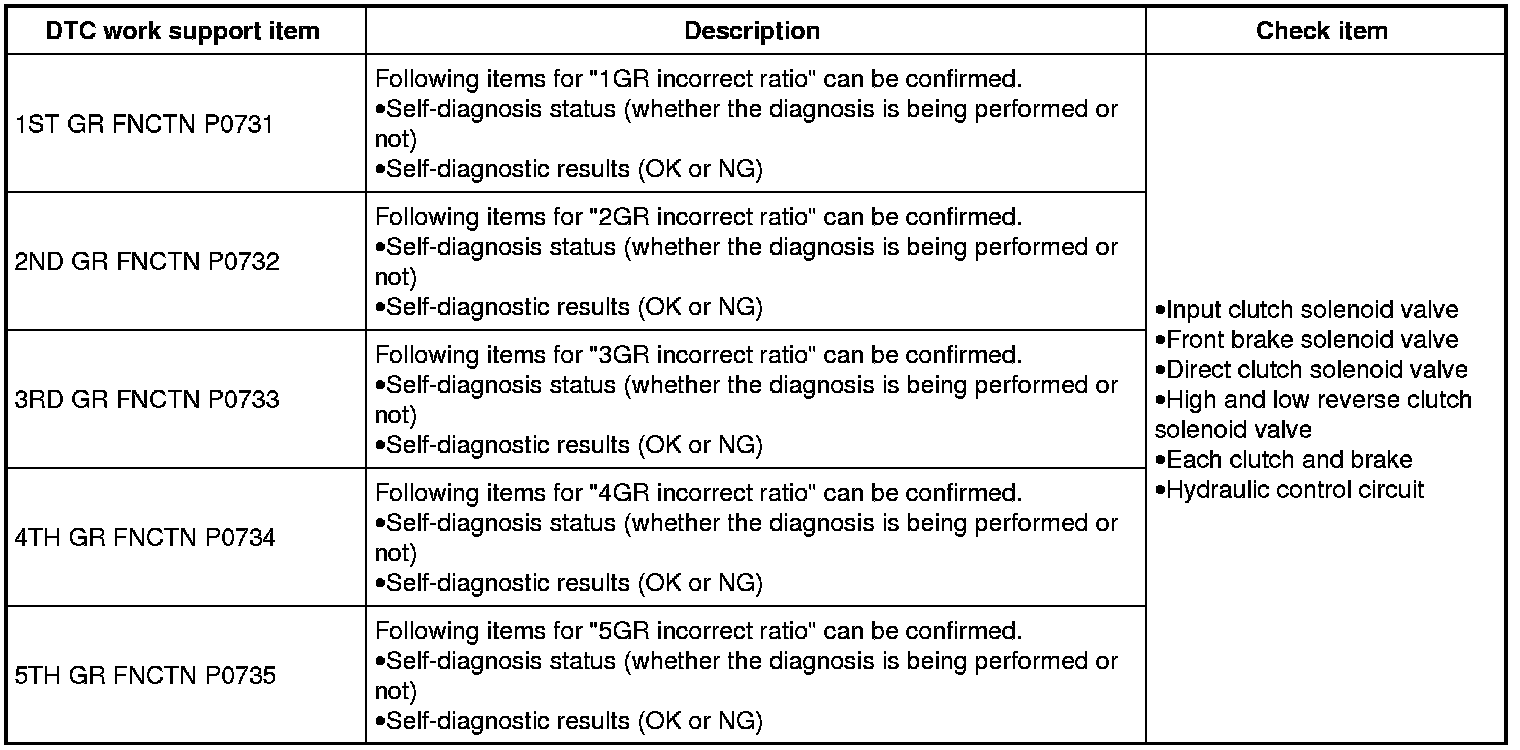

DTC Work Support Mode
