Connecting Rod, Engine

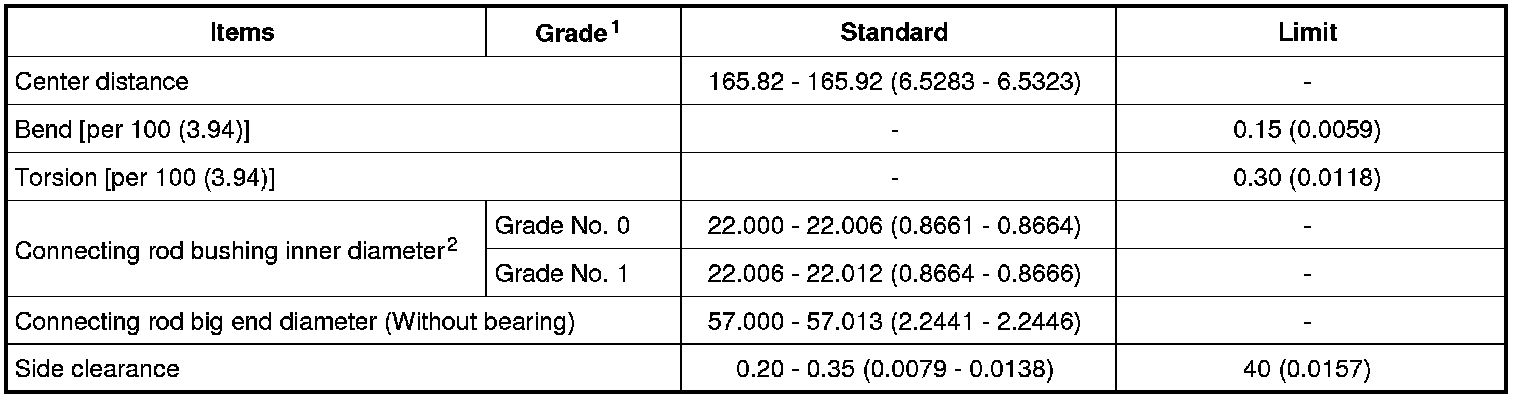

Connecting Rod

Unit: mm (in)






1: Always check with the Parts Department for the latest parts information.

2: After installing in connecting rod




Tighten connecting rod bolts as follows:
a) Apply engine oil to the threads and seats of connecting rod bolts.
b) Tighten connecting rod bolts.

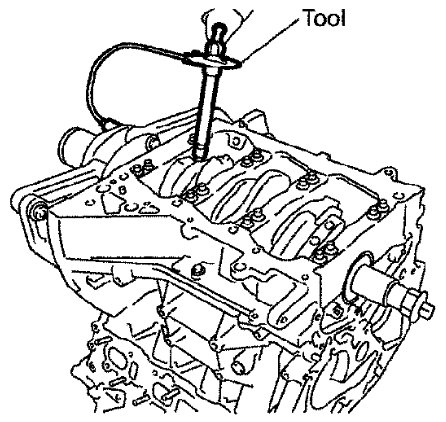

c) Then tighten all connecting rod bolts 90° clockwise.






CAUTION:
Always use Tool. Avoid tightening based on visual check alone.
