Engine Lubrication

Service Data and Specifications

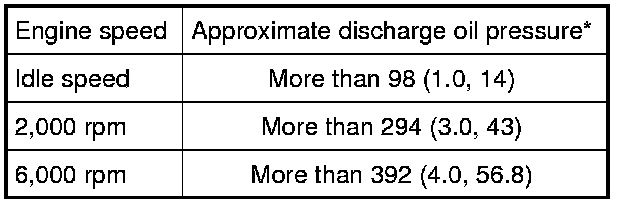

Oil Pressure

Unit: kPa (kg/cm2
, psi)





*: Engine oil temperature at 80 °C (176 °F)

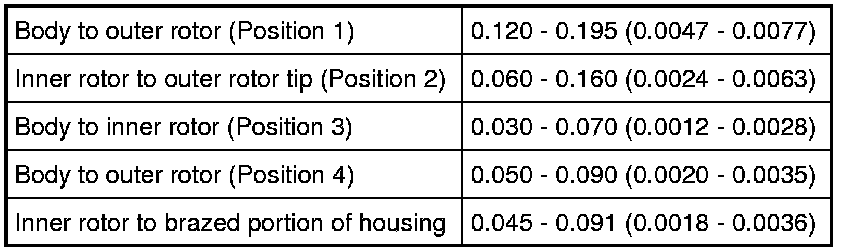

Oil Pump

Unit: mm (in)






Regulator Valve

Unit: mm (in)

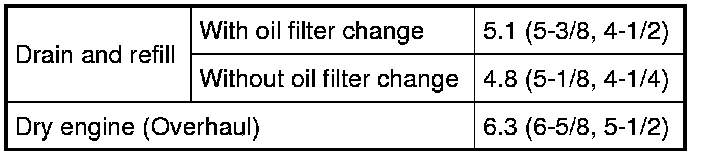

Engine Oil Capacity (Approximate)

Unit: (US qt, Imp qt)
