Manual Transmission/Transaxle

Service Data and Specifications

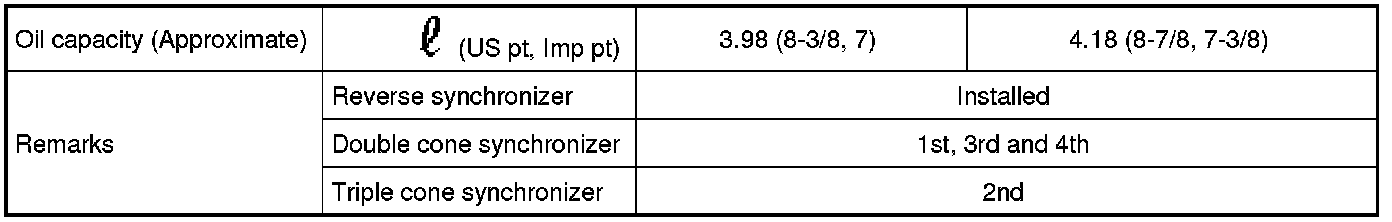

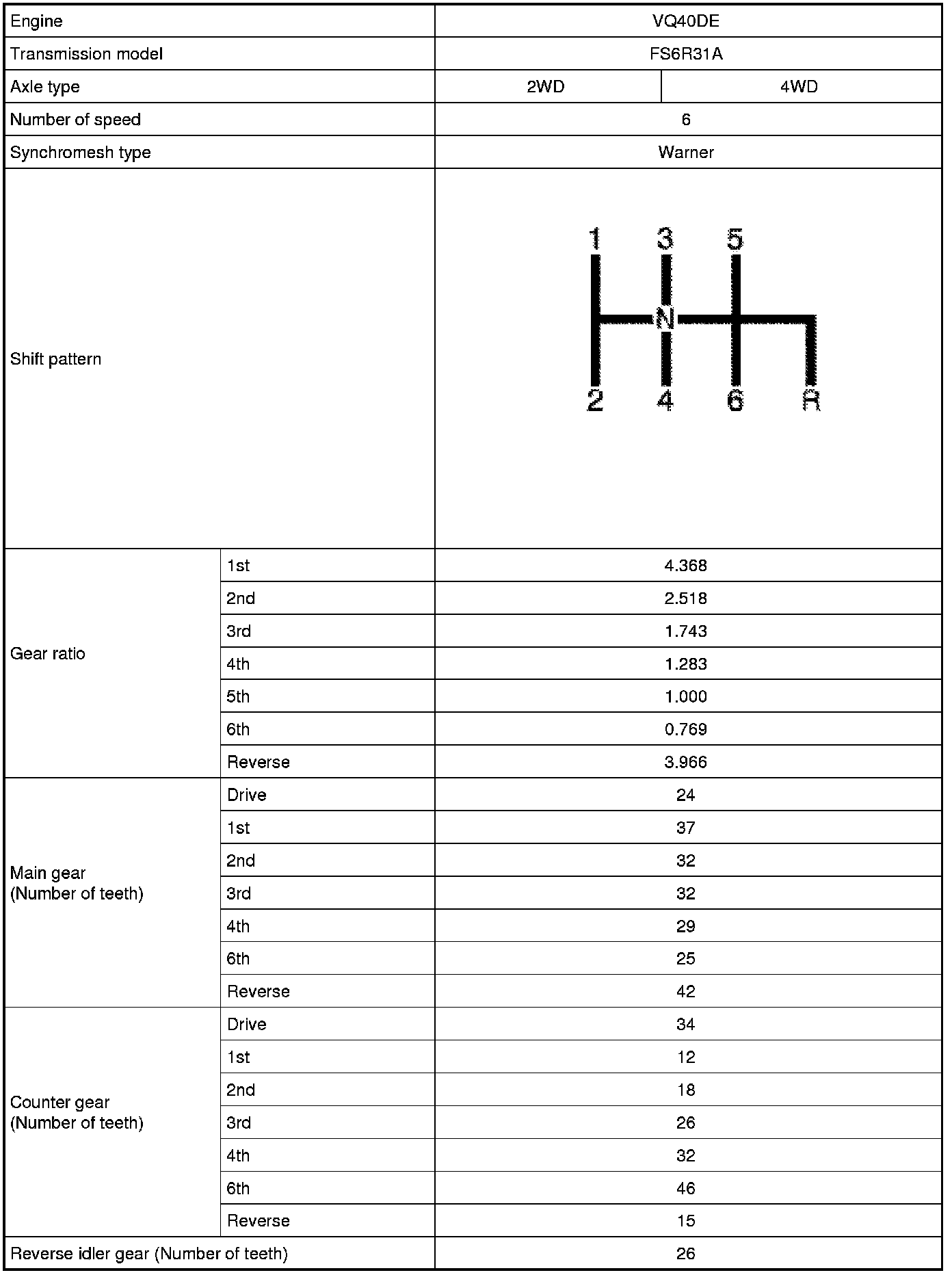

General Specification

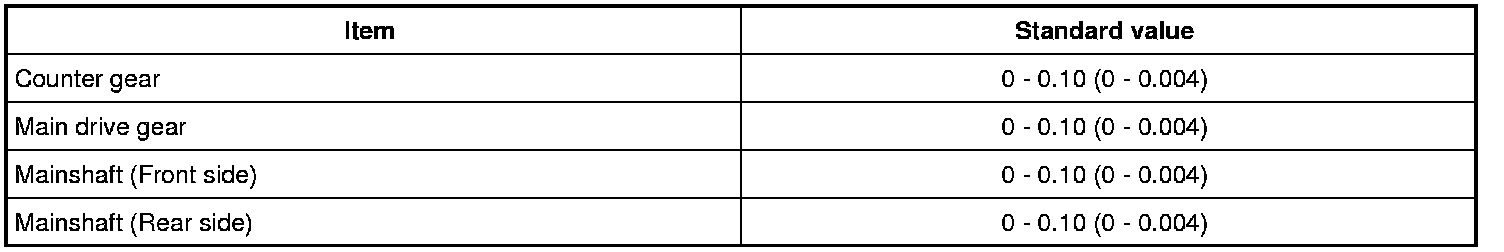

Gear End Play

Unit: mm (in)

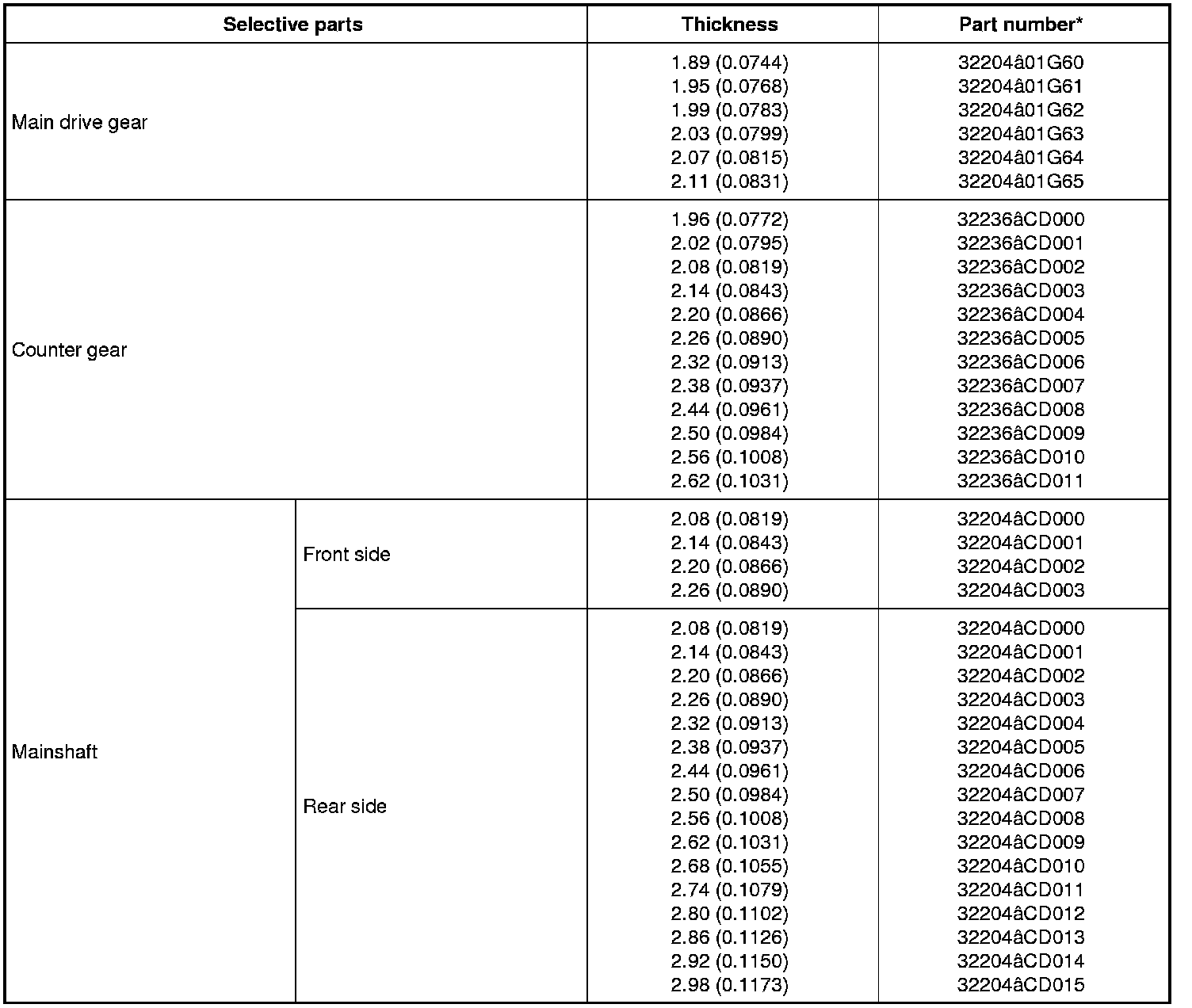

Snap Rings

Unit: mm (in)






*: Always check with the Parts Department for the latest parts information.

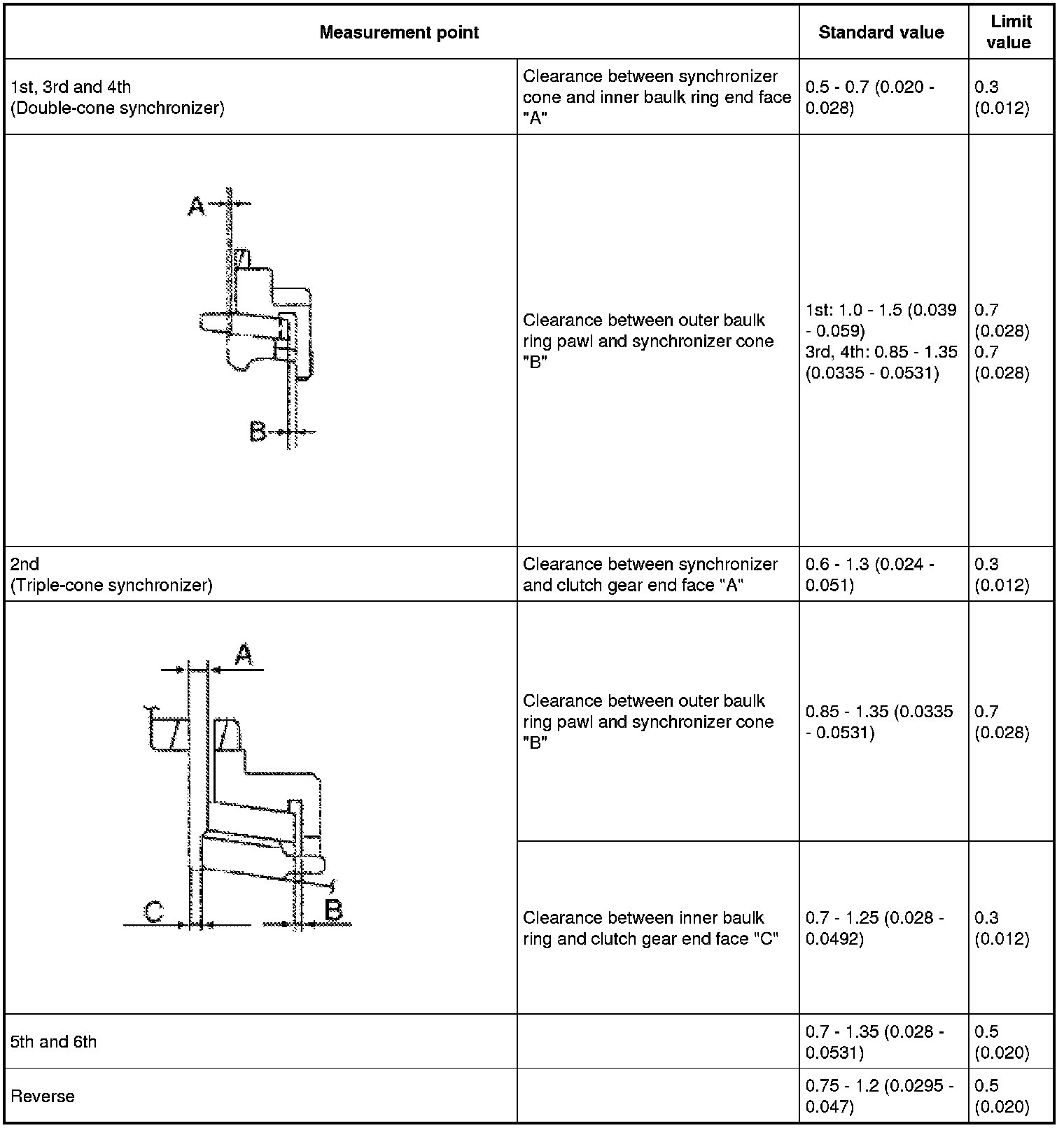

Baulk Ring Clearance

Unit: mm (in)
