Transfer Case




Service Data and Specifications

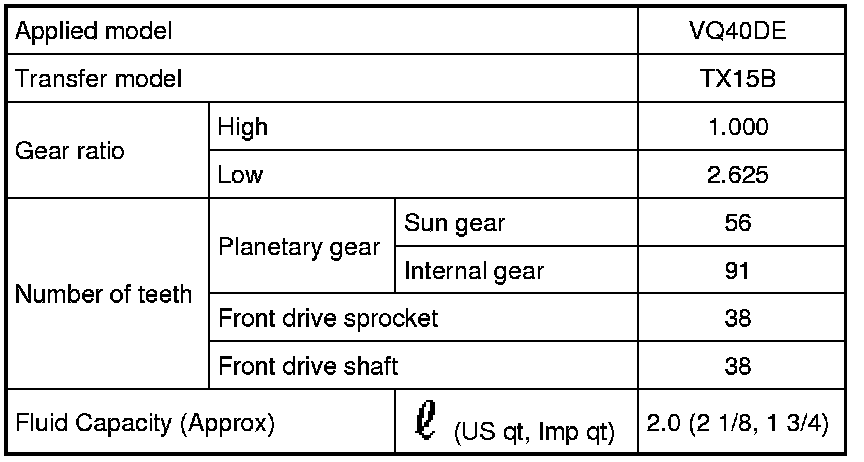

General Specification






Inspection and Adjustment

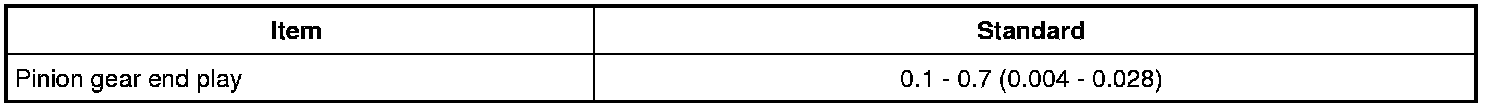

Pinion Gear End Play

Unit: mm (in)

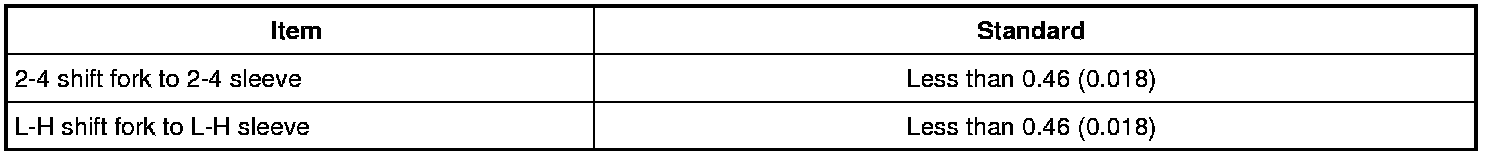

Clearance Between Shift Fork and Sleeve

Unit: mm (in)
