Filament Check

When measuring voltage, wrap tin foil around the top of the negative probe. Then press the foil against the wire with your finger.

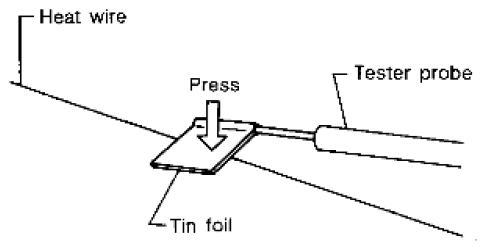

Fig 1: Pressing Foil Against Wire
Courtesy of SUZUKI OF AMERICA CORP.
Attach probe circuit tester (in Volt range) to middle portion of each filament.

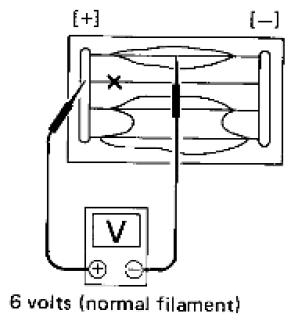

Fig 2: Attaching Probe Circuit Tester To Middle Portion Of Filament
Courtesy of SUZUKI OF AMERICA CORP.
If a filament is burned out, circuit tester registers 0 or battery voltage.

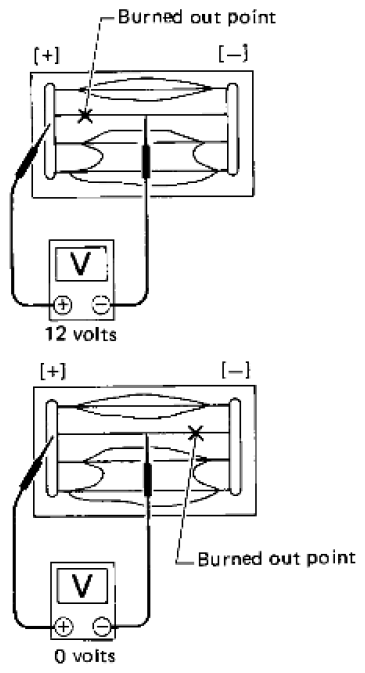

Fig 3: Checking Voltage Between Wires
Courtesy of SUZUKI OF AMERICA CORP.
To locate burned out point, move probe to left and right along filament. Test needle will swing abruptly when probe passes the point.
