Power Window Main Switch: Removal and Installation: Removal

Using a suitable tool, release the metal clip and pawls, then lift upward the main power window/door lock switch and finisher (2) - LH as an assembly.

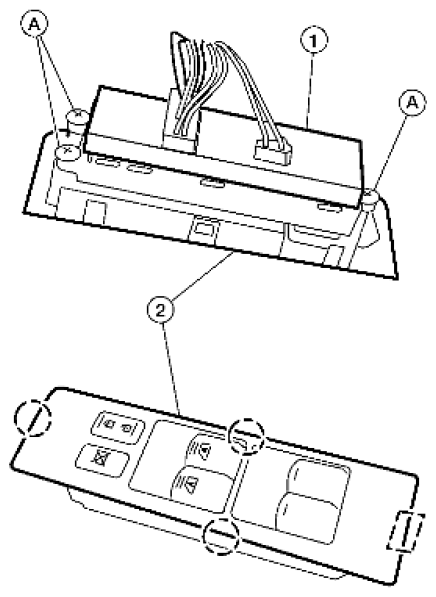

Fig 1: Identifying Power Window Main Switch, Finisher And Screws
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Wrap a cloth around suitable tool to protect components from damage.
Disconnect the harness connectors.
Remove the main power window/door lock switch and finisher (2) - LH assembly from the front door finisher.
Remove the three screws (A) from the main power window/door lock switch (1) - LH.
Remove the main power window/door lock switch (1) - LH from the main power window/door lock switch finisher (2) - LH.
