Relay Control System: System Diagram

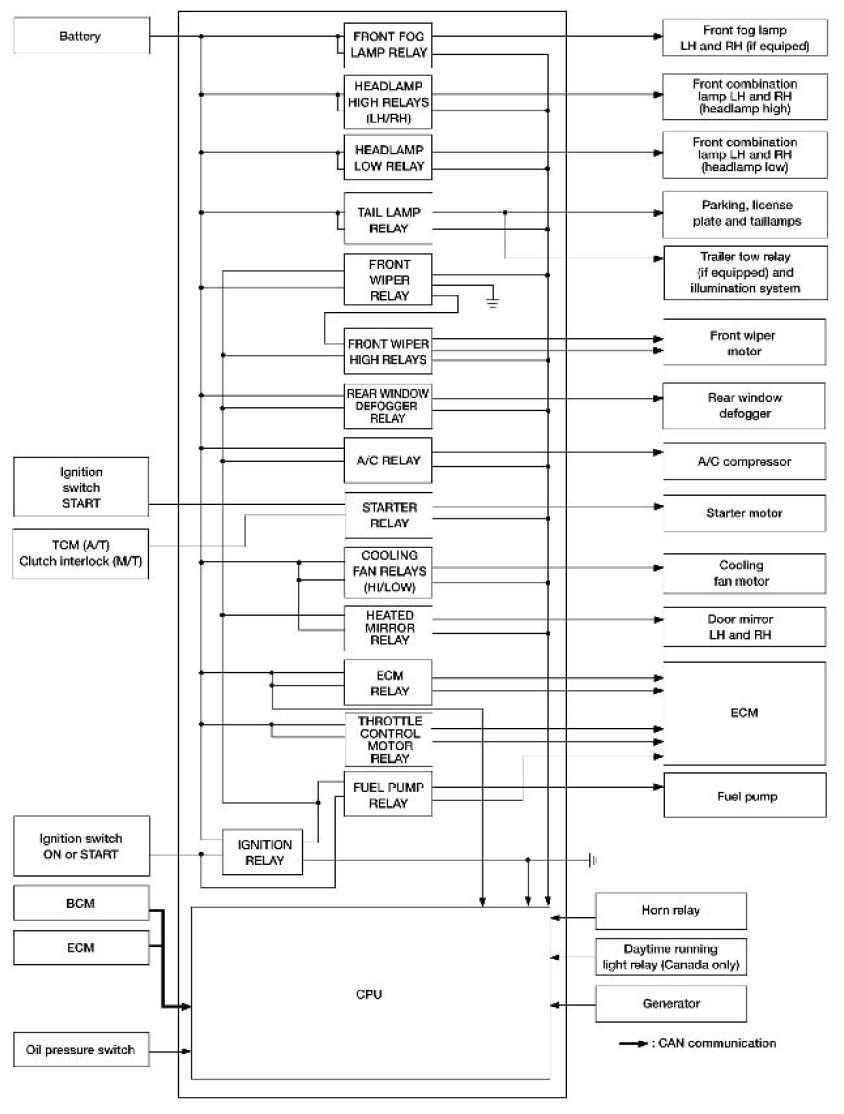

Fig 1: Relay Control System - System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
