Main Harness

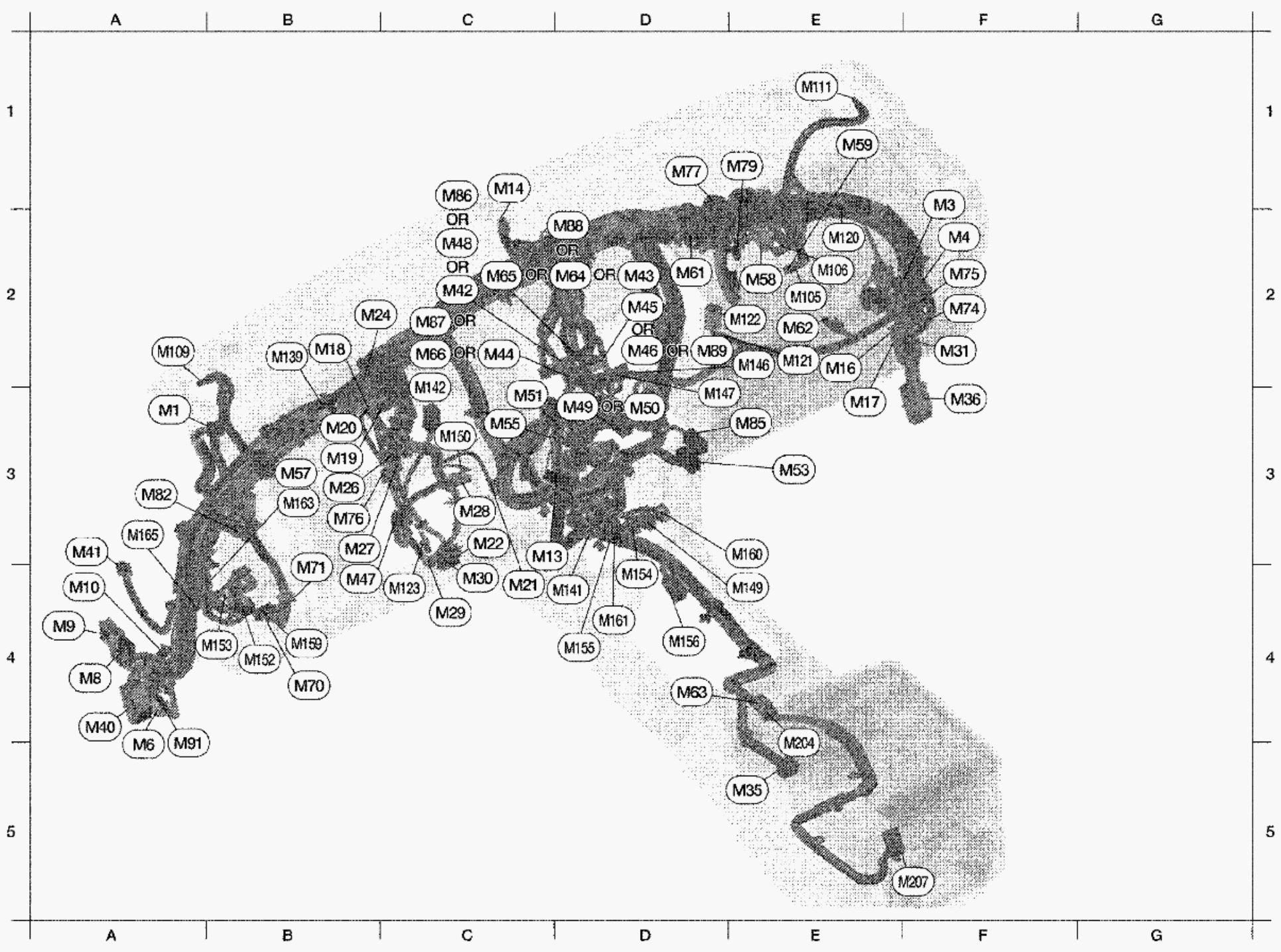

Fig 1: Identifying Main Harness

Courtesy of SUZUKI OF AMERICA CORP.

MAIN HARNESS REFERENCE CHART

A3	M1	W/24	: To R1	C2	M65	W/6	: Audio unit (with premium audio system crew cab)
F1	M3	W/8	: Fuse block (J/B)	B5	M68	V/1	: To M250
F2	M4	W/16	: Fuse block (J/B)	B4	M70	W/26	: Differential lock control unit
A5	M6	W/6	: To E10	B4	M71	W/6	: Cargo lamp switch
A4	M8	BR/12	: To D2	F2	M74	W/16	: To D102
A4	M9	W/16	: To D1	F2	M75	W/12	: To D101
A4	M10	Y/4	: To E29	B3	M76	W/6	: Electric brake (pre-wiring)
C3	M13	BR/3	: Front passenger air bag OFF indicator	D1	M77	Y/4	: Electric brake (pre-wiring)
C1	M14	B/4	: Optical sensor	E1	M79	-	: Electric brake (pre-wiring)
E2	M16	W/12	: To B162	A3	M82	W/2	: Circuit breaker-2
E3	M17	W/16	: To B163	E3	M85	W/4	: Aux in jack
B2	M18	W/40	: BCM (body control module)	A4	M91	W/16	: To E26
B3	M19	W/15	: BCM (body control module)	E2	M105	Y/2	: Front passenger air bag module
B3	M20	B/15	: BCM (body control module)	E2	M106	O/2	: Front passenger air bag module
C4	M21	W/4	: Immobilizer system antenna amp.	E2	M107	BR/2	: Front tweeter LH (crew cab with premium audio system)
C3	M22	W/16	: Data link connector	E1	M108	BR/2	: Front tweeter RH (crew cab with premium audio system)
B2	M24	W/40	: Combination meter	A2	M109	BR/2	: Front tweeter LH (crew cab with base audio system)
B3	M26	W/6	: Ignition switch	B2	M110	BR/2	: Front tweeter LH (king cab with premium audio system)
B3	M27	W/2	: Key switch	E1	M111	BR/2	: Front tweeter RH (crew cab with base audio system)
C3	M28	W/16	: Combination switch	E2	M112	BR/2	: Front tweeter RH (king cab with premium audio system)
C4	M29	Y/6	: Combination switch	E2	M120	W/4	: Remote keyless entry receiver
C4	M30	GR/8	: Combination switch	E2	M121	W/4	: Variable blower control (front)
F2	M31	SMJ	: To E152	E2	M122	W/4	: Front blower motor resistor
E5	M35	Y/28	: Air bag diagnosis sensor unit	C4	M123	W/2	: Tire pressure warning check connector
F3	M36	SMJ	: To B149	A3	M129	B/2	: Satellite radio tuner or pre-wire for satellite radio tuner
A4	M40	SMJ	: To B69	B2	139	B/2	: Doide-6
A3	M41	W/16	: Satellite radio tuner or Pre-wiring for satellite radio tuner	D4	M141	GR/8	: 4WD shift switch
C2	M42	W/12	: Audio unit (king cab with premium audio system)	C3	M142	B/6	: Mode door motor
C2	M43	W/20	: Audio unit (with base audio system)	E2	M146	GR/2	: Intake sensor
C2	M44	W/6	: Audio unit (king cab with premium audio system)	D2	M147	B/6	: Air mix door motor (without VBC)
D2	M46	W/16	: Audio unit (king cab with premium audio system)	E4	M149	W/6	: Differential lock mode switch
B4	M47	W/8	: Steering angle sensor	C3	M150	W/2	: Ignition keyhole illumination
C3	M48	W/12	: Audio unit (crew cab with premium audio system)	B4	M152	W/26	:Transfer control unit
D3	M49	B/26	: Front air control (without VBC)	B4	M153	W/24	: Transfer control unit
D3	M50	B/26	: Front air control (with VBC)	D4	M154	GR/6	: VDC off switch
C3	M51	W/8	: Front air control (without VBC)	D4	M155	W/8	: Hill descent control switch
E3	M53	B/3	: Front power socket	D4	M156	W/10	: A/T shift selector
C3	M55	W/4	: Hazard switch	B4	M159	W/16	: Door mirror remote control switch
B3	M57	-	: Body ground	E3	M160	BR/6	: Front heated seat switch RH
E2	M58	B/6	: Intake door motor	D4	M161	W/6	: Front heated seat switch LH
E1	M59	BR/2	: Glove box lamp	B3	M163	W/8	: Clutch interlock cancel switch
D2	M61	-	: Body ground	A3	M165	L/4	: Cargo lamp relay
E2	M62	B/2	: Front blower motor	Console sub-harness
D4	M63	W/6	: To M204	E5	M204	W/6	: To M63
D2	M64	W/10	: Audio unit (with premium audio system king cab)	F2	M207	B/3	: Console power socket
C2	M65	W/10	: Audio unit (crew cab with premium audio system)
