Fuel Tank: Removal and Installation: Notes

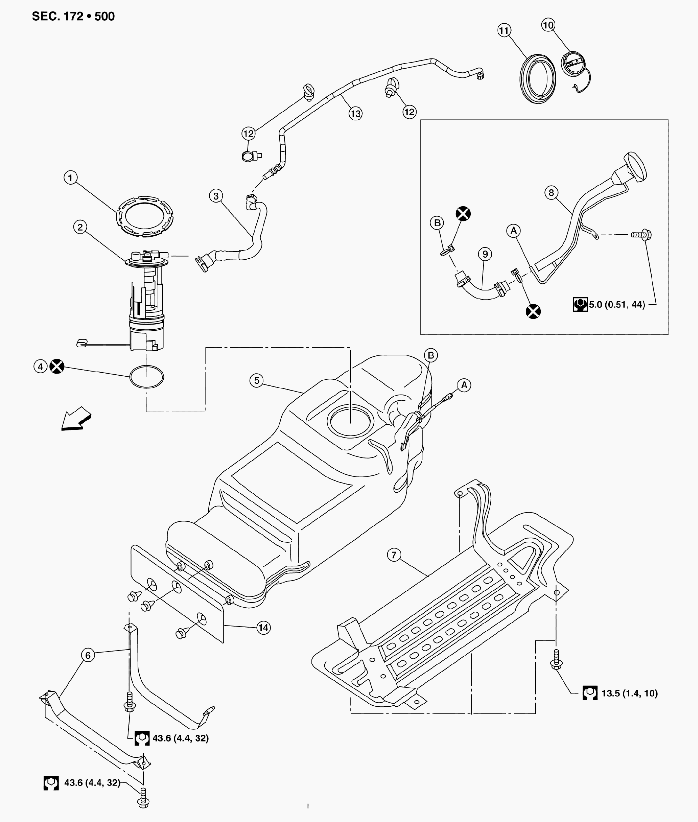

Fig 1: Identifying Fuel Tank Removal And Installation (1 of 2)
G00534194Courtesy of SUZUKI OF AMERICA CORP.

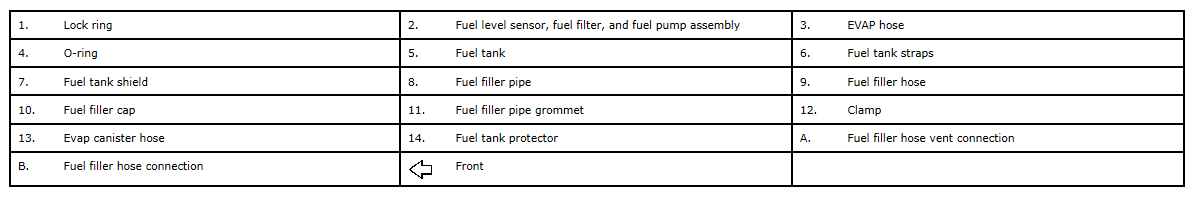

Fig 2: Identifying Fuel Tank Removal And Installation (2 of 2)
G00534195Courtesy of SUZUKI OF AMERICA CORP.
