Data Communication Component Views
WARNING:
This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

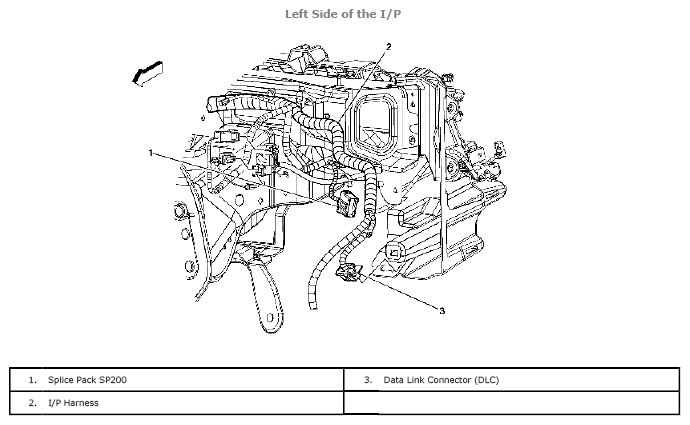

Fig 1: Data Communication Component Views - Left Side Of I/P
Courtesy of SUZUKI OF AMERICA CORP.

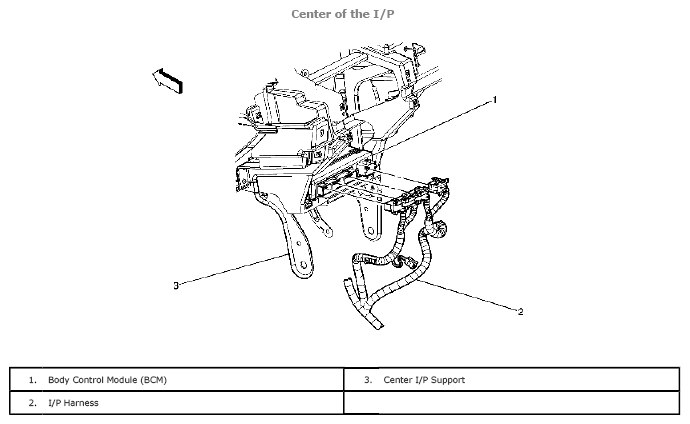

Fig 2: Data Communication Component Views - Centre Of I/P
Courtesy of SUZUKI OF AMERICA CORP.
