Clutch Release Mechanism: Exploded View [6M/T]

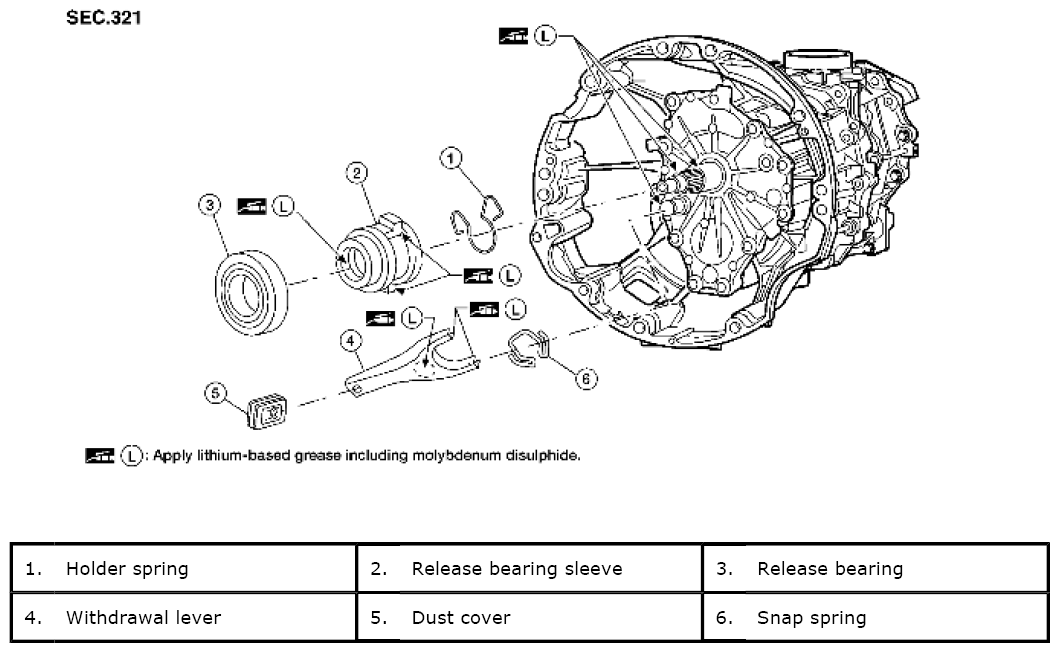

Fig 1: Exploded View Of Clutch Release Mechanism (6M/T)
G06445791Courtesy of SUZUKI OF AMERICA CORP.
