Clutch Pedal

CLUTCH PEDAL SPECIFICATION CHART

Unit: mm (in)

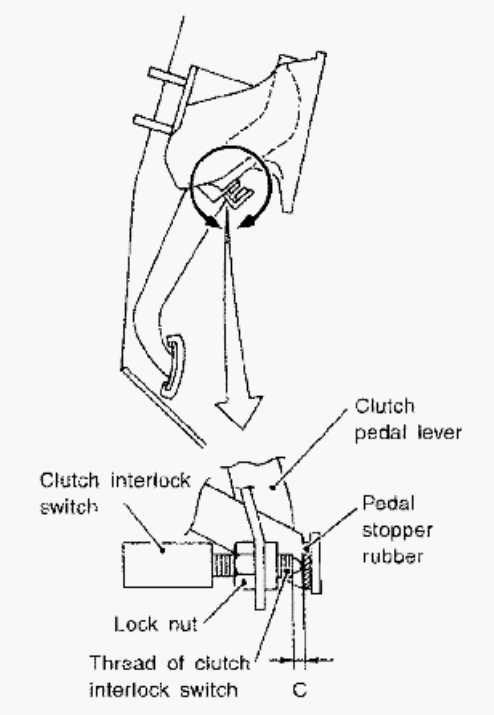

G00518840
Clearance "C" between pedal stopper rubber and clutch interlock switch threaded while clutch pedal is fully depressed. 0.1 - 1.0 (0.004 - 0.039)
