Oil Channel

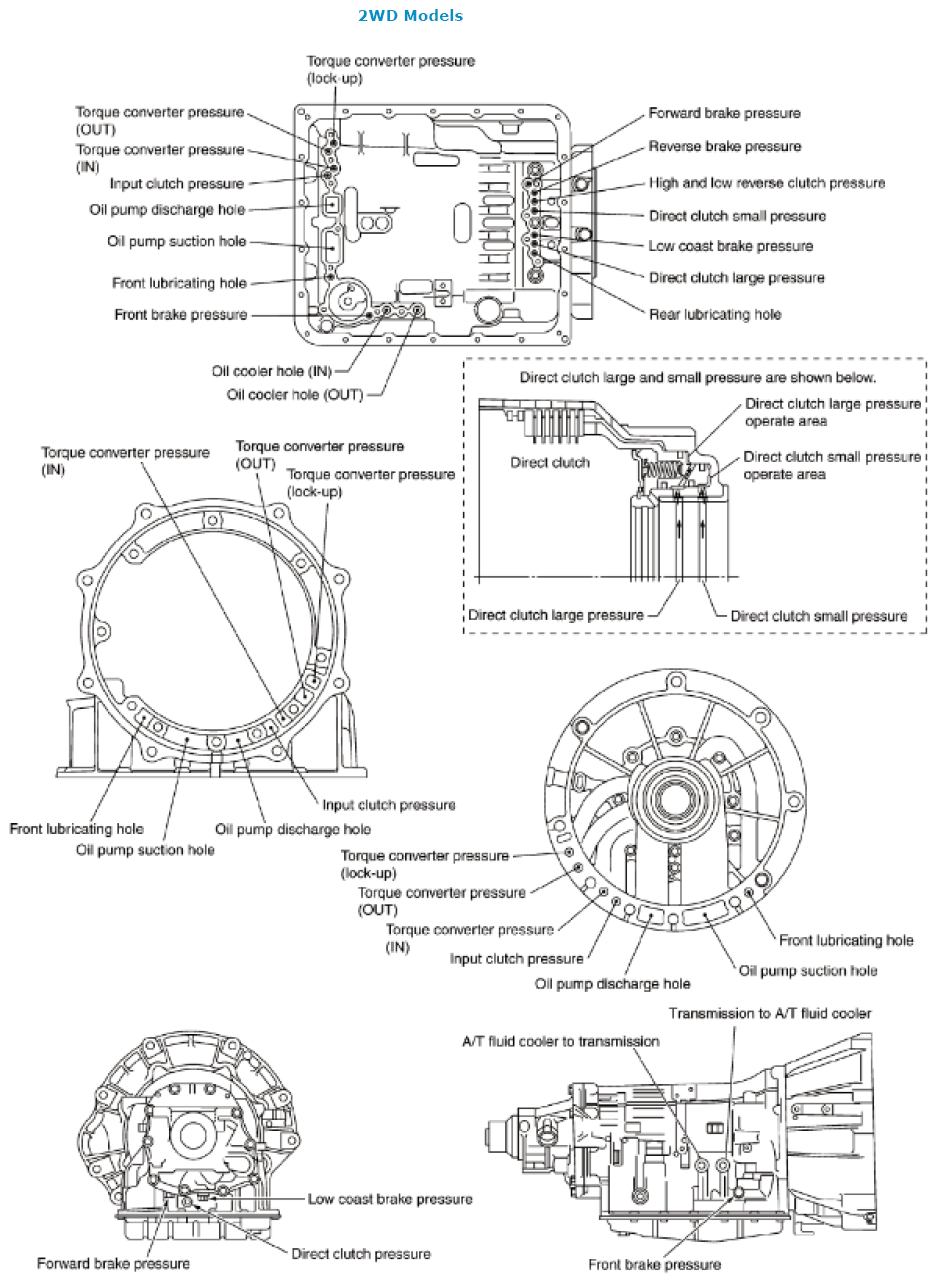

Fig 1: Identifying Oil Channel - 2WD Models
Courtesy of SUZUKI OF AMERICA CORP.

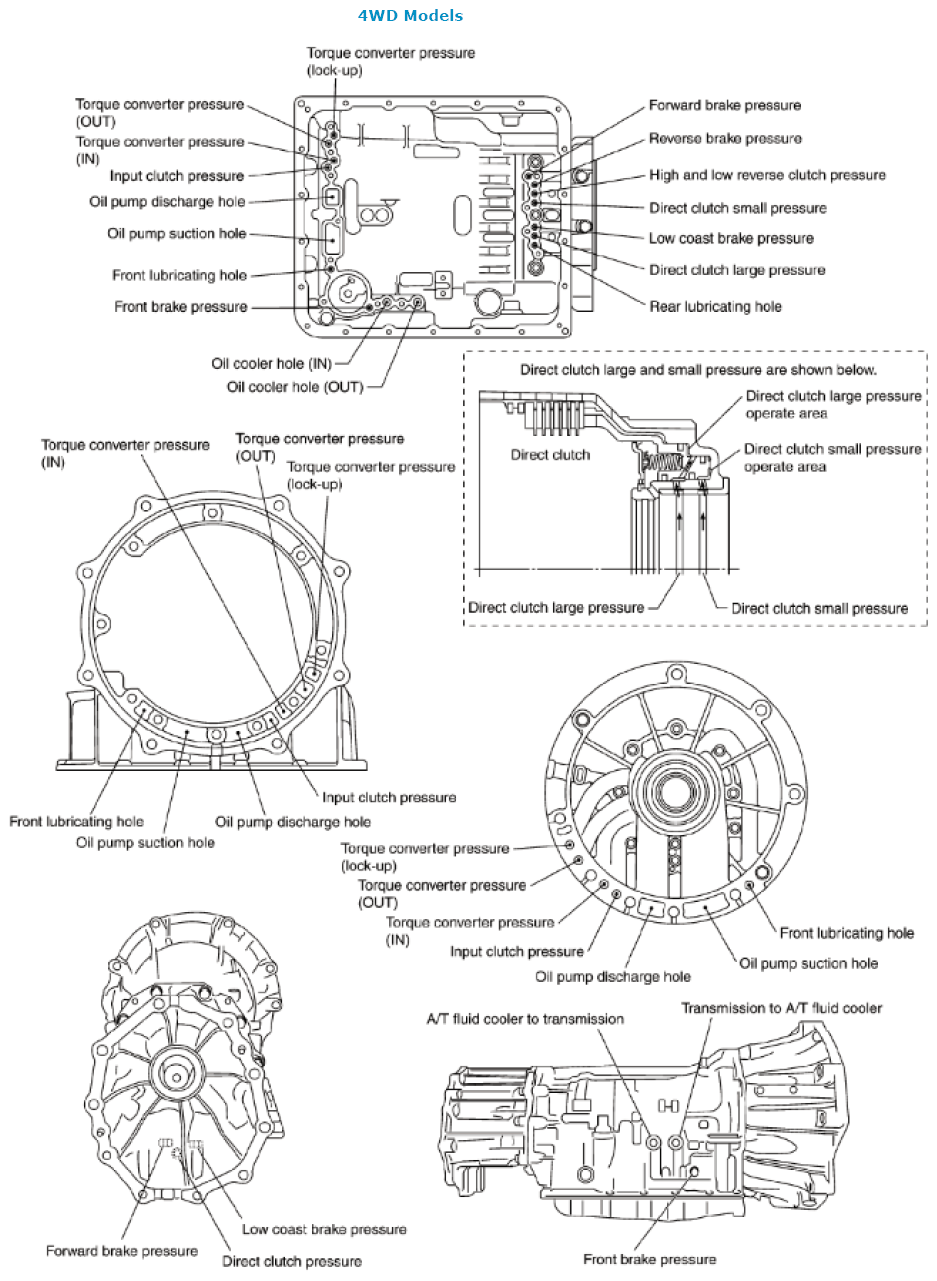

Fig 2: Identifying Oil Channel - 4WD Models
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
