A/T Control System: Shift Mechanism: Construction

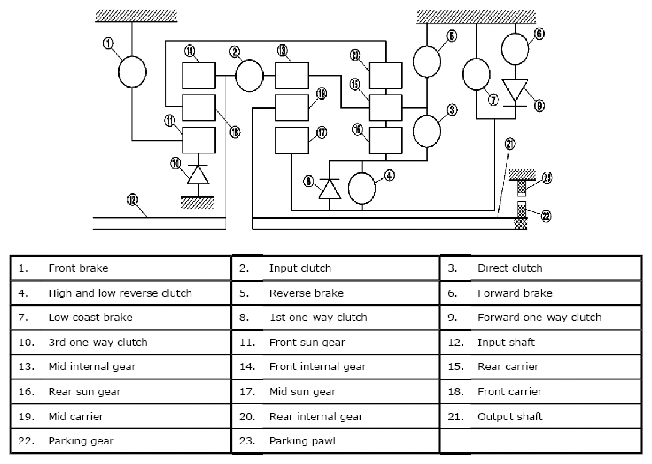

Fig 1: A/T Control System - Shift Mechanism Diagram
G06442773Courtesy of SUZUKI OF AMERICA CORP.
