Shift Control System: Exploded view

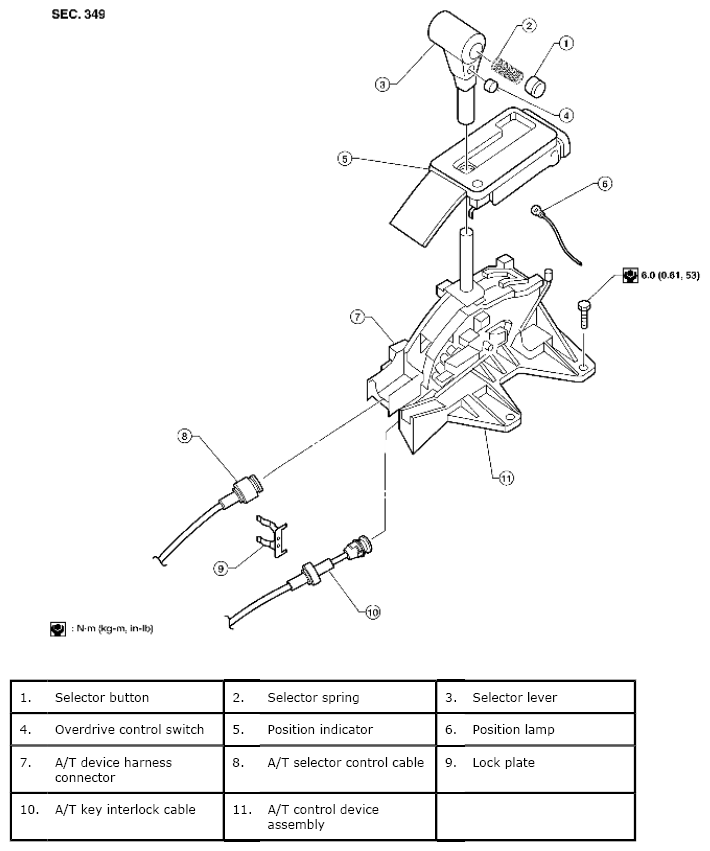

Fig 1: Exploded View Of Shift Control System
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
