Transmission Assembly Exploded View

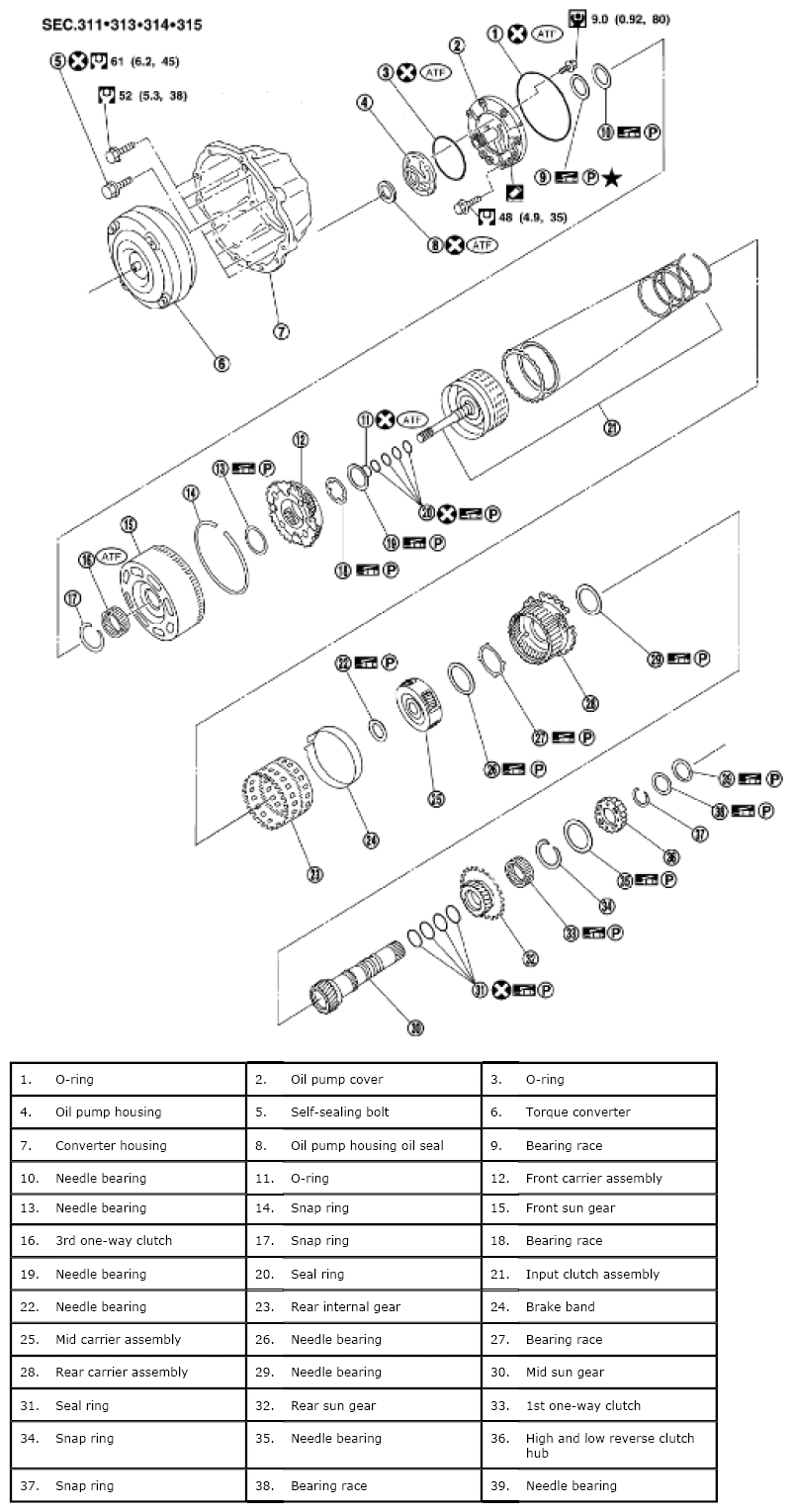

Fig 1: Exploded View Of Transmission Assembly
Courtesy of SUZUKI OF AMERICA CORP.

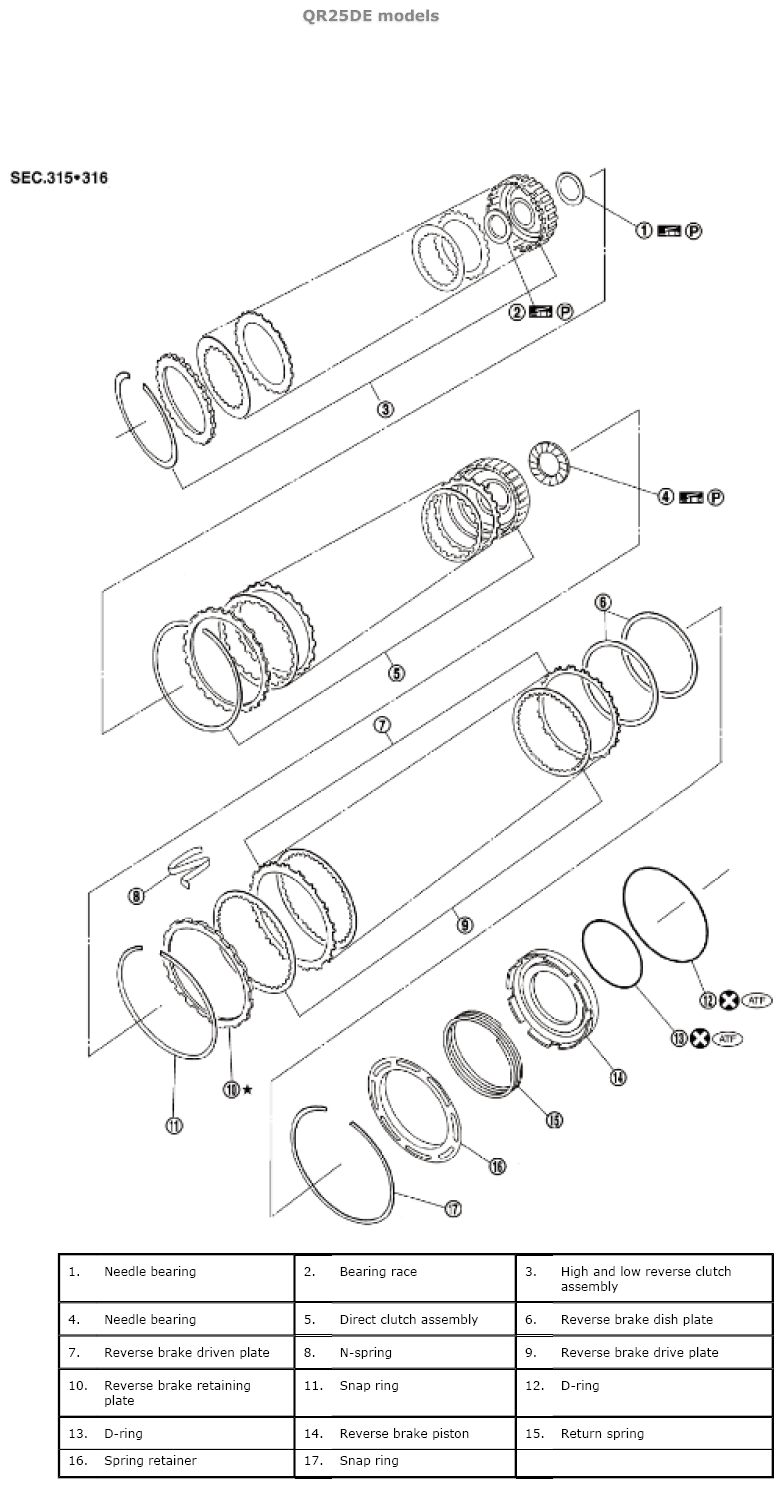

Fig 2: Exploded View Of Transmission Assembly (QR25DE Models)
Courtesy of SUZUKI OF AMERICA CORP.

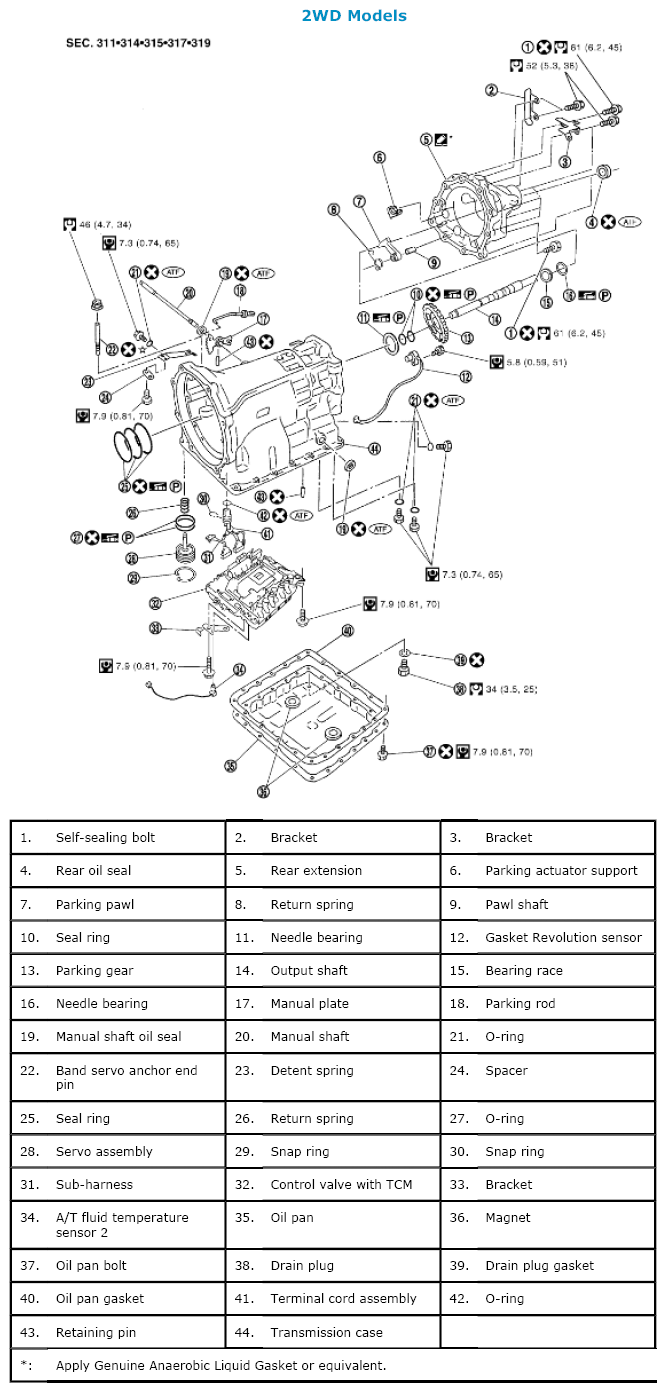

Fig 3: Exploded View Of Transmission Assembly (2WD Models)
Courtesy of SUZUKI OF AMERICA CORP.

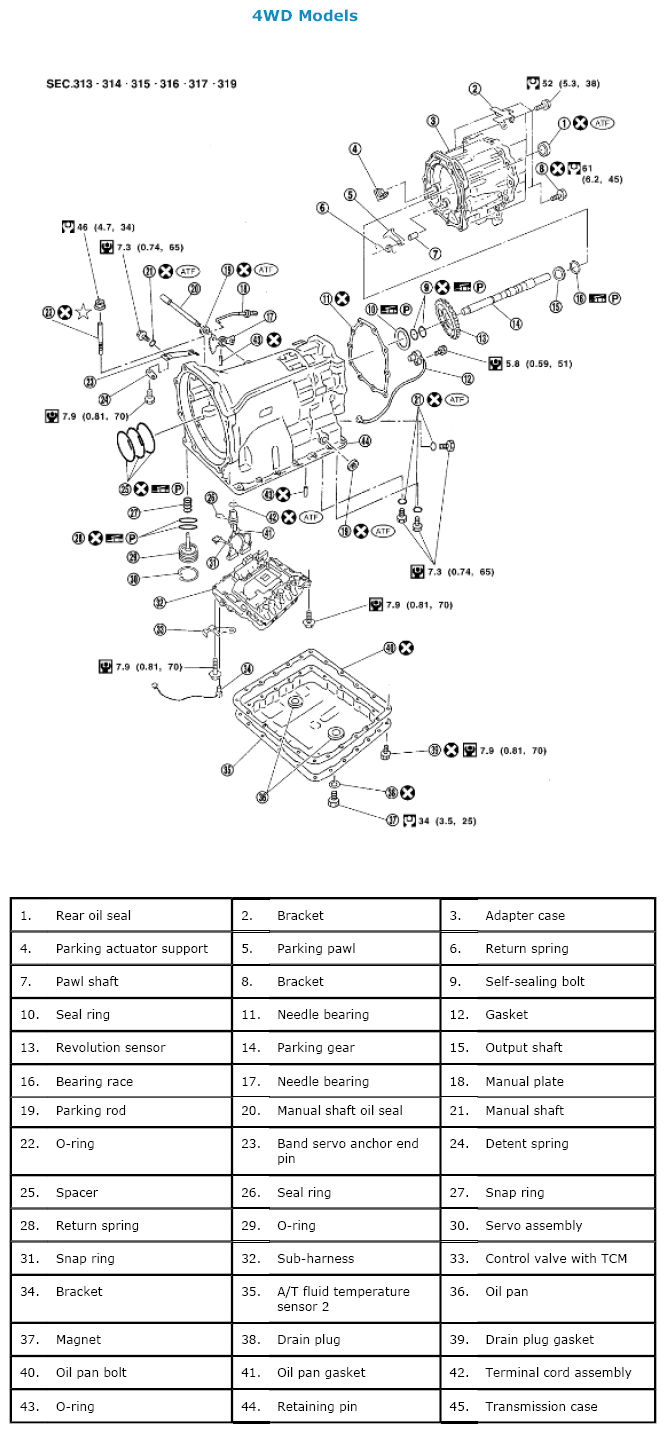

Fig 4: Exploded View Of Transmission Assembly (4WD Models)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
